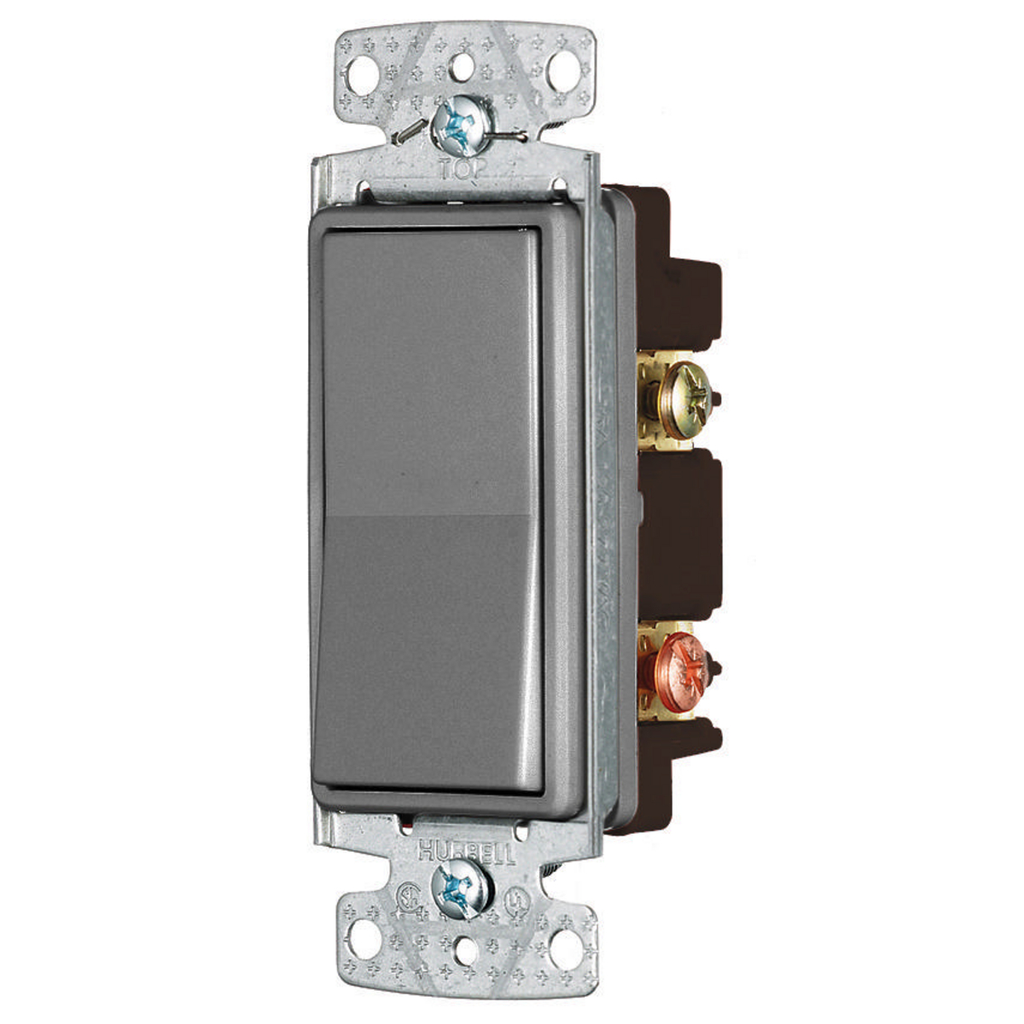

TradeSelect Rocker Double Pole Switch 15A 120/277V AC Gray

This TradeSelect rocker switch is designed for residential wiring devices, providing reliable control of lighting and electrical circuits. Suitable for use by electrical distributors and switchgear suppliers, it supports double pole switching with a 15A amperage rating at 120/277V AC. Its gray composite construction and screw mounting make it a durable and easy-to-install solution for indoor dry environments.

Specifications

• Application: Residential Wiring Devices
• Amperage Rating: 15A
• Voltage Rating: 120/277V AC
• Number of Poles: Double Pole
• Contact Configuration: 2 Position
• Contact Rating: Per UL 20
• Operating Cycles: 30,000 Cycles
• Operating Temperature: Max Continuous 60°C, Minimum -20°C Without Impact
• Environmental Conditions: Indoor Dry unless protected by additional means
• Material: Composite
• Color: Gray
• Mounting: Screw Mount
• Connection: Terminal Screw
• Width: 1.7 in
• Product Weight: 2.0 lbs
• Manufacturer: Hubbell Wiring Device-Kellems
• Country of Origin: China
• Manufacturer Part #: RSD215GY

Features

• Rocker actuator with positive snap action for reliable switching
• Durable composite material construction
• Designed for residential wiring applications
• Screw terminal connections for secure wiring
• Suitable for indoor dry environments

Downloads & Links

• Catalog Page Asset Reference
• Warranty Document Asset Reference
• Spec Sheet
• Installation Manuals Asset Reference
• Sales Drawing Asset Reference
• Catalog Full Asset Reference
