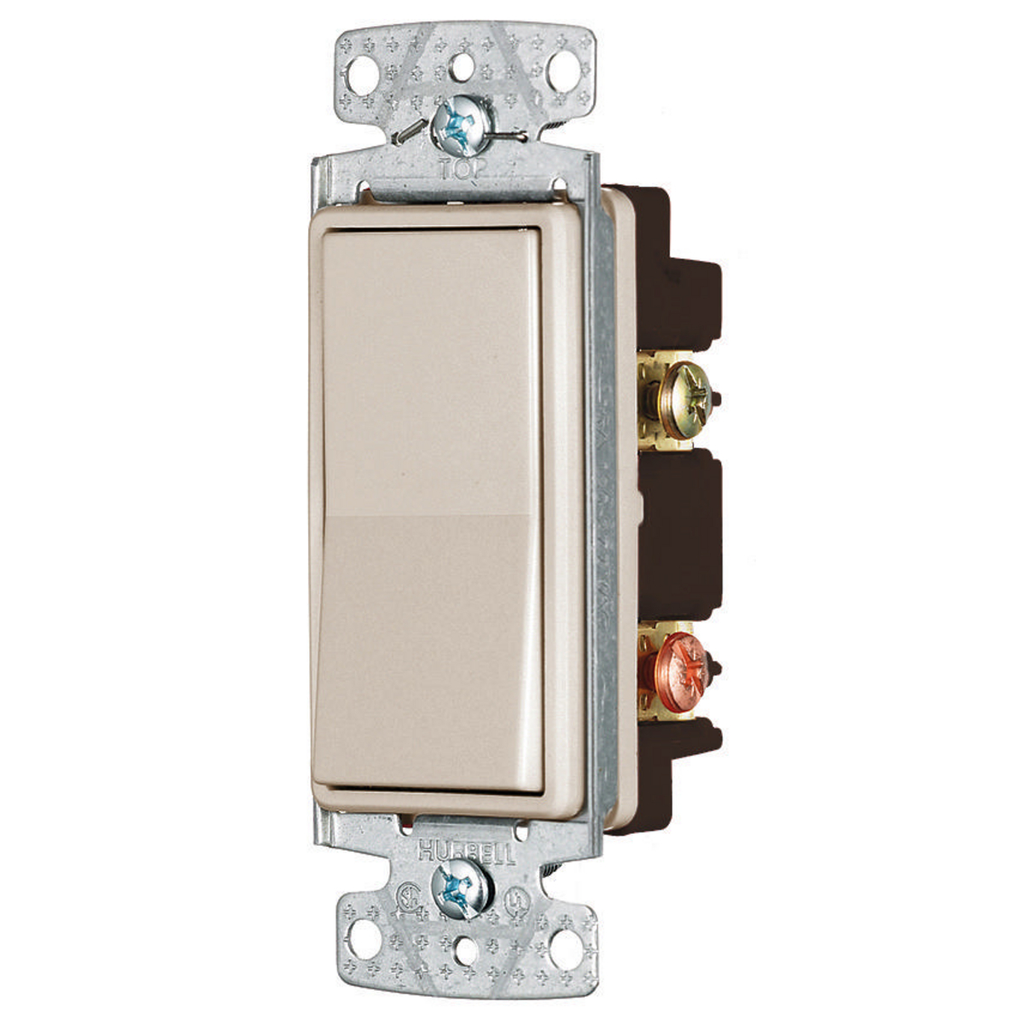

TradeSelect Rocker Double Pole Switch 15A 120/277V AC

This TradeSelect rocker switch is designed for electrical distribution and lighting control applications. It is a double pole switch rated for 15 amps at 120/277 volts AC, suitable for use by electrical distributors and switchgear suppliers managing wire and cable installations. The switch features an almond color finish and is manufactured by Hubbell Wiring Device-Kellems in South Korea.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: RSD215AL
• Rating: 15A, 120/277V AC
• Type: Double Pole Rocker Switch
• Color: Almond
• Dimensions: 4.1 in (Length) x 1.5 in (Width) x 1.3 in (Height)
• Product Weight: 0.2 lbs
• Country of Origin: South Korea

Features

• Rocker style actuator for smooth operation
• Double pole design for controlling two circuits simultaneously
• Compatible with standard wiring methods including back wiring and side wiring (solid or stranded copper conductors, #14 to #10 AWG)
• Grounding provision via green hex head screw on mounting strap
• Designed for installation by qualified personnel following national and local electrical codes

Downloads & Links

• Warranty Document Asset Reference
• Installation Manuals Asset Reference
• Sales Drawing Asset Reference
• Spec Sheet
• Catalog Full Asset Reference
