TradeSelect, Straight Blade, Single Receptacle, Weather Resistant, 20A 250V, 2-Pole 3-Wire Grounding, 6-20R, Brown
SKU: #150025
Part: #RR205WR
UPC: 883778302787
TradeSelect, Straight Blade, Single Receptacle, Weather Resistant, 20A 250V, 2-Pole 3-Wire Grounding, 6-20R, Brown
SKU: #150025
Part: #RR205WR
UPC: 883778302787
Description

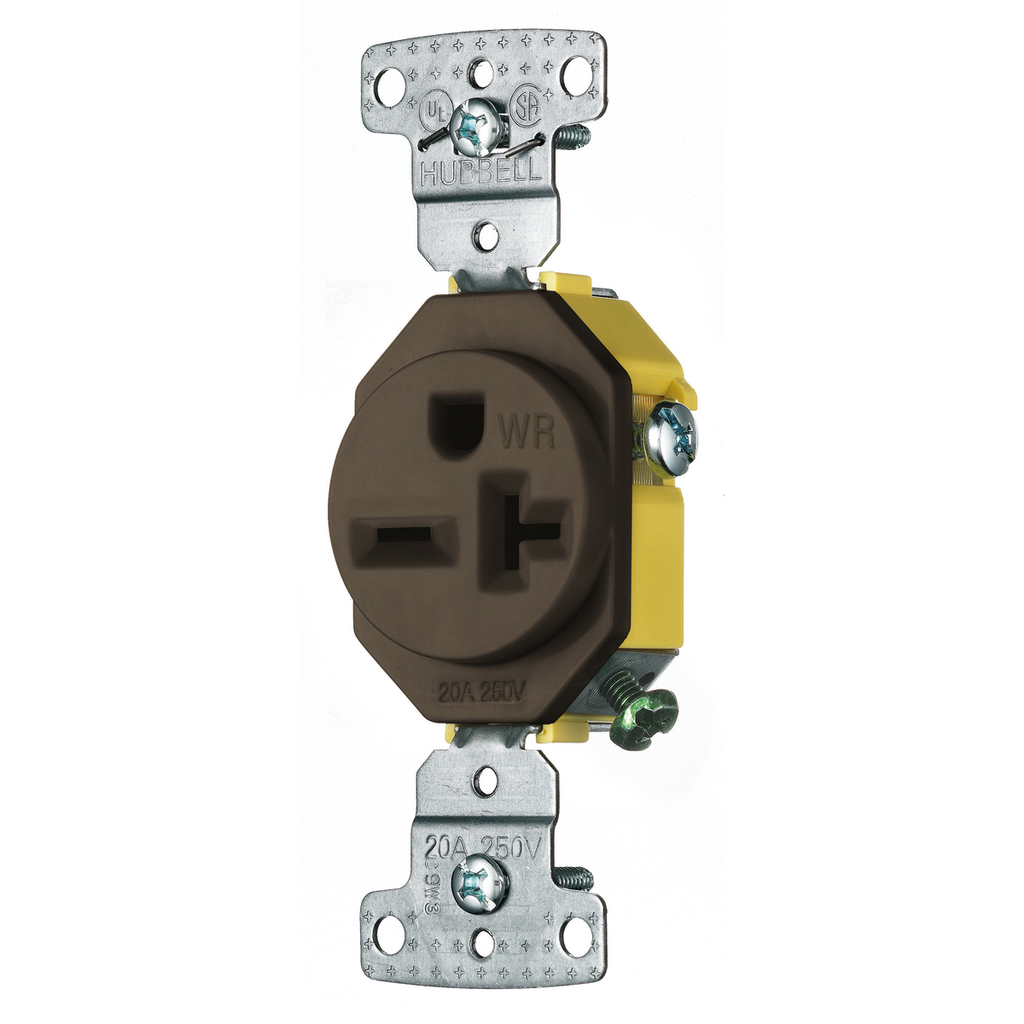

TradeSelect Single Receptacle 20A 250V Weather Resistant Electrical Outlet
This TradeSelect single receptacle is designed for residential receptacle applications, offering a weather resistant solution suitable for electrical distributors and lighting solutions providers. It supports 20 amperes at 250 volts, featuring a 2-pole, 3-wire grounding configuration with a NEMA 6-20R rating. The receptacle is constructed from durable thermoplastic and is side wired for secure connections, making it a reliable component for wire and cable installations and switchgear supplier inventories.
Specifications
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: RR205WR
- Application: Residential Receptacles
- Color: Brown
- Material: Thermoplastic
- Current: 20 amperes
- Amperage Rating: 20 A
- Voltage: 250 V
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire Grounding
- NEMA Rating: 6-20R
- Mounting: Screw Mount
- Connection: Side Wired
- Width: 1.620 in
- Product Weight: 0.1200 lbs
- Environmental Conditions: Weather Resistant
- Operating Temperature: 20°C to 60°C
- Wire Size Compatibility: #12 AWG to #10 AWG (terminal screws), #14 AWG solid copper wire (push wire)
- Phase: Single Phase
- Country of Origin: China
Features
- Weather resistant with self-grounding design
- Smooth indented face appearance
- Multiple-drive Slot/Phillips/Robertson head screws for versatile installation
- Tough thermoplastic ultrasonically welded cover and base for durability
- Terminal screws accept up to #12 AWG wire; push wire designed for #14 AWG solid copper wire
