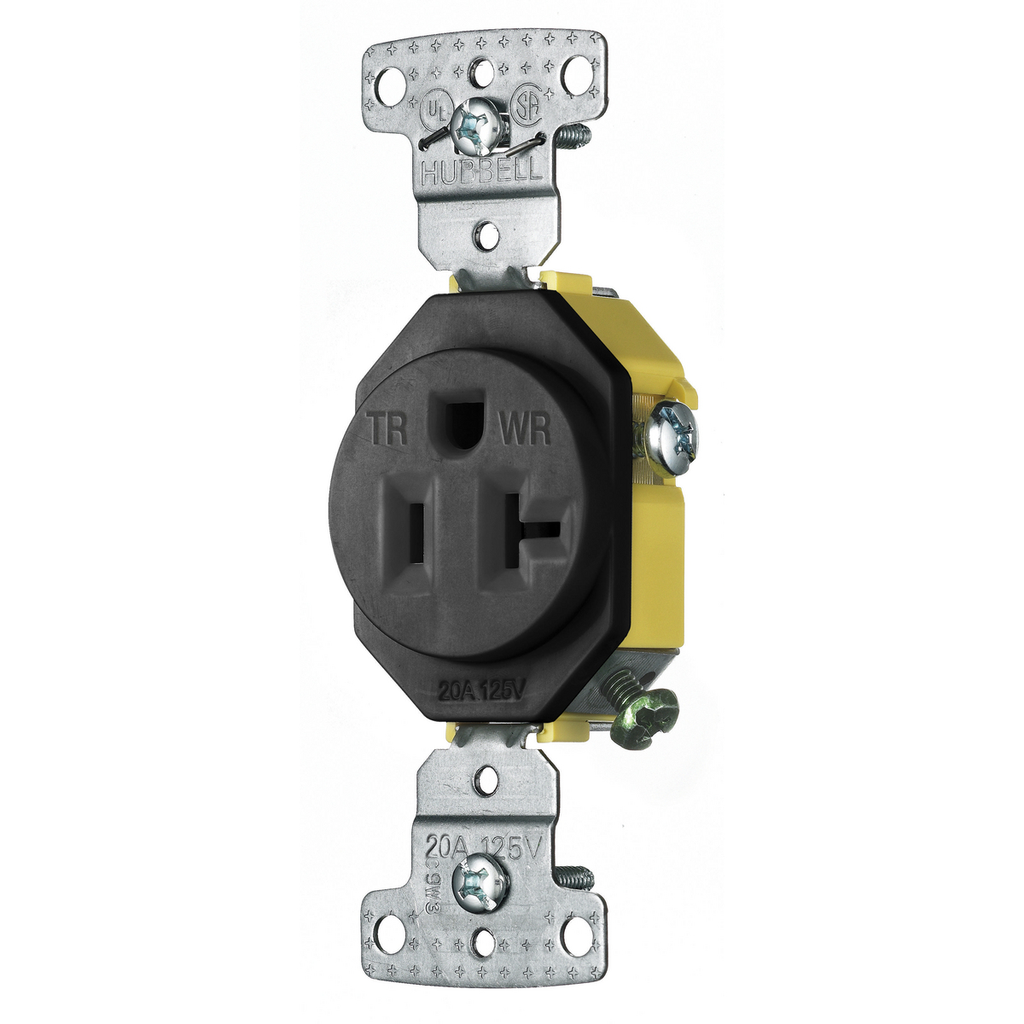

TradeSelect, Straight Blade, Single Receptacle, Weather and Tamper Resistant, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Black
SKU: #149778
Part: #RR201BKWRTR
UPC: 883778302930
TradeSelect, Straight Blade, Single Receptacle, Weather and Tamper Resistant, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Black
SKU: #149778
Part: #RR201BKWRTR
UPC: 883778302930
Description
TradeSelect Straight Blade Single Receptacle - Weather Resistant Electrical Distributor
The TradeSelect Straight Blade Single Receptacle by Bryant is designed for residential receptacle applications, providing reliable electrical connections with weather and tamper-resistant features. This 20A, 125V, 2-pole, 3-wire grounding receptacle (NEMA 5-20R) is suitable for use in environments requiring durable, weather-resistant components. It is ideal for electrical distributors and lighting solutions providers seeking quality wire and cable accessories and switchgear components.
Specifications
- Application: Residential Receptacles
- Current Rating: 20 amperes
- Voltage Rating: 125 VAC
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire Grounding
- NEMA Rating: 5-20R
- Connection: Side Wired
- Material: Thermoplastic
- Mounting: Screw Mount
- Color: Black
- Dimensions: Width 3.5 inches
- Wattage: 2500 W
- Operating Temperature: -20°C to 60°C
- UPC: 883778302930
- Manufacturer Part #: RR201BKWRTR
- Country of Origin: China
Features
- Weather and tamper-resistant design for enhanced safety and durability
- Smooth indented face appearance
- Multiple-drive Slot/Phillips/Robertson head screws for versatile installation
- Tough thermoplastic cover and base ultrasonically welded for strength
- Self-grounding with terminal screws accepting up to #12 AWG wire
- Push wire designed for #14 AWG solid copper wire
