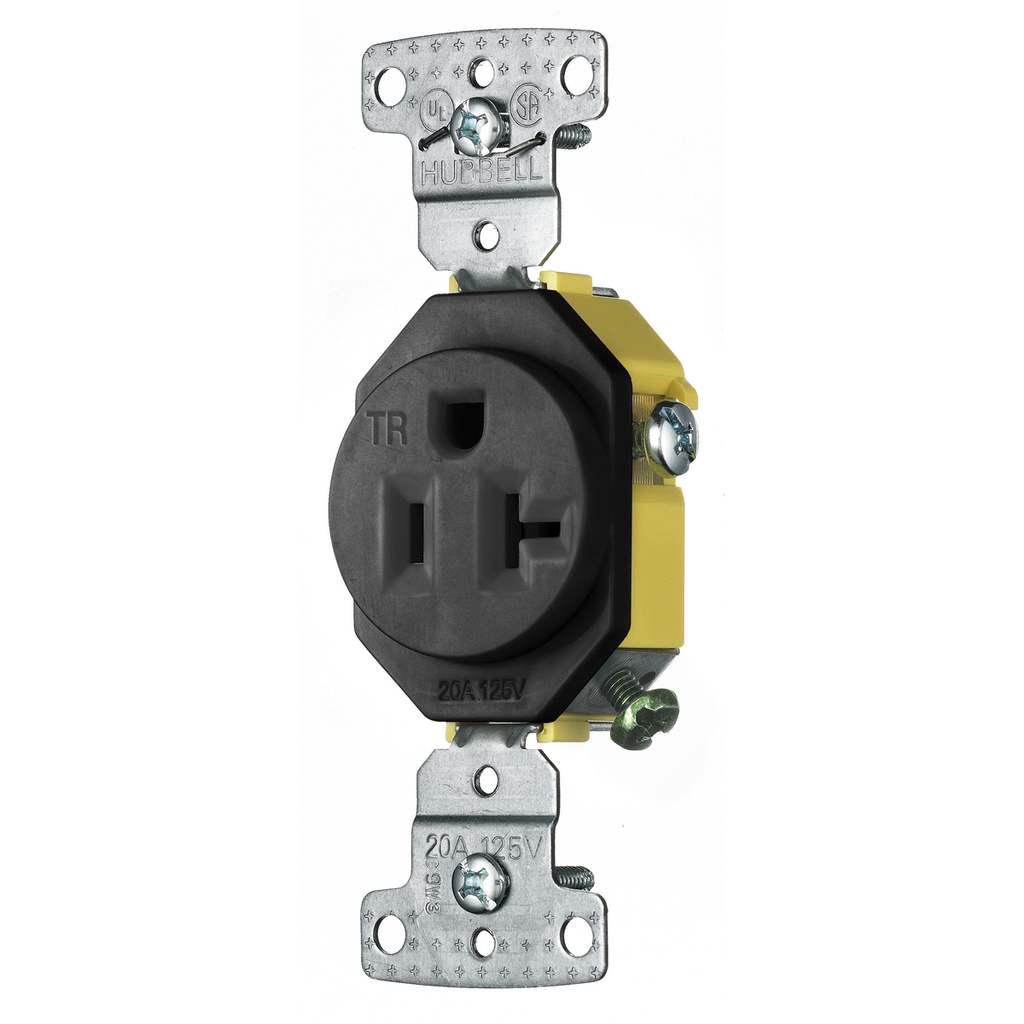

TradeSelect Straight Blade Single Receptacle Tamper Resistant 20A 125V

This TradeSelect single receptacle is designed for residential electrical applications, providing tamper-resistant protection with a 20 amp, 125 volt rating. It is suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers requiring reliable, code-compliant receptacles for indoor dry environments. The device features a 2-pole, 3-wire grounding configuration with a NEMA 5-20R rating and side wired connectivity for efficient installation.

Specifications

• Application: Residential Receptacles
• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• NEMA Rating: 5-20R
• Current: 20 amperes
• Connection: Side Wired
• Material: Thermoplastic
• Color: Black
• Mounting: Screw Mount
• Width: 2.5 in
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Wattage: 2500 W
• Manufacturer Part #: RR201BKTR
• Country of Origin: China

Features

• Tamper resistant design for enhanced safety
• Smooth indented face appearance
• Multiple-drive Slot/Phillips/Robertson head screws for versatile installation
• Tough thermoplastic ultrasonically welded cover and base for durability
• Terminal screws accept up to #12 AWG wire; push wire designed for #14 AWG solid copper wire
• RoHS compliant
