TradeSelect, Straight Blade, Single Receptacle, Clock Hanger, Tamper Resistant, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Nickel Plate
SKU: #149836
Part: #RR201CHSSTR
UPC: 883778302213
TradeSelect, Straight Blade, Single Receptacle, Clock Hanger, Tamper Resistant, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Nickel Plate
SKU: #149836
Part: #RR201CHSSTR
UPC: 883778302213
Next day delivery
Description

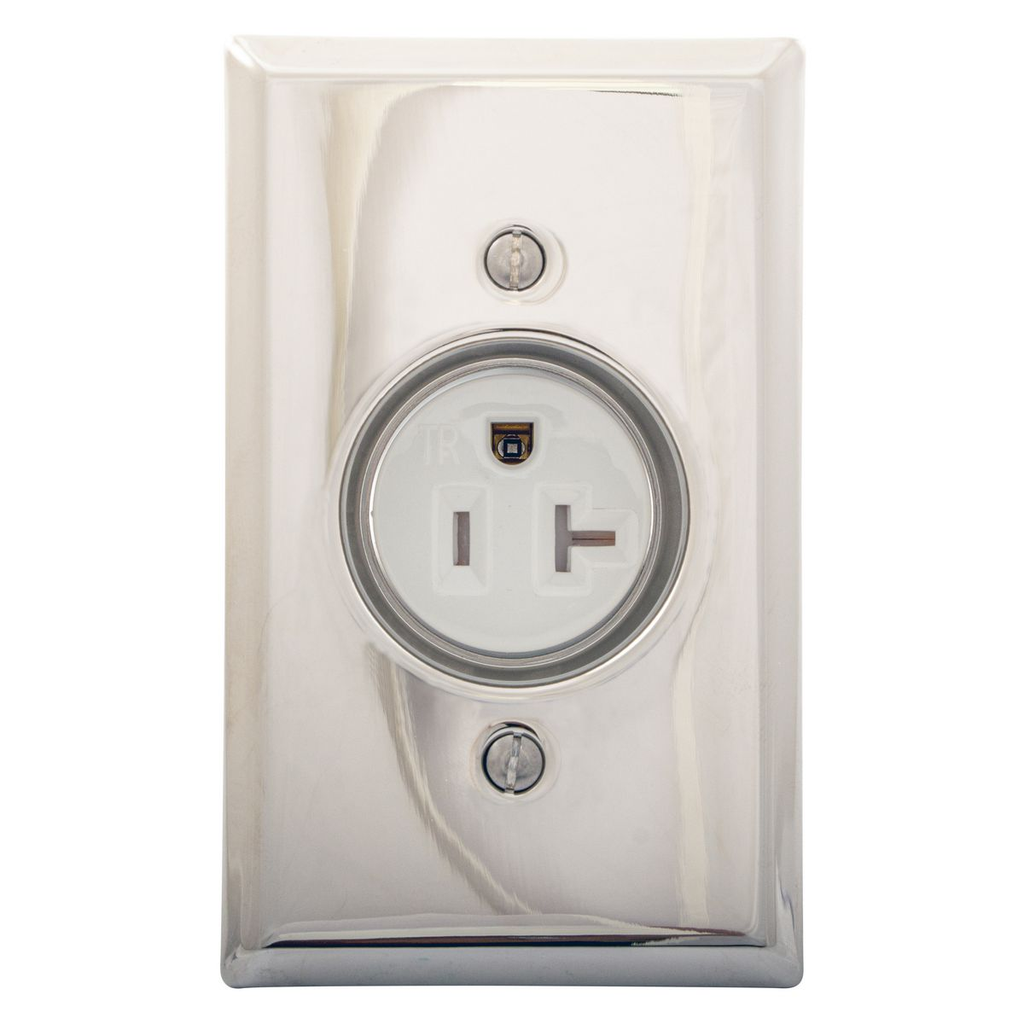

TradeSelect Straight Blade Single Receptacle – Tamper Resistant Electrical Outlet
This TradeSelect straight blade single receptacle is designed for special use applications requiring tamper-resistant features. It is suitable for indoor dry environments and provides reliable electrical connections for 20 ampere circuits at 125 volts. Ideal for electrical distributors and lighting solutions providers, this receptacle supports 2-pole, 3-wire grounding configurations with a NEMA 5-20R rating. Its stainless steel nickel-plated finish and thermoplastic material ensure durability and compliance with UL standards.
Specifications
- Application: Special Use Products
- Current Rating: 20 A
- Voltage Rating: 125 VAC
- Amperage Rating: 20 A
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire Grounding
- Wire Size: #12 AWG to #10 AWG
- Connectivity: Back and Side Wired Screw Terminals
- NEMA Rating: 5-20R
- Material: Thermoplastic
- Mounting: Screw Mount
- Color: Stainless Steel
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Industry Standard(s): UL Listed
- EU RoHS Indicator: Yes
- Dimensions - Width: 3.2 in
- Product Weight: 0.2 lbs
- Manufacturer: Bryant
- Manufacturer Part #: RR201CHSSTR
- Country of Origin: China
Features
- Single Receptacle design for straightforward installation
- Clock Hanger for secure mounting of clocks or similar devices
- Tamper Resistant for enhanced safety in commercial or public environments
