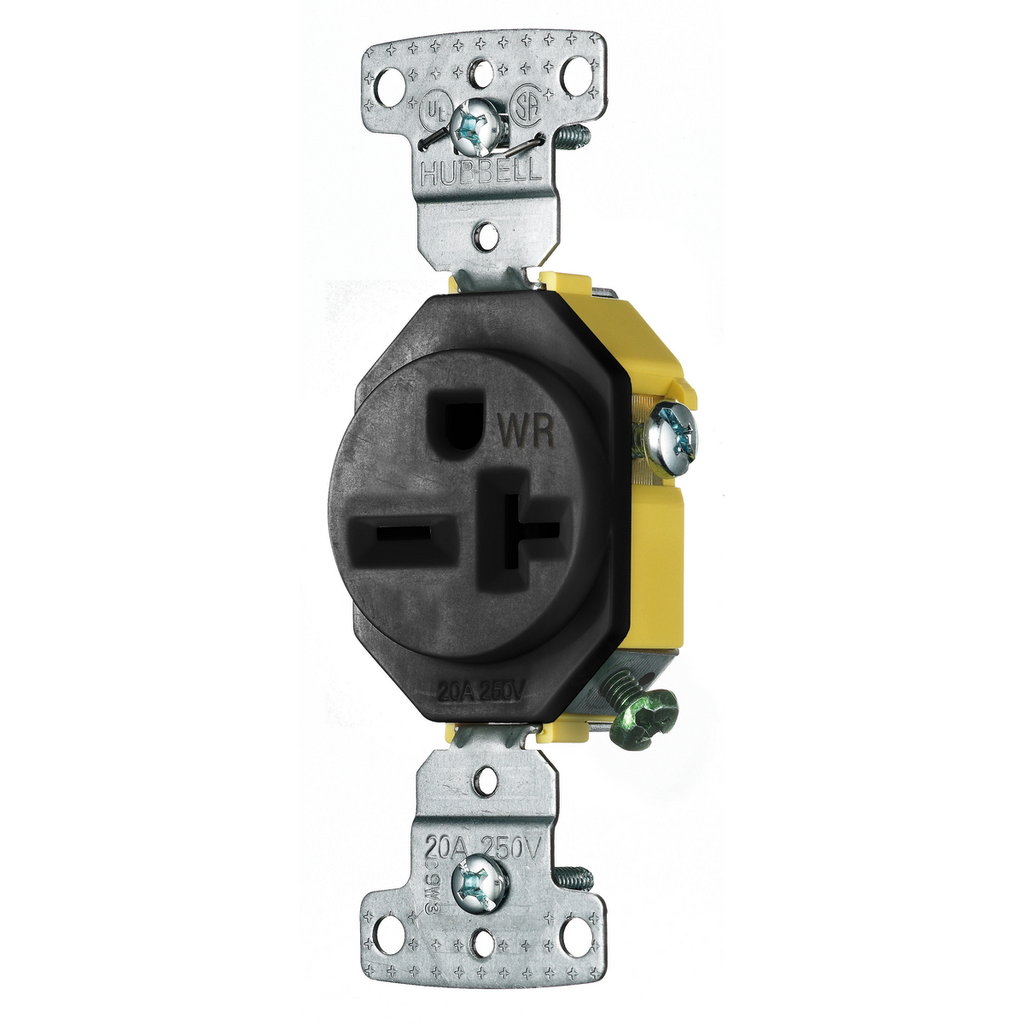

TradeSelect Residential Grade Weather Resistant Receptacle 20A 250V

This TradeSelect residential grade receptacle is designed for electrical distributors and lighting solutions providers requiring reliable, weather resistant wiring devices. It serves as a single, straight blade device with a 20 ampere, 250 volt rating, suitable for residential receptacle applications. The device supports 2-pole, 3-wire grounding connections and is engineered for side wiring, making it compatible with standard wire sizes from #12 AWG to #10 AWG. Its robust thermoplastic construction ensures durability and safety in outdoor or damp environments.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: RR205BKWR
• Application: Residential Receptacles
• Current/Amperage: 20 amperes
• Voltage Rating: 250 volts
• NEMA Rating: 6-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• Connection Type: Side Wired
• Material: Thermoplastic
• Color: Black
• Mounting: Screw Mount
• Width: 2.75 in
• Wire Size Compatibility: #12 AWG to #10 AWG
• Environmental Conditions: Weather Resistant
• Operating Temperature Range: 20°C to 60°C
• Phase: Single Phase
• Wattage: 5000
• Country of Origin: China

Features

• Weather resistant and self-grounding design for outdoor and damp locations
• Smooth indented face appearance for aesthetic and functional use
• Multiple-drive screws compatible with Slot, Phillips, and Robertson heads
• Tough thermoplastic cover and base ultrasonically welded for enhanced durability
• Terminal screws accept up to #12 AWG wire; push wire designed for #14 AWG solid copper wire

Downloads & Links

• Warranty Document Asset Reference
• Spec Sheet
• Installation Manuals Asset Reference
• RR205BKWR AutoCAD Drawing
• Catalog Page Asset Reference
• Catalog Full Asset Reference
• Sales Drawing Asset Reference
