TradeSelect, Straight Blade Devices, Residential Grade, Receptacles, Tamper Resistant Single, 20A 125V, 2- Pole 3-Wire Grounding, 5-20R, Self Grounding, Almond
SKU: #149753
Part: #RR201ALTR
UPC: 883778301940
TradeSelect, Straight Blade Devices, Residential Grade, Receptacles, Tamper Resistant Single, 20A 125V, 2- Pole 3-Wire Grounding, 5-20R, Self Grounding, Almond
SKU: #149753
Part: #RR201ALTR
UPC: 883778301940
Description

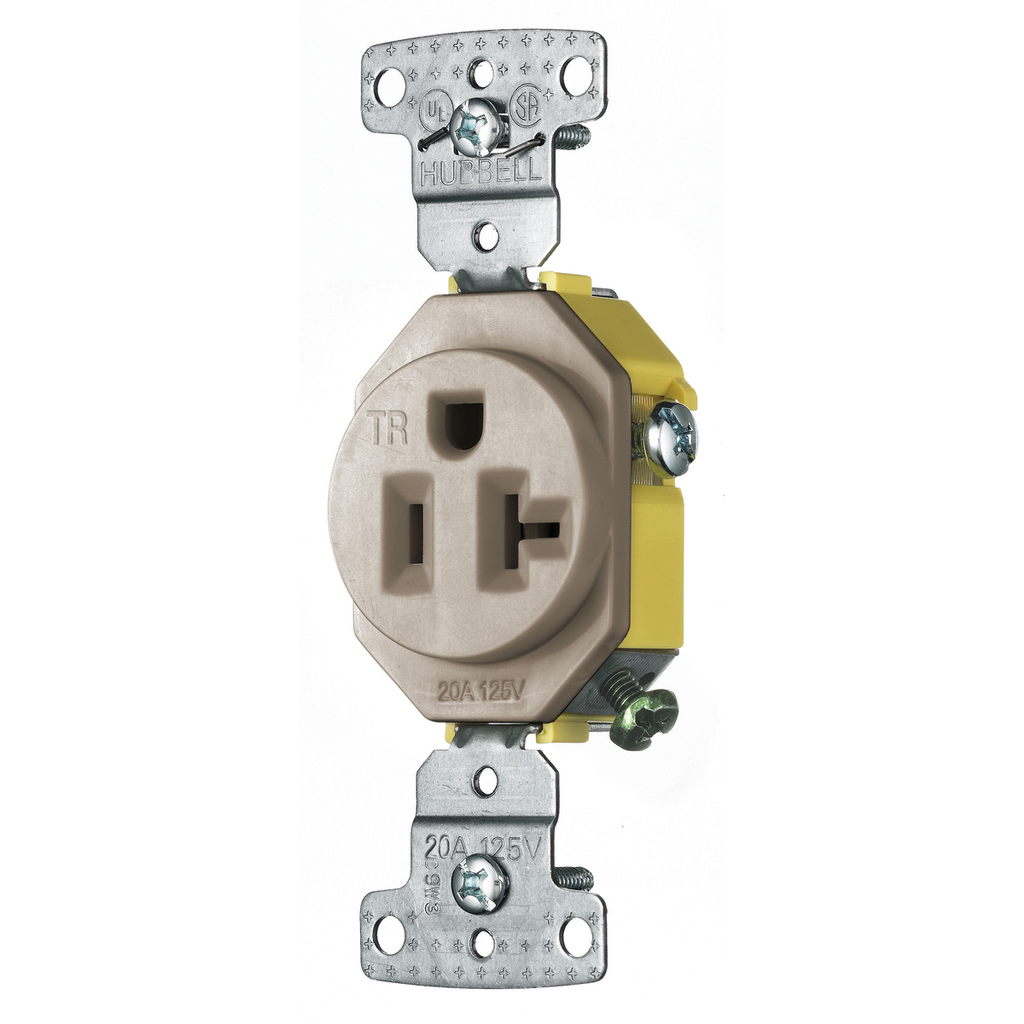

TradeSelect Residential Grade Tamper Resistant Receptacle 20A 125V
This TradeSelect straight blade receptacle is designed for residential electrical applications, providing tamper-resistant protection and reliable grounding. Suitable for use by electrical distributors and switchgear suppliers, it supports 20 ampere current at 125 volts AC, with a 2-pole, 3-wire grounding configuration. The device is constructed from durable thermoplastic and is intended for indoor dry environments unless additional protection is applied.
Specifications
- Application: Residential Receptacles
- Current Rating: 20 A
- Amperage: 20 amperes
- Voltage Rating: 125 VAC
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire Grounding
- NEMA Rating: 5-20R
- Material: Thermoplastic
- Color: Almond
- Dimensions: 4.2 in (L) x 1.4 in (W) x 1 in (H)
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Connectivity: Side Wired
- Wattage: 2500 W
- Phase: Single Phase
- UPC: 883778301940
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: RR201ALTR
- Country of Origin: China
Features
- Smooth indented face appearance
- Multiple-drive Slot/Phillips/Robertson head screws for versatile installation
- Tough thermoplastic ultrasonically welded cover and base for durability
- Tamper resistant single receptacle design enhances safety
- Self grounding for reliable electrical connection
