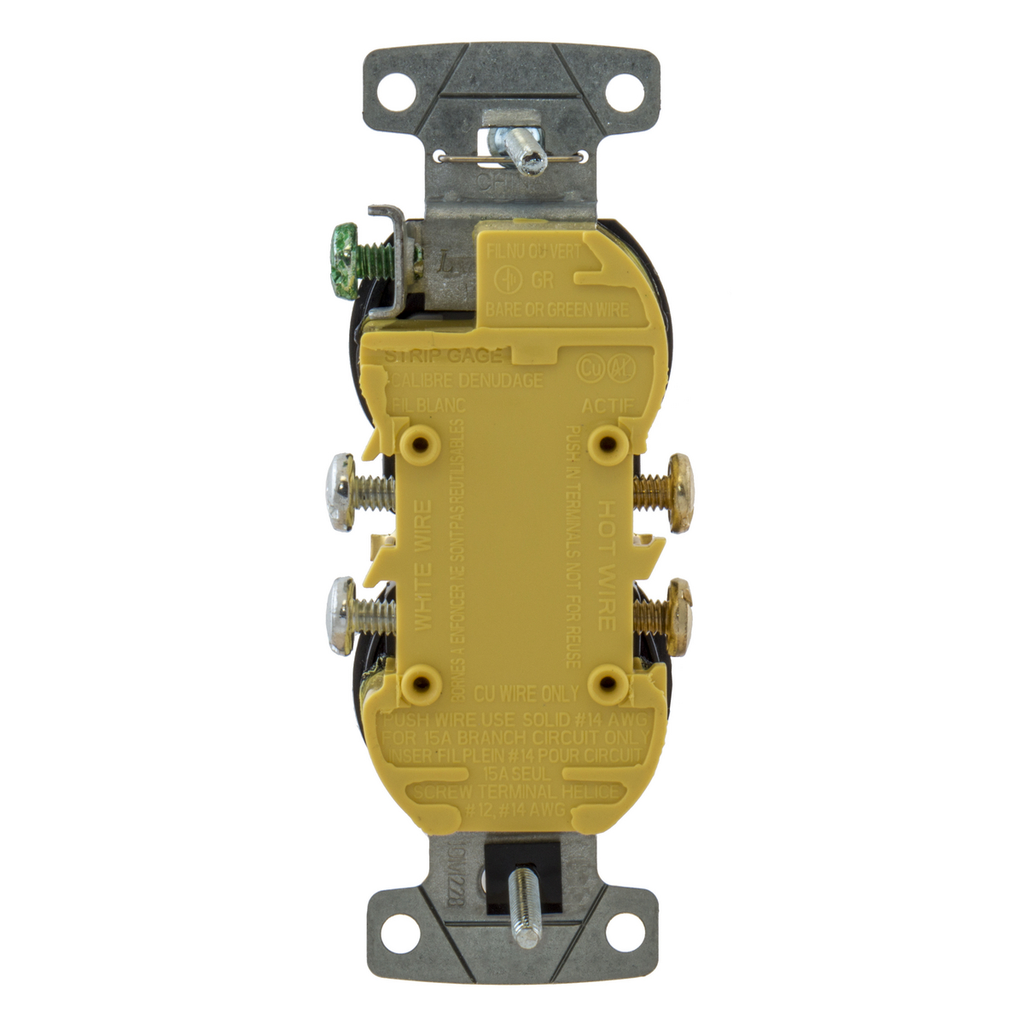

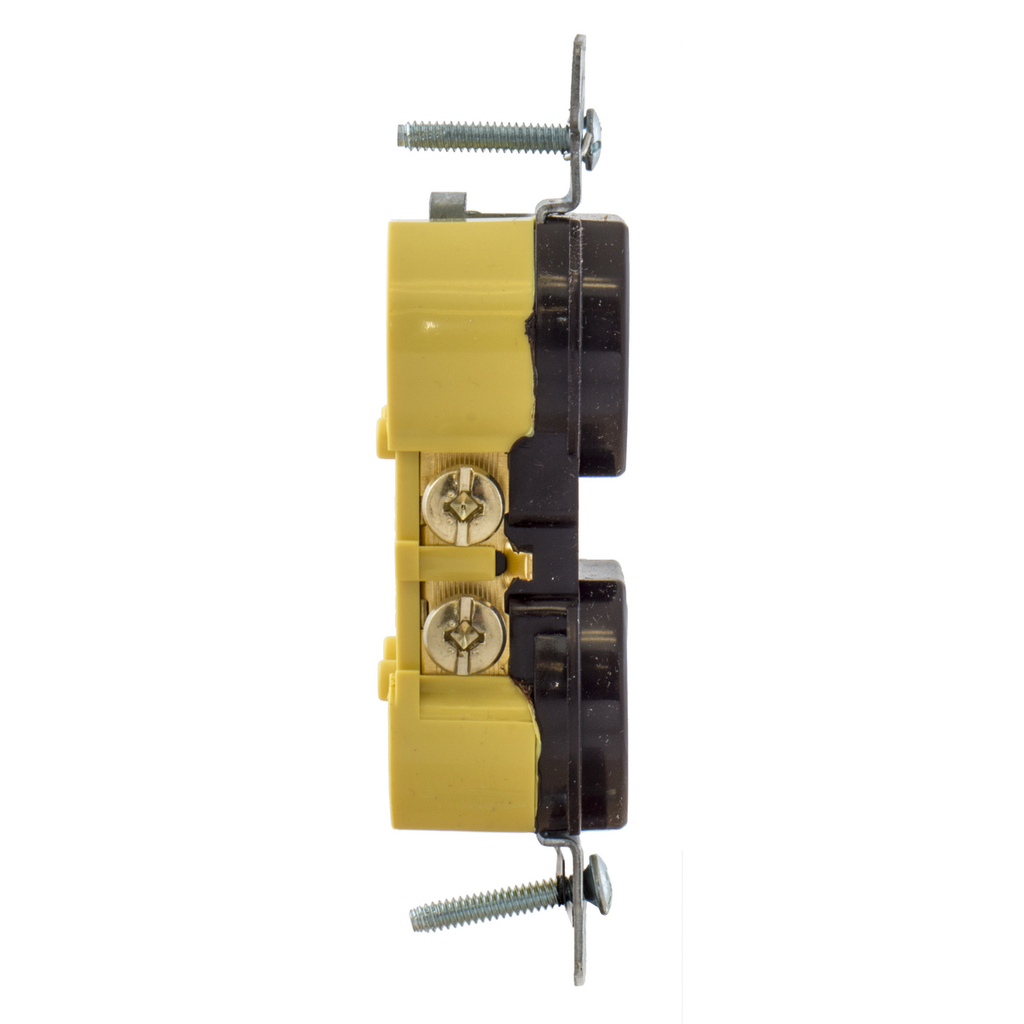

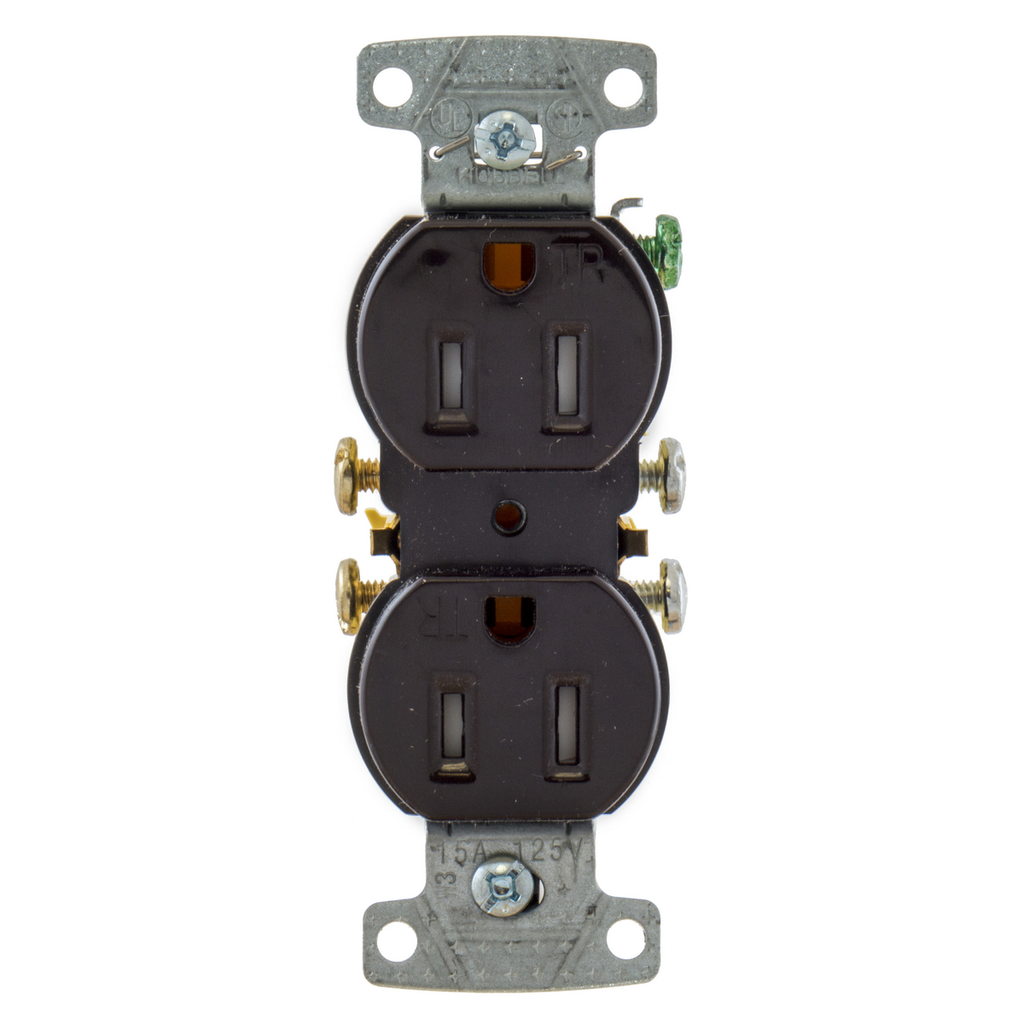

tradeSELECT® Straight Blade TR Duplex 15A - Tamper Resistant Residential Receptacle

The tradeSELECT® Straight Blade Tamper Resistant Duplex Receptacle is designed for residential electrical applications, providing a secure and reliable solution for 15 amp, 125 volt circuits. Manufactured by Hubbell Wiring Device-Kellems, this receptacle features a tamper-resistant mechanism compliant with the 2017 National Electrical Code® requirements, enhancing safety by preventing accidental insertion of foreign objects. Ideal for indoor dry environments, it supports push and side wire connections and is suitable for use by electrical distributors and lighting solutions providers in residential wiring projects.

Specifications

• Application: Residential Receptacles
• Amperage Rating: 15 A
• Current: 15 amperes
• NEMA Rating: 5-15R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• Material: Thermoplastic
• Mounting: Screw Mount
• Connection: Push and Side Wire
• Color: Brown
• Width: 1.580 in
• Product Weight: 0.4770 lbs
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: RR15STR

Features

• Tamper-resistant shutter mechanism with patented cam action technology for smooth plug insertion and enhanced safety
• Self-grounding design
• Push and side wire termination for flexible installation
• Compliant with NEC® 2017 code requirements for tamper-resistant receptacles in residential settings
• Supports #12 and #14 AWG wire sizes
• Durable thermoplastic construction suitable for indoor dry environments
