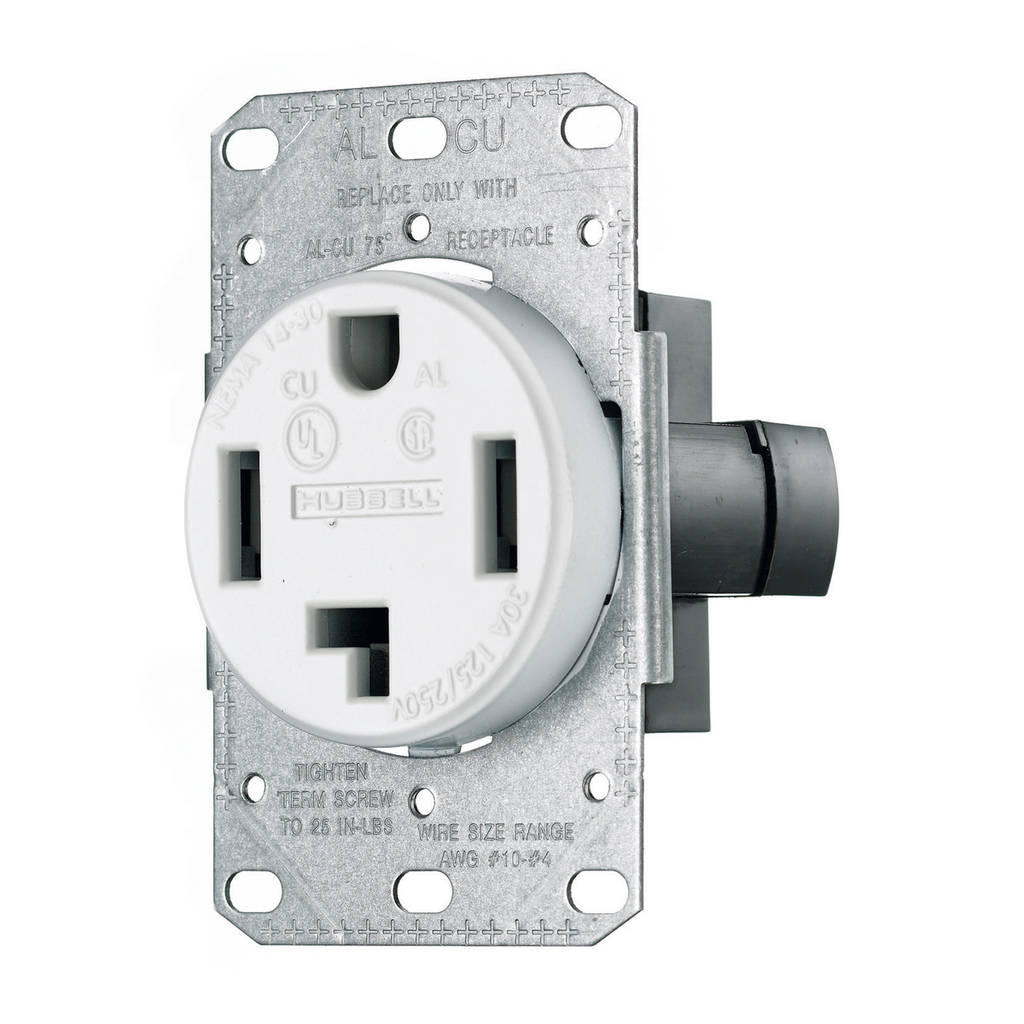

tradeSELECT® Straight Blade Single Receptacle 30A Flush Mount – Residential Range and Dryer Devices

This tradeSELECT® straight blade single receptacle is designed for residential range and dryer applications. It features a 30 ampere rating with 125/250 volts, accommodating 3-pole, 4-wire grounding configurations. Ideal for indoor dry environments unless protected by additional means, this flush mount receptacle provides reliable electrical connections for residential appliances. It is well-suited for electrical distributors and switchgear suppliers focusing on wire and cable and lighting solutions in residential settings.

Specifications

• Application: Residential Range and Dryer Devices
• Current/Amperage: 30 amperes
• Voltage: 125/250V
• Number of Poles: 3-Pole
• Number of Wires: 4-Wire
• NEMA Rating: 14-30R
• Material: Thermoplastic/Composite
• Color: White
• Mounting: Screw Mount
• Connection: Pressure Screw Terminals
• Width: 2.410 in
• Product Weight: 0.3200 lbs
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Country of Origin: China
• Manufacturer: Bryant
• Manufacturer Part #: RR430FW

Features

• Flush mount design suitable for 1- or 2-gang boxes
• Range and dryer power receptacle terminals accept up to #4 AWG conductors
• Compatible with copper or aluminum conductors
• Wires hidden for a clean flush look
• UL Listed and CSA Certified
• Pressure screw terminal connection for secure wiring
