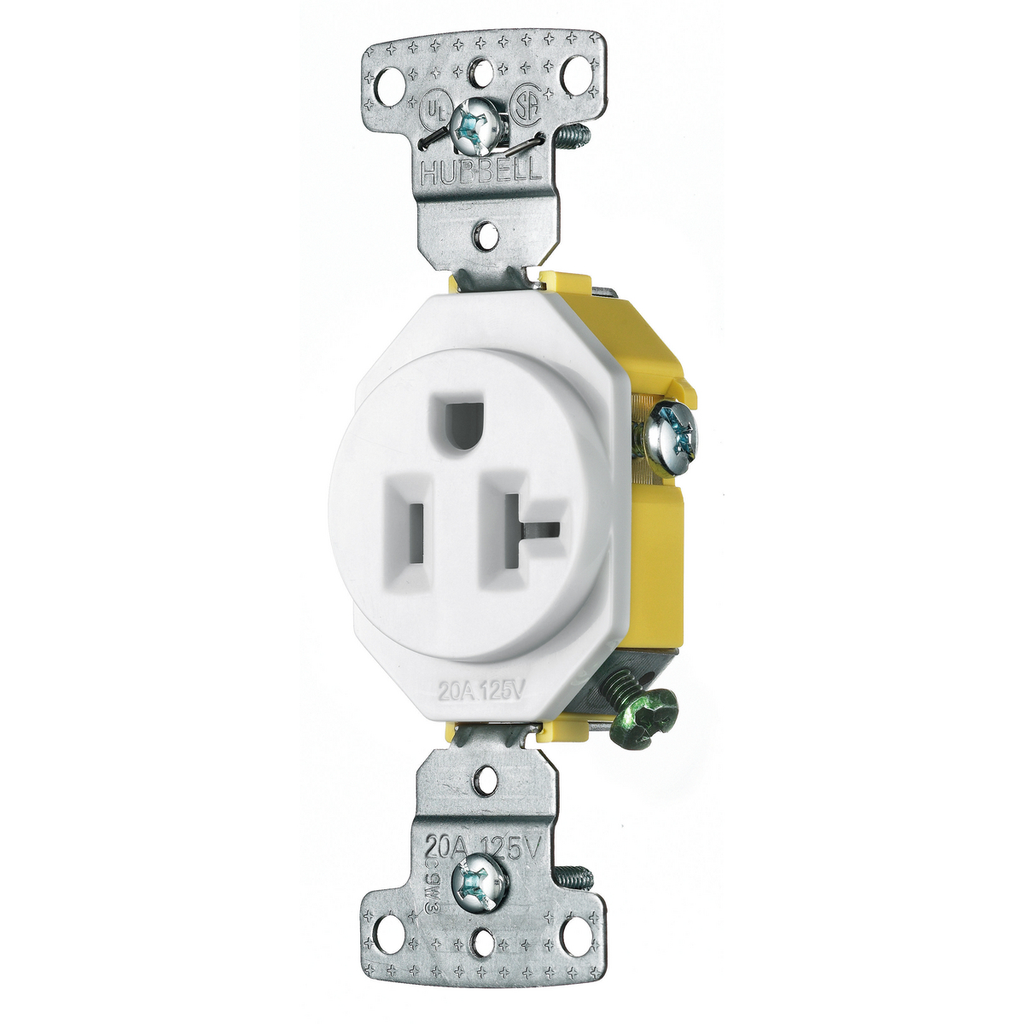

tradeSELECT® Straight Blade Single 20A Residential Receptacle

This tradeSELECT® Straight Blade Single 20A receptacle is designed for residential electrical applications, providing reliable grounding and power distribution. It is suitable for use by electrical distributors and lighting solutions providers requiring standard residential wire and cable components. The device supports a 20 ampere current rating at 125 volts AC, featuring a 2-pole, 3-wire grounding configuration with a NEMA 5-20R rating for compatibility with common residential power systems.

Specifications

• Application: Residential Receptacles
• Current Rating: 20 amperes
• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• NEMA Rating: 5-20R
• Connection: Side Wired
• Material: Thermoplastic
• Color: White
• Mounting: Screw Mount
• Wire Size: #12 AWG to #10 AWG
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Phase: Single Phase
• Wattage: 2500 W
• Width: 1.370 in
• Product Weight: 0.0300 lbs
• Country of Origin: China
• Manufacturer: Bryant
• Manufacturer Part #: RR201W

Features

• Smooth indented face appearance
• Multiple-drive Slot/Phillips/Robertson head screws for versatile installation
• Tough thermoplastic ultrasonically welded cover and base for durability
• Self-grounding design for enhanced safety
• Terminal screws accept up to #12 AWG wire; push wire designed for #14 AWG solid copper wire only
• Complies with EU RoHS standards
