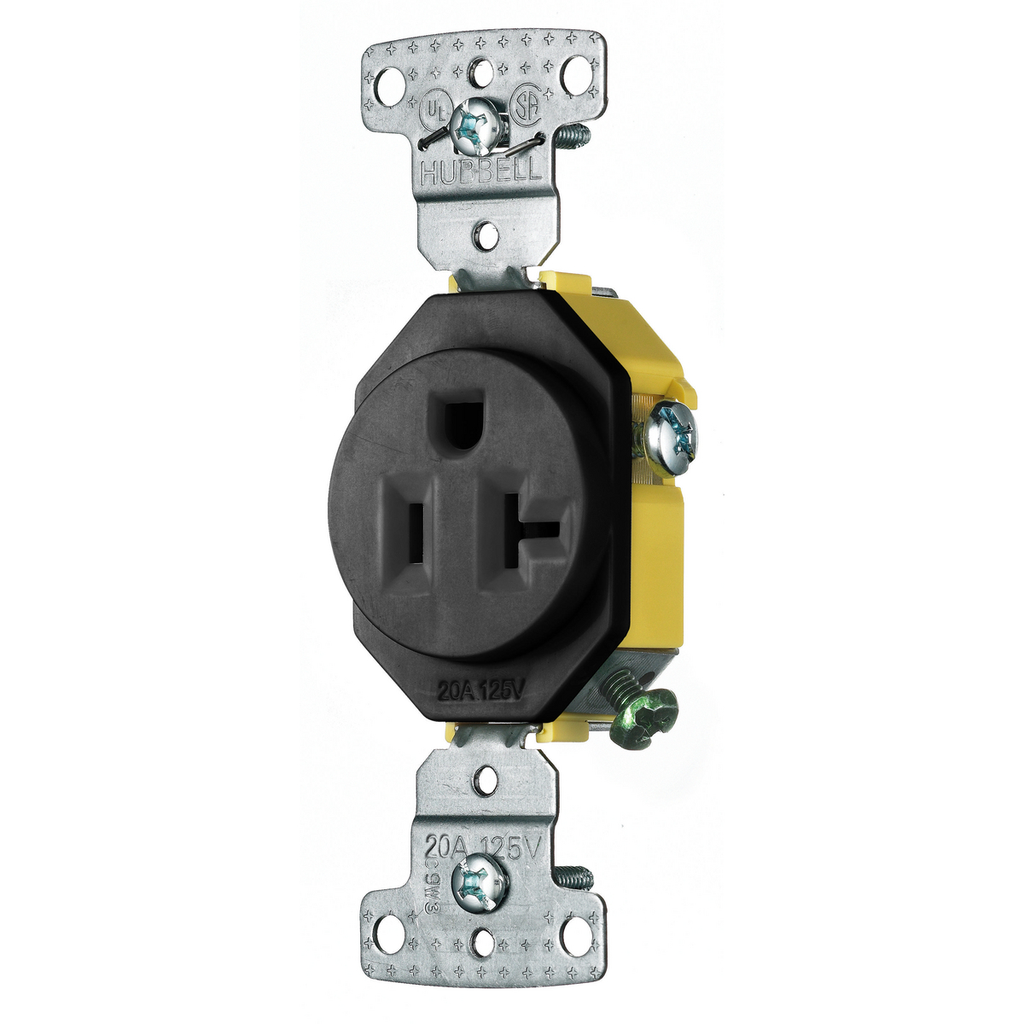

tradeSELECT® Straight Blade Single 20A Residential Receptacle

This tradeSELECT® Straight Blade Single 20A receptacle is designed for residential applications, providing reliable electrical connections for indoor dry environments. Manufactured by Hubbell Wiring Device-Kellems, it is a 20 amp, 125 volt, 2-pole, 3-wire grounding device with a NEMA 5-20R rating. Suitable for use in wire and cable distribution and lighting solutions, this receptacle supports side wiring and features self-grounding capabilities.

Specifications

• Application: Residential Receptacles
• Current: 20 amperes
• Amperage Rating: 20 A
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• Connection: Side Wired
• Material: Thermoplastic
• Mounting: Screw Mount
• Width: 3.420 in
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Operating Temperature: 20°C to 60°C
• Wire Size: #12 AWG to #10 AWG
• Wattage: 2500 W
• Phase: Single Phase
• Product Weight: 1.2 lbs
• Country of Origin: China
• Manufacturer Part #: RR201BK

Features

• Smooth indented face appearance
• Multiple-drive Slot/Phillips/Robertson head screws for versatile installation
• Tough thermoplastic ultrasonically welded cover and base for durability
• Self grounding for enhanced safety
• Terminal screws accept up to #12 AWG wire; push wire designed for #14 AWG solid copper wire only

Downloads & Links

• Spec Sheet
• Sales Drawing Asset Reference
• Warranty Document Asset Reference
• Installation Manuals Asset Reference
• RR201BK AutoCAD Drawing
• Catalog Page Asset Reference
• Catalog Full Asset Reference
