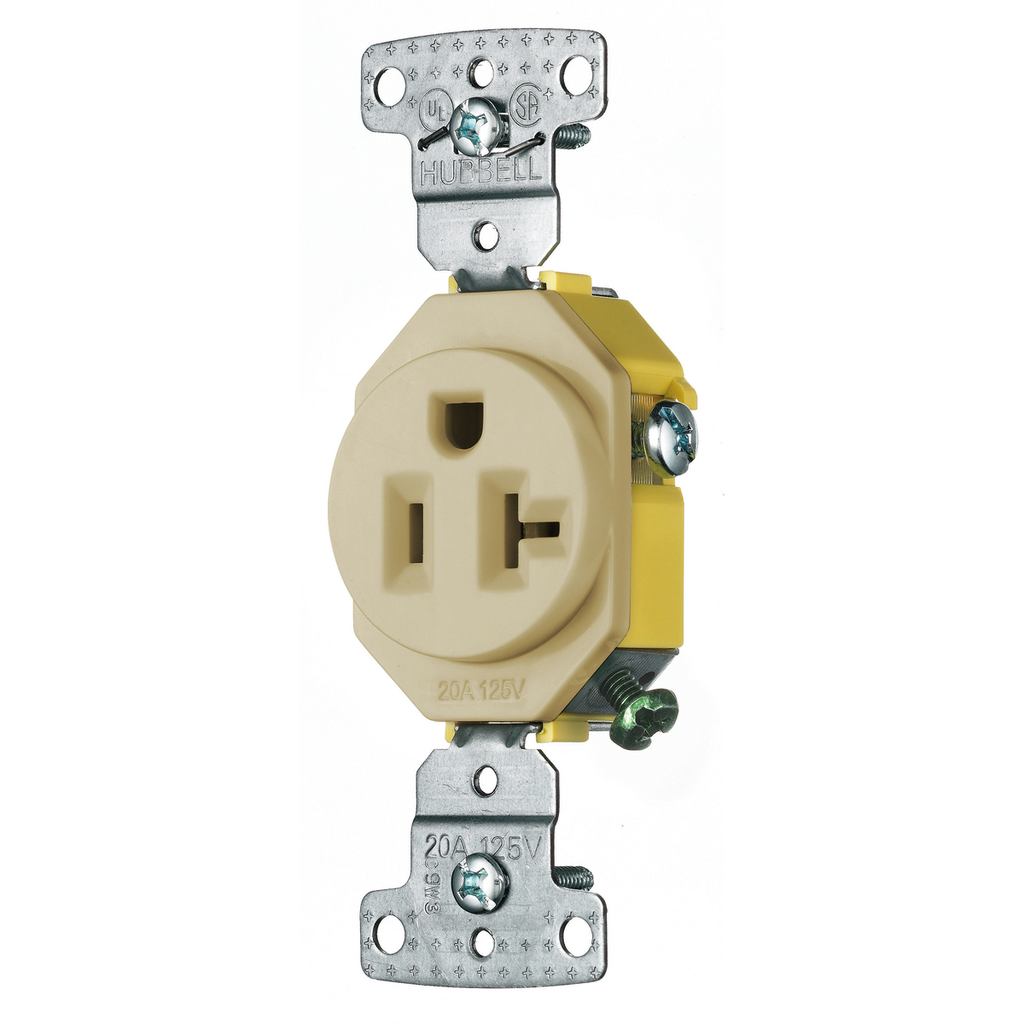

tradeSELECT® Straight Blade Single 20A Residential Receptacle

This tradeSELECT® Straight Blade Single 20A receptacle is designed for residential electrical applications, providing reliable grounding and connection for 20-ampere circuits. Suitable for indoor dry environments, it is a key component for electrical distributors and lighting solutions requiring durable, thermoplastic wire and cable accessories. The device features a 2-pole, 3-wire grounding configuration with a NEMA 5-20R rating, ensuring compatibility with standard residential wiring systems.

Specifications

• Application: Residential Receptacles
• Amperage: 20 amperes
• Current: 20 amperes
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• Material: Thermoplastic
• Color: Ivory
• Mounting: Screw Mount
• Connection: Side Wired
• Width: 1.560 in
• Product Weight: 0.4880 lbs
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: RR201I

Features

• Self-grounding design for enhanced safety
• TradeSELECT® residential grade for reliable performance
• Side wired connection for straightforward installation
• Thermoplastic construction offers durability and electrical insulation
• Compliance with standard NEMA 5-20R receptacle configuration

Downloads & Links

• Sales Drawing Asset Reference
• Warranty Document Asset Reference
• Installation Manuals Asset Reference
• RR201I AutoCAD Drawing
• Catalog Page Asset Reference
• Spec Sheet
• Catalog Full Asset Reference
