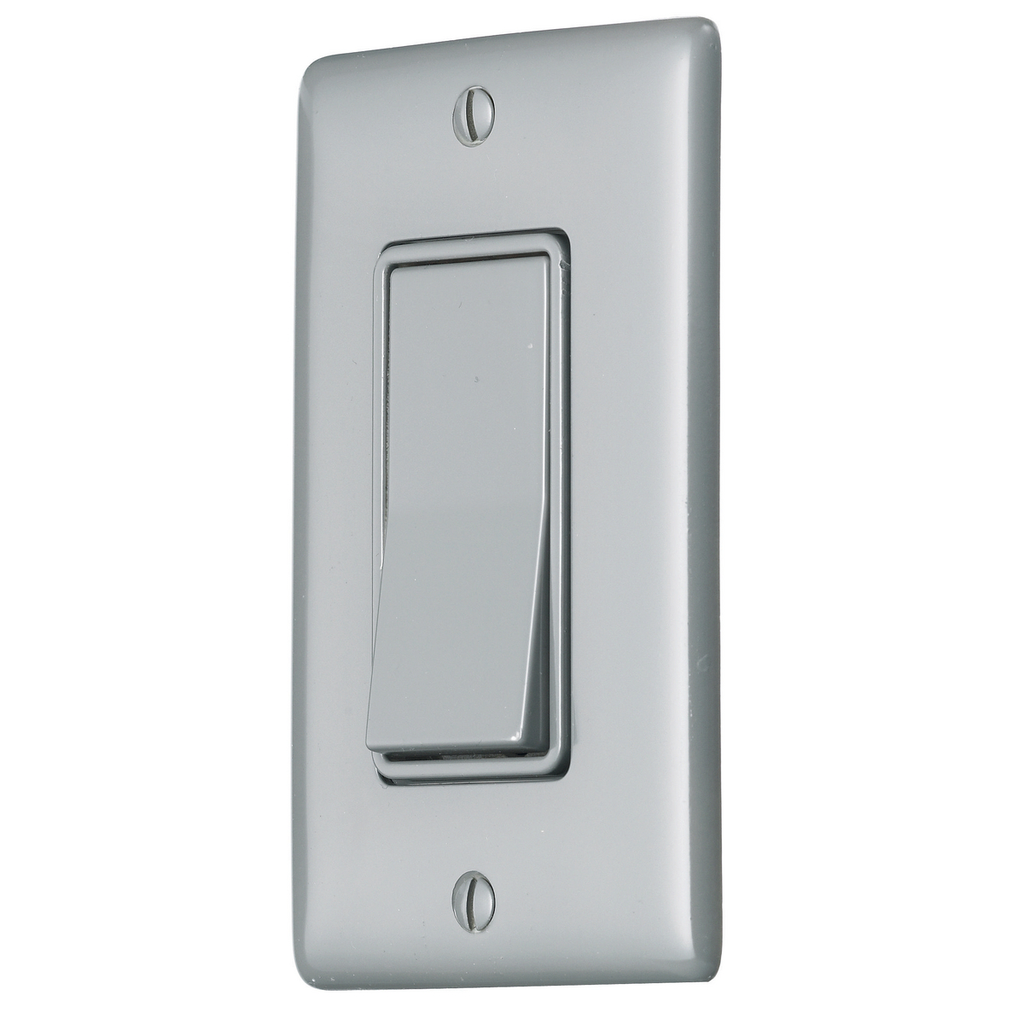

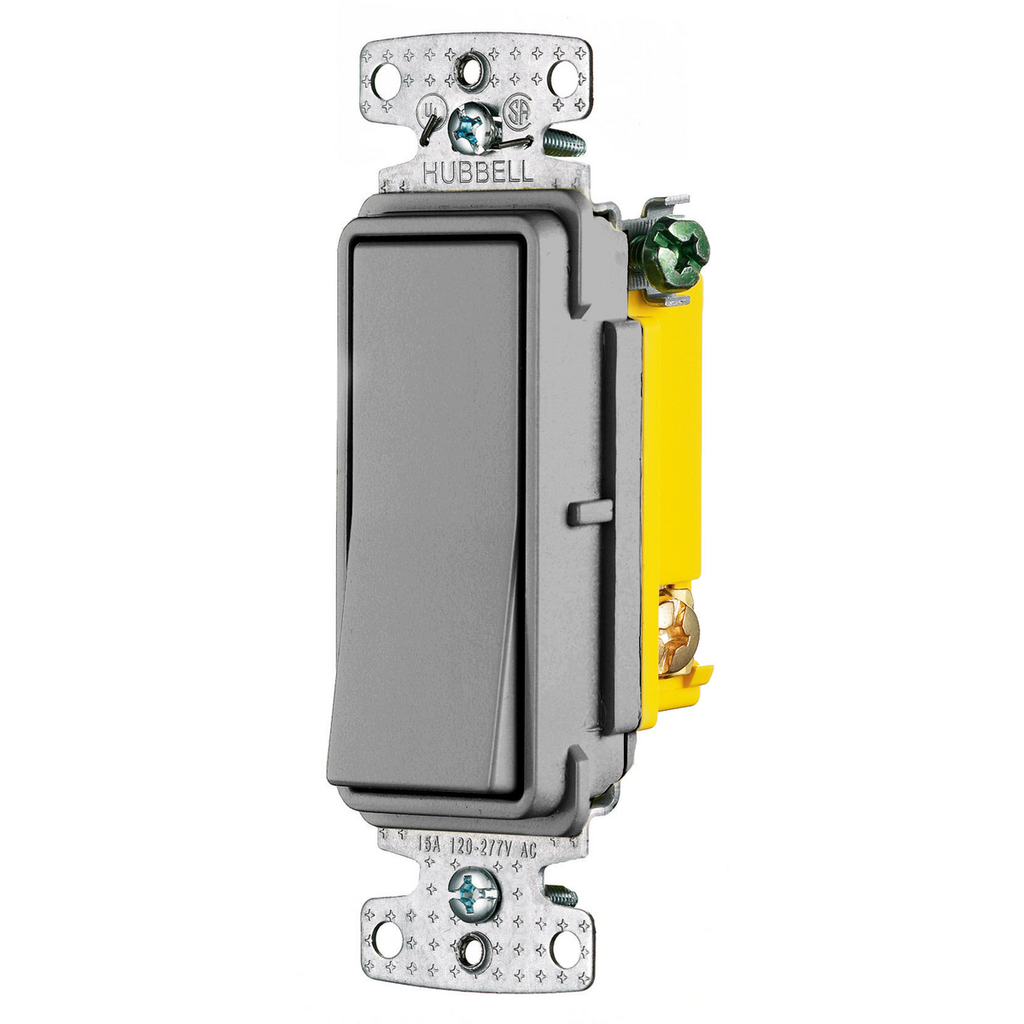

tradeSELECT® Decorator Rocker Switch, Single Pole 15A Push Back and Side Wired - Residential Wiring Devices

This tradeSELECT® decorator rocker switch is designed for residential wiring devices, providing a reliable single-pole switching solution rated at 15 amps and 120/277 volts AC. Suitable for general purpose AC applications, it features both push back and side wiring connections, making it compatible with various installation methods. As an electrical distributor or lighting solutions provider, this switch offers a durable composite construction with a gray finish, ideal for indoor dry environments.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: RSD115GY
• Application: Residential Wiring Devices
• Amperage Rating: 15A
• Voltage Rating: 120/277V AC
• Number of Poles: Single Pole
• Contact Rating: Per UL 20
• Contact Configuration: 2 Position
• Operating Cycles: 30,000 Cycles
• Operating Temperature: Max Continuous 60°C, Minimum -20°C without impact
• Material: Composite
• Color: Gray
• Mounting: Screw Mount
• Connection: Push Wire and Terminal Screws
• Width: 1.470 in
• Product Weight: 0.1400 lbs
• Environmental Conditions: Indoor dry unless protected by additional means
• Country of Origin: China

Features

• Decorator style rocker actuator with positive snap action
• Push back and side wired connections for flexible installation
• Residential grade for general purpose AC switching
• Durable composite construction suitable for indoor dry environments
• Complies with UL 20 contact rating standards
• Supports up to 30,000 operating cycles ensuring longevity
