Features

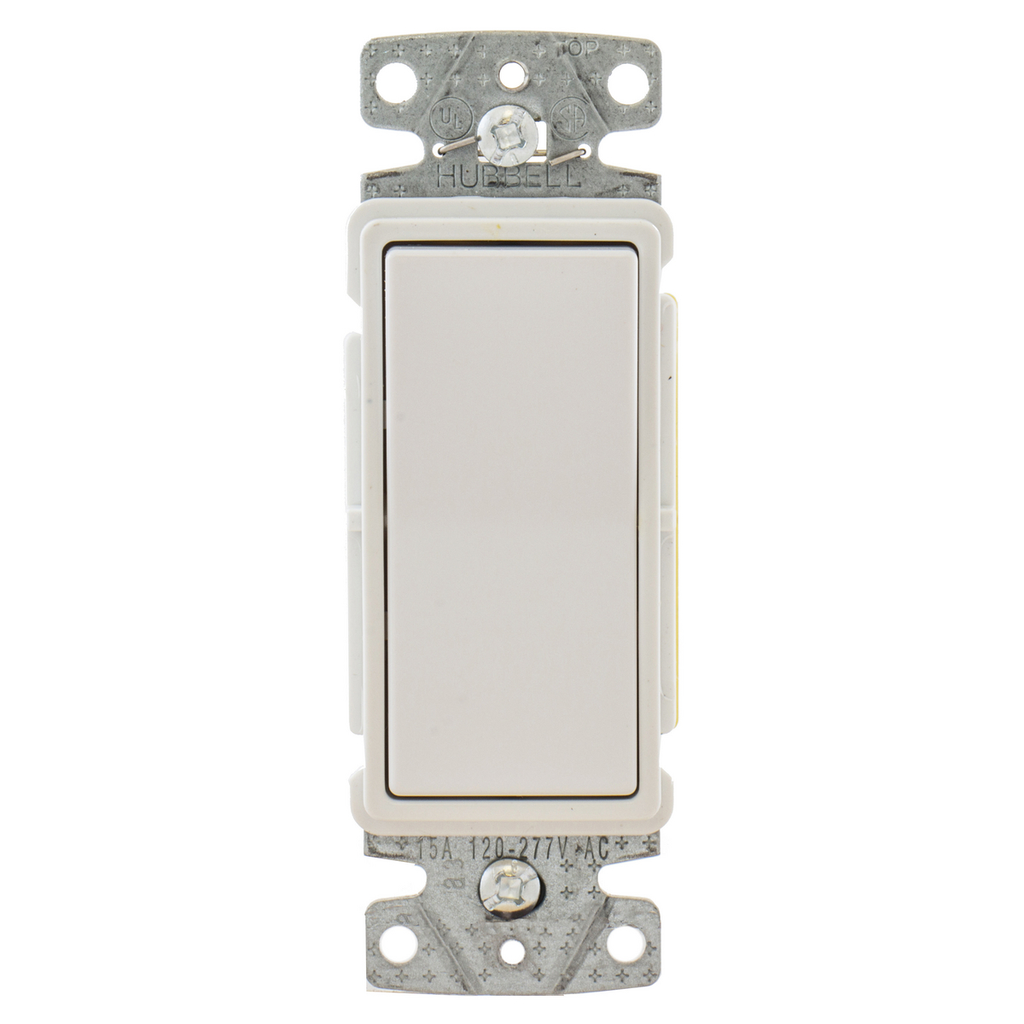

• Smooth, quiet rocker
• Self-grounding feature is standard
• Ultrasonically welded cover and base

Specifications

• Country of Origin: China
• Width: 1.470 in
• Each - Width: 1.470 in
• Industry Standard(s): CSA Certified;UL Listed E3896

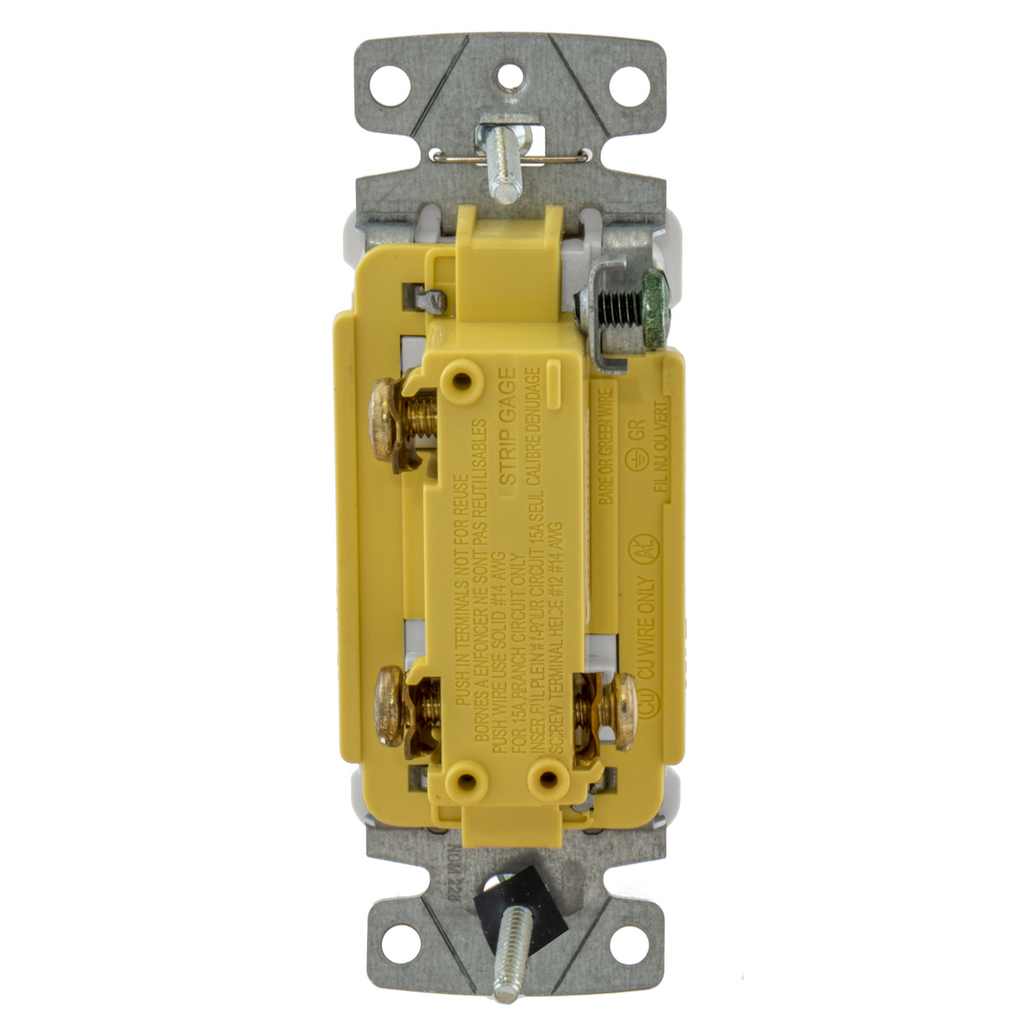

• Performance: Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only
• Standard: CSA Certified;UL Listed E3896
• Class Code: A80
• Description - Invoice: RESI ROCKER SW, 3W, 15A 120V, ILL WH
• Freight Class Code: 06168002
• Harmonization Code: 8536509040
• Image Actual Or Representative: A
• MSDS Flag: No
• Sub Class Code: A80A815
• Base Unit of Measure: EA
• BOX SIZE: 4.700x14.900x7.800 (in)
• Carton - Gross Weight per Pack: 1.600 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 883778101304
• Carton - Total Units: 10 EA
• Case - Total Units: 50 EA
• Case Weight: 8.000 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each

Certifications

• EU RoHS Indicator: Yes
