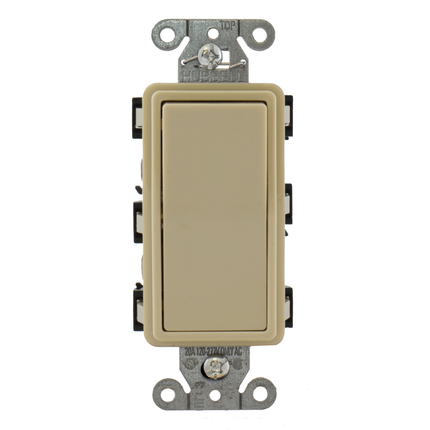

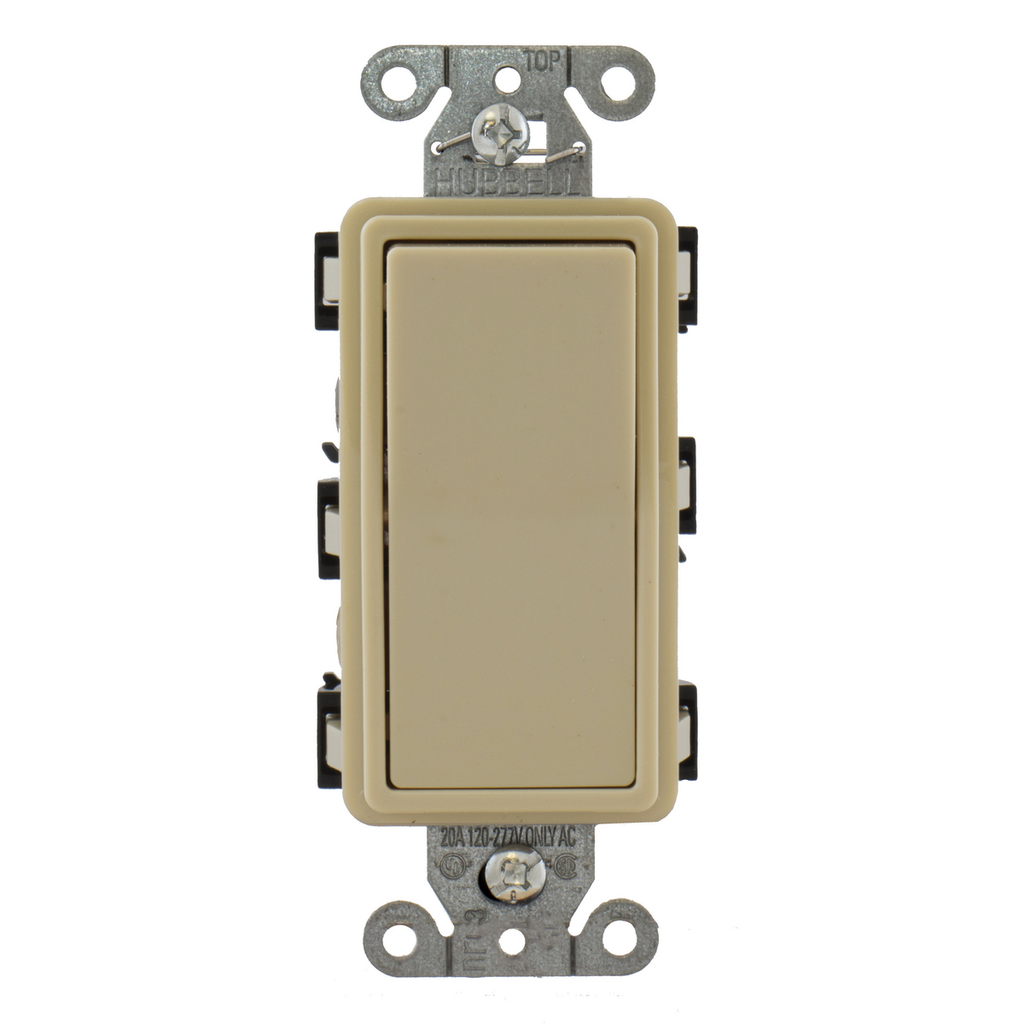

tradeSELECT® Decorator Rocker Switch, 4-Way 15A Push Back and Side Wired
SKU: #151407
Part: #RSD415I
UPC: 883778101434
tradeSELECT® Decorator Rocker Switch, 4-Way 15A Push Back and Side Wired
SKU: #151407
Part: #RSD415I
UPC: 883778101434
Total Price: $13.92 per each Sold in increments of 1 each
Description
tradeSELECT® Decorator Rocker Switch, 4-Way 15A Push Back and Side Wired - Residential Wiring Devices
The tradeSELECT® Decorator Rocker Switch is a residential grade electrical wiring device designed for four-way switching applications. It features a rocker actuator with positive snap action and supports 15A at 120/277V AC. Suitable for indoor dry environments, this switch is ideal for lighting solutions and electrical distributors requiring reliable wire and cable connections. The device is push back and side wired with terminal screw connections, making it compatible with standard residential wiring installations.
Specifications
- Application: Residential Wiring Devices
- Amperage Rating: 15A
- Voltage Rating: 120/277V AC
- Number of Poles: Four Way
- Contact Rating: Per UL 20
- Contact Configuration: 2 Position
- Operating Cycles: 30,000 Cycles
- Operating Temperature: Max Continuous 60°C, Minimum -20°C Without Impact
- Environmental Conditions: Indoor Dry unless protected by additional means
- Material: Composite
- Color: Ivory
- Width: 1.900 in
- Mounting: Screw Mount
- Connection: Terminal Screw
- Action: Positive Snap
- Actuator: Rocker
- Product Weight: 2.3500 lbs
- Country of Origin: China
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: RSD415I
Features
- Residential grade construction for reliable performance in home wiring
- Four-way switch configuration for complex lighting control circuits
- Push back and side wired design for flexible installation
- Positive snap action for tactile feedback and secure switching
- Composite material housing enhances durability and electrical insulation
- Terminal screw connections ensure secure wire attachment
- Designed for indoor dry environments, suitable for typical residential applications
- Complies with UL standards for contact rating and safety
