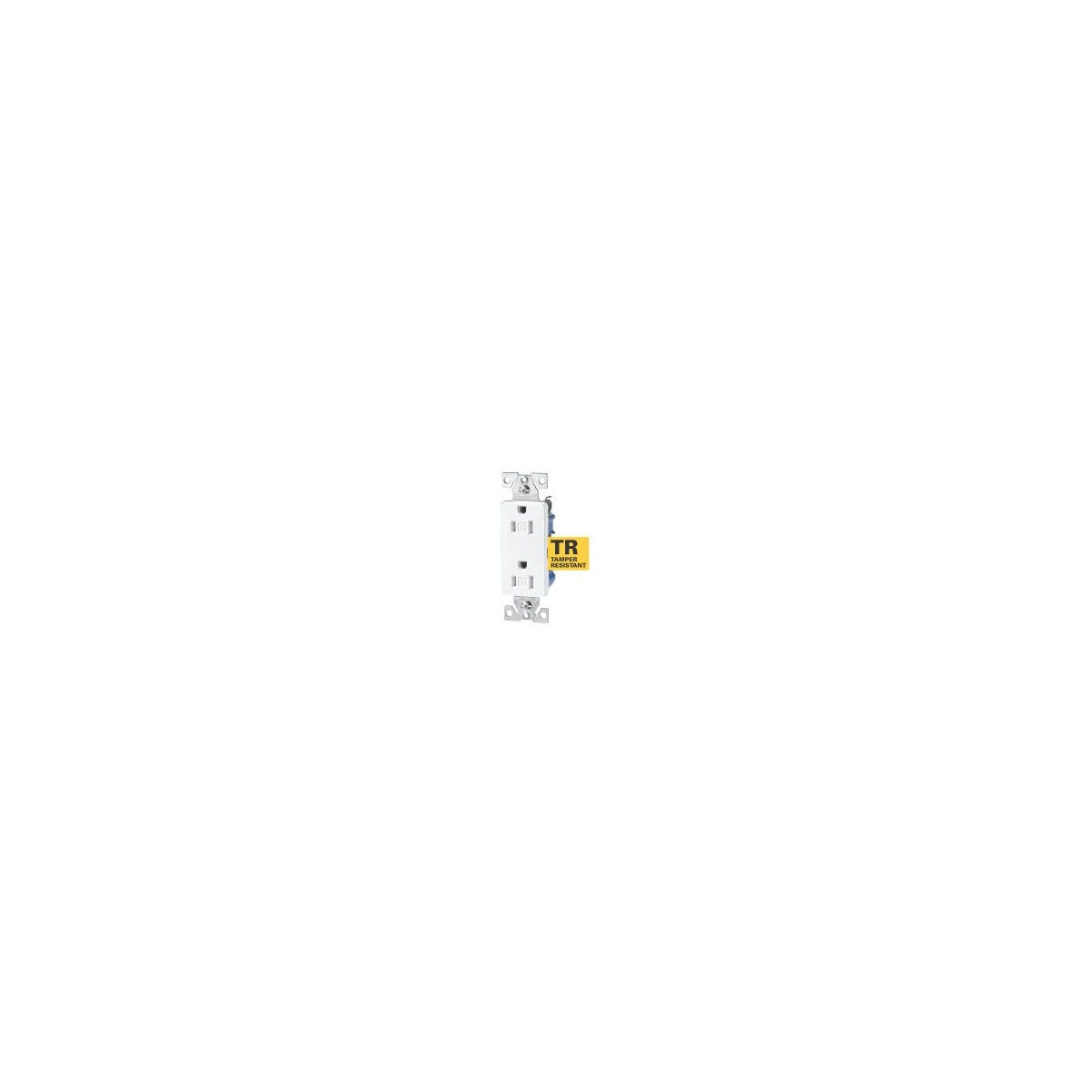

TR1107SG, Straight Blade Duplex Receptacle
SKU: #171955
Part: #TR1107SG
UPC: 032664745249

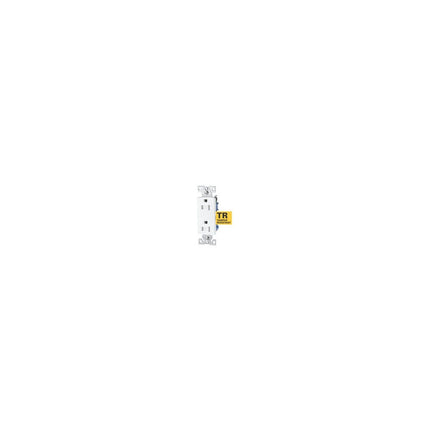

TR1107SG, Straight Blade Duplex Receptacle
SKU: #171955
Part: #TR1107SG
UPC: 032664745249
Description
TR1107SG Straight Blade Duplex Receptacle – Residential Grade Tamper Resistant Receptacle
The TR1107SG is a residential grade, tamper resistant straight blade duplex receptacle designed for safe and reliable electrical distribution in residential applications. Manufactured by Cooper Wiring Devices, it features a 2-pole, 3-wire grounding configuration rated for 15 amperes at 125 volts AC. This device is suitable for use in new residential construction, remodels, and retrofit projects, ensuring compliance with 2017 NEC Article 406.12. The receptacle is constructed with a durable PVC thermoplastic face and back body, providing impact resistance and longevity. It supports push-in wiring terminals for #14 solid wire and side wire terminals for up to #10 solid or stranded wire, facilitating quick and secure installation. This product is an ideal solution for electrical distributors and lighting solution providers offering safe, code-compliant wire and cable accessories.
Specifications
- Manufacturer: Cooper Wiring Devices
- Manufacturer Part #: TR1107SG
- Grade: Residential
- Current Rating: 15 amperes
- Voltage Rating: 125V AC
- Poles: 2
- Wires: 3
- Grounding: Grounding
- Material: PVC thermoplastic
- Wiring Scheme: Push-in and side wire terminals
- Dimensions: 4.19" height x 1.30" width x 0.69" depth (106.5 mm x 33 mm x 17.5 mm)
- Product Weight: 0.1450 lbs
- UL Listed to UL498, file no. E15058
- Certified to CSA C22.2 No. 42 and NOM/ANSI certified
- Temperature Rating: -20ºC to 60ºC (-4ºF to 140ºF)
- Dielectric Voltage Withstand: 2000V per UL498
- Tamper Resistant: UL Listed safety shutter system prevents insertion of foreign objects
Features
- Complies with 2017 NEC Article 406.12 for tamper resistant receptacles
- Durable impact-resistant thermoplastic face and back body, virtually unbreakable
- Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
- Terminal screws are backed out and ready to wire
- Extra-long and extra-wide mounting straps for secure installation
- Push-in terminals accept #14 AWG solid wire for quick wiring
- Side-wire terminals accept up to #10 AWG solid or stranded wire for flexibility
- Double-wipe ground contacts ensure long-term ground retention
- Visual "TR" mold mark for quick identification of tamper resistant feature
