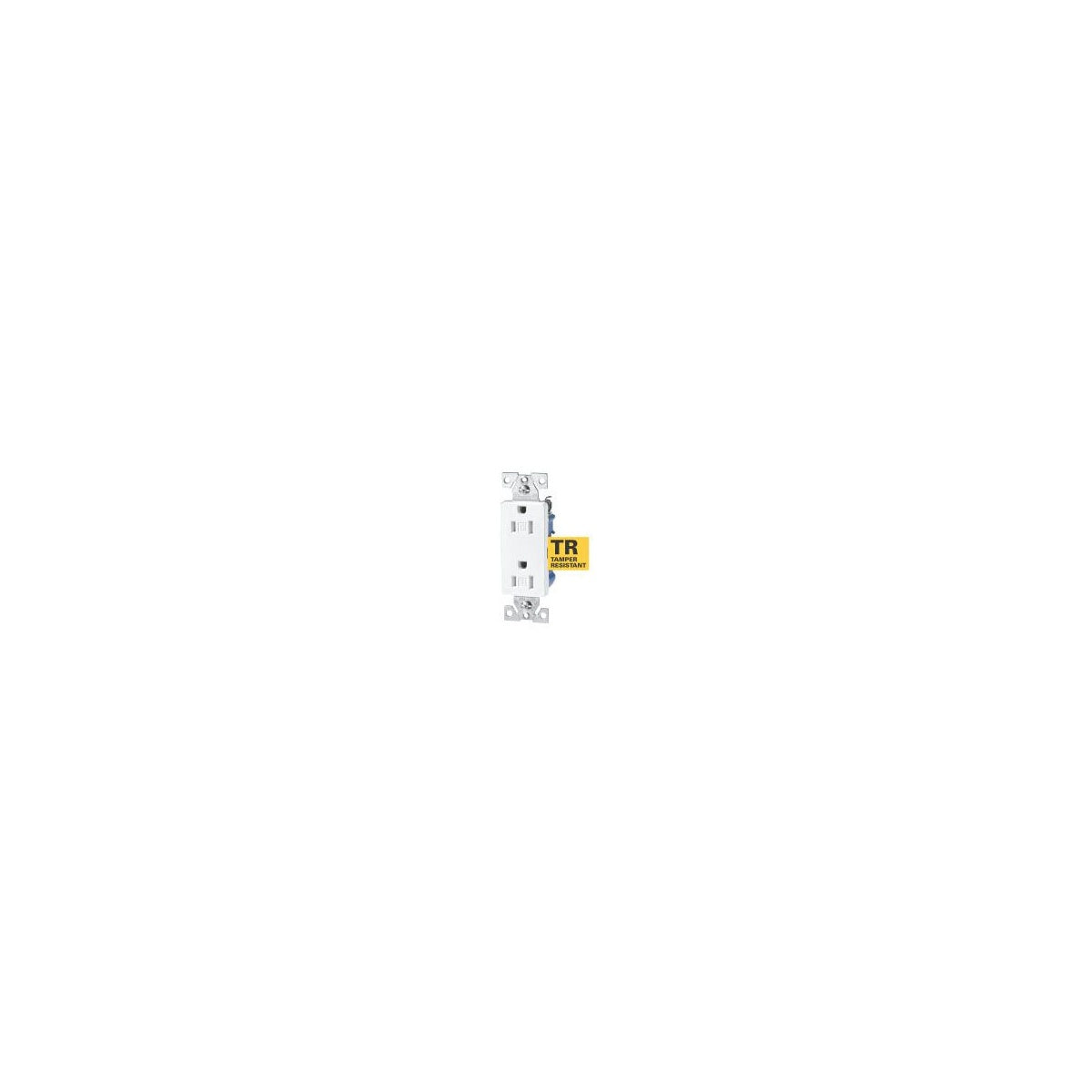

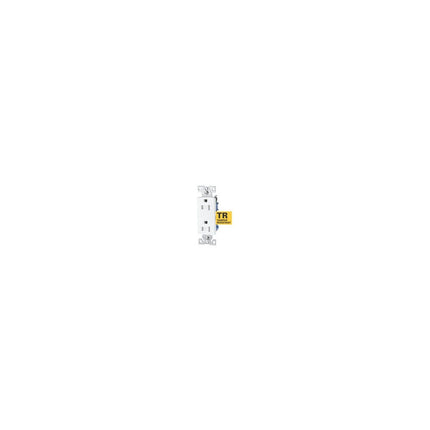

TR1107RB, Straight Blade Duplex Receptacle – Tamper Resistant Duplex Receptacle

The TR1107RB is a residential grade, tamper resistant straight blade duplex receptacle designed for secure electrical connections in residential wiring applications. Manufactured by Cooper Wiring Devices and distributed by Eaton, this device supports 15 amperes at 125 volts AC and features a 2-pole, 3-wire grounding configuration. It is suitable for use in new residential construction, remodels, apartments, condominiums, and other living spaces, ensuring compliance with 2017 NEC Article 406.12 for tamper resistant receptacles. The receptacle is constructed with a durable PVC thermoplastic body in an oil rubbed bronze finish, providing impact resistance and long-term durability.

Specifications

• Manufacturer: Cooper Wiring Devices
• Manufacturer Part #: TR1107RB
• Current Rating: 15 amperes
• Voltage Rating: 125V AC
• Poles: 2
• Wires: 3
• Grounding: Yes
• Grade: Residential
• Material: PVC
• Color: Bronze (Oil Rubbed Bronze)
• Wiring Scheme: Push-in terminals accept #14 solid wire; side wire terminals accept up to #10 AWG solid or stranded wire
• Product Weight: 0.1450 lbs

Features

• UL Listed tamper resistant safety shutter system prevents insertion of foreign objects, opening only with simultaneous insertion of 2 plug blades
• Complies with 2017 NEC Article 406.12 for tamper resistant receptacles in residential applications
• High impact-resistant thermoplastic face and back body designed to be virtually unbreakable
• Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
• Terminal screws are backed out and ready to wire for ease of installation
• Extra-long and extra-wide galvanized steel mounting straps for secure installation
• Double-wipe ground contacts ensure long-term ground retention
