Description

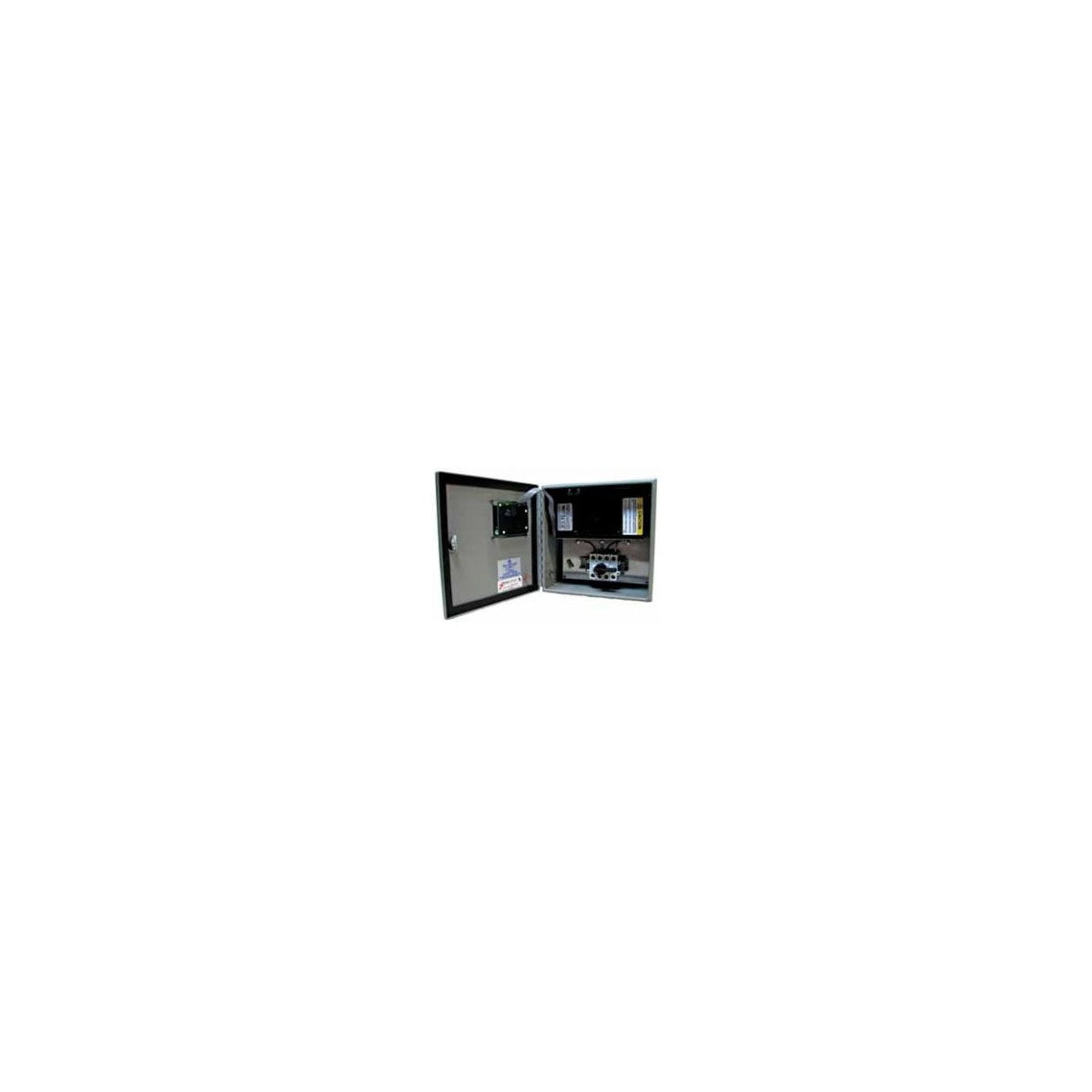

TPS3C12200X02 Surge Protective Device – Electrical Surge Protection
The TPS3C12200X02 is a Type 2 Surge Protective Device (SPD) designed for external mounting on electrical distribution equipment. It provides reliable surge protection for 3-phase, 4-wire systems with a 120/208 Volt AC rating. Suitable for line side or load side applications, this device is ideal for electrical distributors, lighting solutions providers, and switchgear suppliers seeking robust protection against transient voltage surges in commercial and industrial environments.
Specifications
- Voltage Rating: 120/208 Volt AC
- Input Current: 20 Kiloamp
- Frequency Rating: 47 to 63 Hertz
- Circuit Configuration: 3-Phase Star 4-Wire with Ground
- Surge Current per Phase: 200 Kiloamp
- Modes of Protection: L-N, L-L, L-G, N-G
- Response Time: Less than 1 Nanosecond
- Noise Attenuation: -50 Decibel at 10 Kilo Hertz to 100 Mega Hertz
- Connection Type: Wire leads, #8 AWG to 1/0
- Operating Temperature: -15 to 140 °F
- Enclosure: NEMA 1/12/3R/4 Steel
- Dimensions (W x H x D): 12 in x 7 in x 12 in
- Product Weight: 21.7 lbs
- Short Circuit Current Rating (SCCR): 200 Kiloamp
- Maximum Continuous Operating Voltage (MCOV): 150 Volt
- Relative Humidity Range: 0 to 95% non-condensing
- Repetitive Impulse Capability: 5,000 hits
- Mounting: External (wall-mounted)
- Material: Steel
- Certifications: UL 1449 3rd Edition, UL 1283, CE, REACH Compliant
Features
- Large block, individually fused, thermally protected 50kA MOVs for enhanced protection
- Solid state bi-directional operation with EMI/RFI filtering
- Active tracking noise attenuation up to -50 dB from 10 kHz to 100 MHz
- 100% monitoring of every MOV including neutral to ground
- LED indicators, audible alarm with silence switch and test button, and dry contacts for monitoring
- Includes surge counter for tracking surge events
- Designed and tested per ANSI/IEEE C62.41.1-2002, C62.41.2-2002, C62.45-2002, NEC Article 285, IEC 61643 standards
- 10-year warranty
