TPS3C0910D00, Surge Protective Device
SKU: #17939
Part: #TPS3C0910D00
UPC: 040892249927
TPS3C0910D00, Surge Protective Device
SKU: #17939
Part: #TPS3C0910D00
UPC: 040892249927
Total Price: $1,243.71 per each Sold in increments of 1 each
Next day delivery
Description

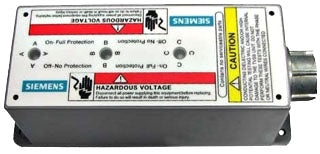

TPS3C0910D00 Surge Protective Device for Electrical Distribution
The TPS3C0910D00 is a Type 1 Surge Protective Device (SPD) designed for use in electrical distribution systems, lighting panelboards, power panelboards, and busway systems. It mounts externally to electrical distribution equipment or internally to P1, P2, and P3 panelboards, providing reliable surge protection for commercial and industrial electrical installations. This device is suitable for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers seeking robust surge protection solutions compliant with industry standards.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: TPS3C0910D00
- Product Weight: 3 lb (1.4 kg)
- Mounting Type: Chase Nipple
- Surge Current Rating Per Phase: 100 kA (L-N), 50 kA (L-G), 50 kA (N-G)
- Operating Temperature Range: -40°C to +85°C (-40°F to 185°F)
- Operating Frequency: 47-63 Hz
- Relative Humidity Range: 0-95% non-condensing
- Enclosure: Standard NEMA 4X polycarbonate (UL 746C (f1), UL 94-5VA)
- Wire Size: Prewired with 3 feet of #10 AWG cable
- Dimensions: 8.3" x 3.6" x 3.0" (211 mm x 91 mm x 77 mm)
- UL 1449 4th Edition Listed Type 1, CSA 22.2 No. 269.1 certified
- UL96A Lightning Protection Master Label compliant (@20kA In)
Features
- Type 1 SPD suitable for line or load side of main disconnect
- Mounts external to electrical distribution equipment or internal to P1, P2, and P3 panelboards
- Large block, individually fused, thermally protected 50 kA MOVs
- 20 kA nominal discharge current (In) for most models
- 200 kA short circuit current rating (SCCR) for most models
- 100% monitoring of every MOV including neutral to ground
- Solid state bi-directional operation with less than 1 nanosecond response time
- Repetitive impulse withstand: 5,000 hits
- Weatherproof hub included
- LED indicators for SPD status monitoring
- Compliant with ANSI/IEEE C62.41.1-2002, C62.41.2-2002, C62.45-2002, C62.62-2010, C62.72-2007, CSA C22.2 No. 269.1, NEC Article 285, IEC 61643, and NEMA LS-1 standards
- 10 year warranty
