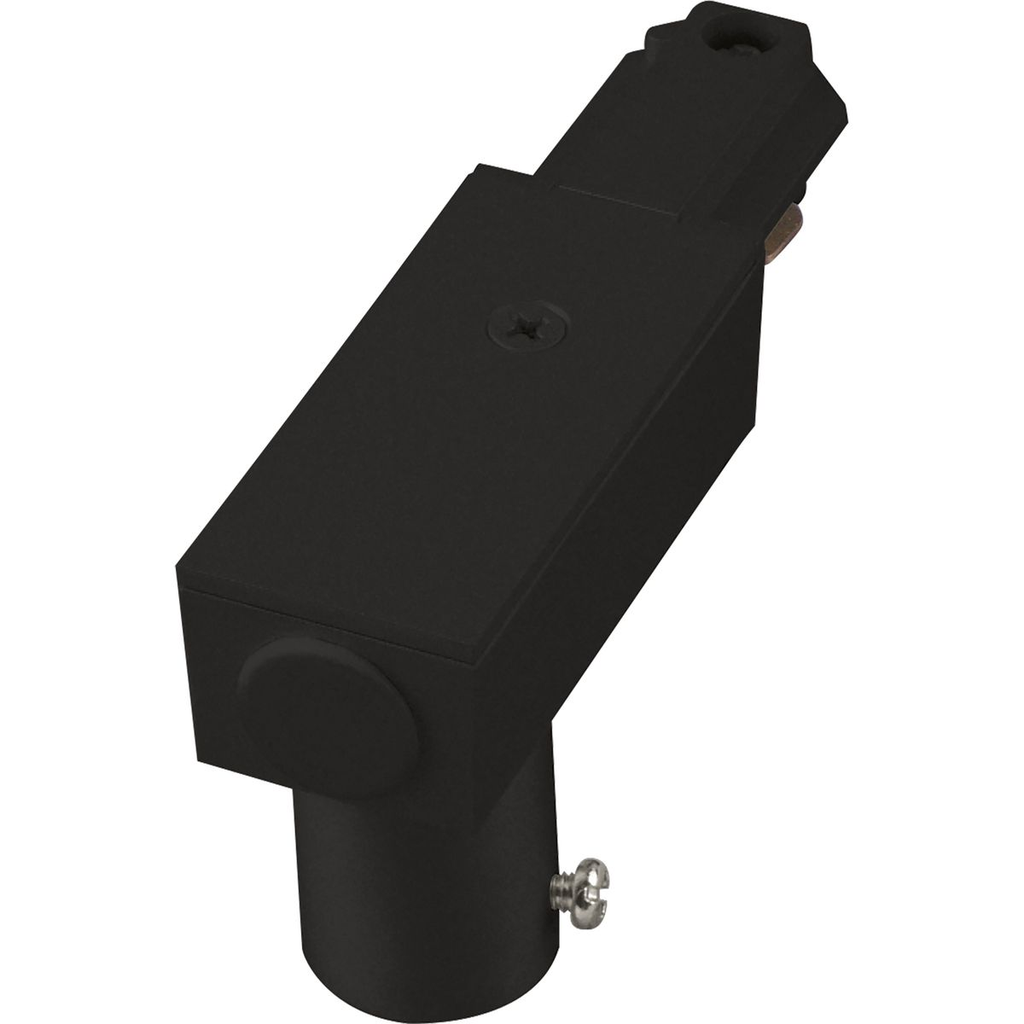

Top and End Feed for Romex Track Light Accessories

The Alpha Trak top and end feed is designed for use with non-metallic wire, 3/8" Greenfield, or 1/2" EMT conduit. This component is essential for electrical distributors and lighting solutions providers integrating track lighting systems. It serves as a power feed at the end or top of the track, facilitating secure electrical connections within track systems supplied by switchgear suppliers or wire and cable distributors.

Specifications

• Conductor Material: Copper
• Manufacturer: Progress Lighting
• Manufacturer Part #: P8746-31
• Finish: Black (painted)
• Material: Plastic
• Mounting: End of track
• Dimensions: 3 in (Length) x 3 in (Width) x 2 in (Height)
• Electrical: Single-circuit track mounted, 120V
• Product Weight: 0.25 lb
• Country of Origin: China
• UPC: 785247874613

Features

• Compatible with Alpha Trak single-circuit track systems
• Designed for non-metallic wire and conduit sizes 3/8" Greenfield or 1/2" EMT
• Provides secure top or end feed power connection for track lighting
• Durable black painted finish for aesthetic integration with track systems
• Lightweight plastic construction for ease of installation
• Supports 120V single-circuit track mounting
• 1-year manufacturer warranty
