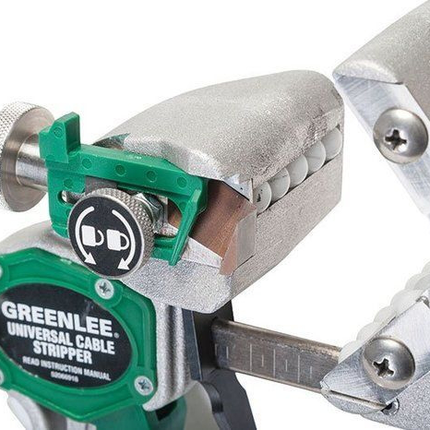

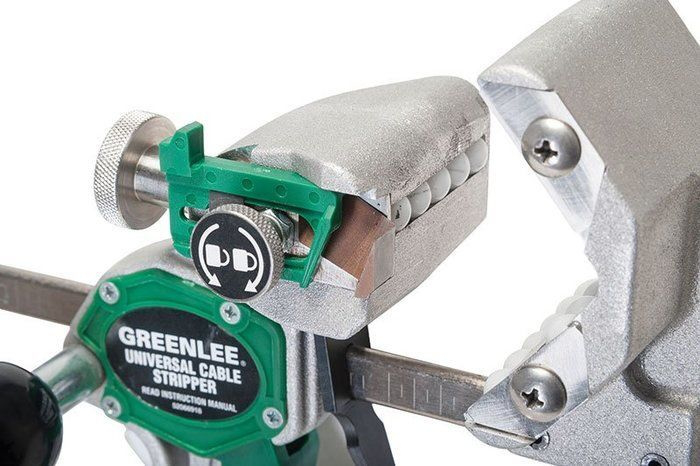

Tool Kit, Universal Full - EPR Type Universal Cable Stripper

The Greenlee Tool Kit, Universal Full - EPR Type (Model JRF-4EPR) is a precision universal cable stripper designed for electrical distributors and switchgear suppliers working with a wide range of wire and cable sizes. This tool is engineered to remove encapsulated outer jackets over various insulation shield constructions, including concentric, tape, flat strap, LC, and CLX, as well as primary and secondary insulation. It supports cable diameters from 1/2 inch to 3 inches, making it suitable for primary and secondary power cables. The tool’s aluminum construction ensures durability and reliability in demanding electrical and lighting solutions applications.

Specifications

• Material: Aluminum
• Cable Outer Diameter Range: 1/2" to 3" (12.7 mm to 76.2 mm)
• Jacket/Insulation Maximum Thickness: 435 mils (11.0 mm)
• Product Weight: 2.15 lbs
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer Part #: JRF-4EPR
• UPC: 783310027461

Features

• Large capacity clamp jaw accommodates a wide range of cable sizes from 1/2" to 3" diameter.
• Ball-bearing clamp reduces the force required to rotate the tool around the cable, improving ergonomics.
• Precision adjustable EPR blade designed specifically for spongy EPR insulation, ensuring accurate and clean stripping.
• Tension trigger provides 150 lbs of clamping force to securely capture the cable for precise blade setting.
• Delrin‚Ñ¢ ball bearing rollers facilitate smooth movement and reduce operator fatigue.
• Safe alternative to traditional blades, minimizing risk during cable preparation.
• Designed and manufactured in the USA, ensuring quality and compliance with industry standards.

Downloads & Links

• Operator's Manual
• Brochure
