Features

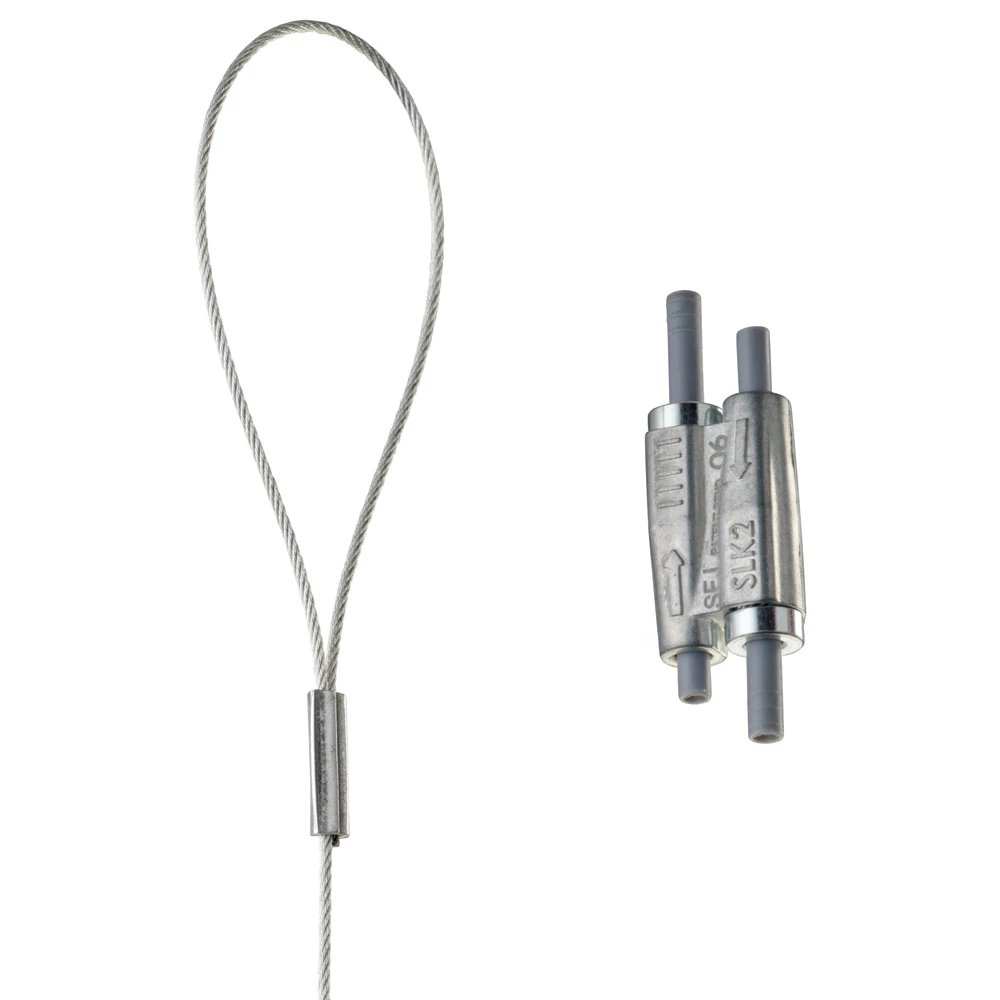

• Complete system includes wire, locking device and pre-assembled loop end fitting
• Easy and flexible solution attaches to building structures
• Wire rope wraps around structure and through loop for quick installation
• Ideal for attaching to purlins, beams and other structural members
• Works well in tight or confined spaces
• Loop attaches directly to pipe, ductwork or other hanging assemblies

Certifications

• cUL - CSA-C22.2 No. 250.0
• UL - ANSI/UL 1598
• SMACNA - HVAC‐DCS 3rd edition, Chapter 5, Tables 5‐1 and 5‐1M

Specifications

• Length: 19.00 millimetre
• Width: 13.00 millimetre
• Height: 55.00 millimetre
• Weight: 0.06 kilogram
• Material: Steel
• Finish: Electrogalvanized
• Static Load Safety Factor: 5:1
• Wire Rope Diameter: 1.5-1.50
• Complies With: SMACNA HVAC-DCS
• Wire Rope Length: 3
• Length (L): 101.6-101.60
• Height (H): 55-55.00
• Width (W): 19-19.00
• Thickness (T): 12.5-12.50
• Static Load (F): 195
• Sub Brand: CADDY
