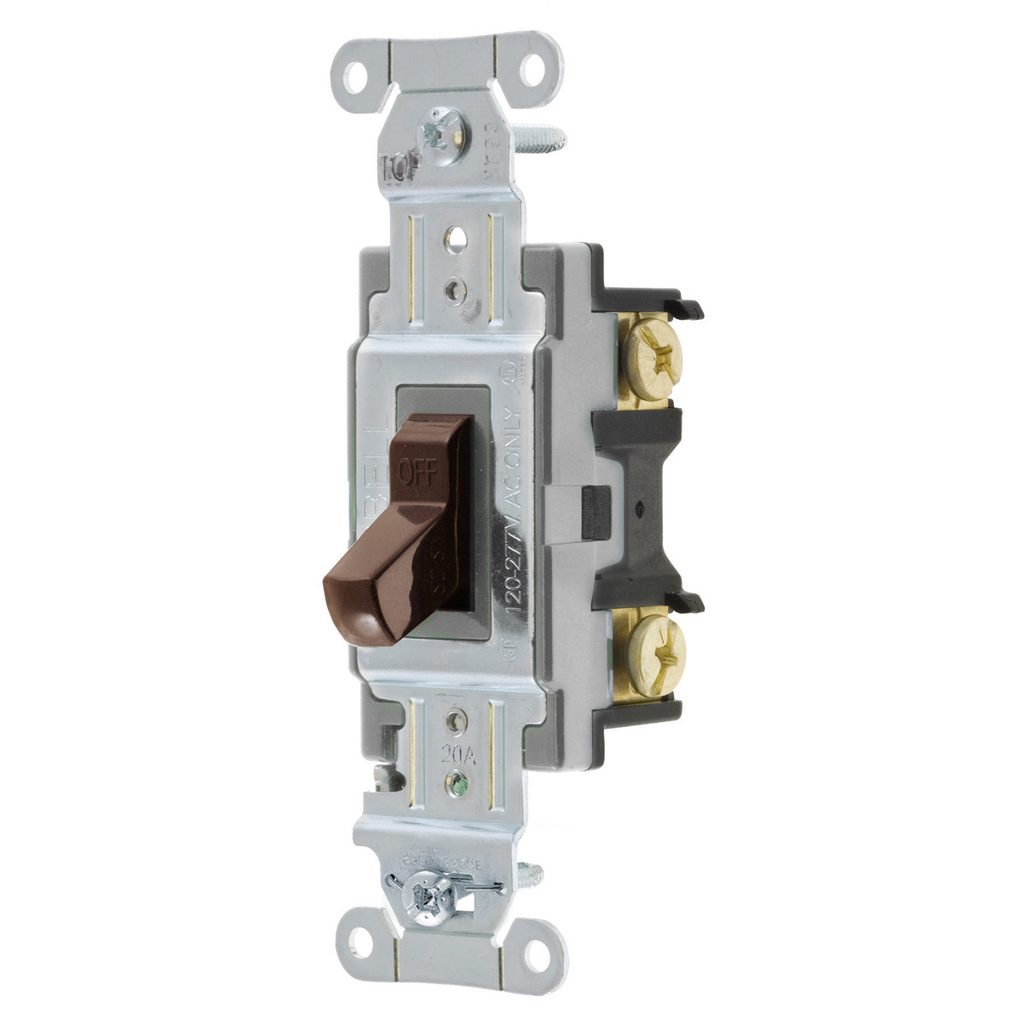

Toggle Switch, Single Pole 20A 120/277V - Commercial Grade Electrical Switch

This toggle switch is a commercial specification grade single-pole switch designed for electrical distribution and lighting solutions in commercial environments. It supports 20 amperes at 120/277 volts AC and features side wiring only. Suitable for indoor dry environments unless additional protection is applied, it is ideal for use by electrical distributors and switchgear suppliers requiring reliable, specification-grade components.

Specifications

• Application: Commercial Spec Grade
• Current: 20 amperes
• Amperage Rating: 20 A
• Voltage Rating: 120/277V AC
• Number of Poles: Single Pole
• Contact Configuration: Two Position
• Connection: Side Wired Only
• Material: Nylon Toggle, Thermoplastic Base and Top
• Mounting: Screw Mount
• Contact Rating: Per UL 20
• Operating Cycles: 50,000 Cycles
• Environmental Conditions: Indoor Dry unless protected by additional means
• Width: 1.9 in
• Action: Positive Snap
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: CS120
• Product Weight: 0.1500 lbs

Features

• Thread cleaning captive mounting screw for secure installation
• Abuse resistant nylon toggle for durability
• Steel, zinc plated bridge is corrosion resistant
• Auto grounding mounting bridge
• Silver alloy contacts with brass terminal screws
• UL Listed and CSA Certified
• Dielectric voltage withstands 1500V AC minimum for 1 minute
• Maximum continuous current of 20A with temperature rise limited to 30°C
• Terminal accommodations for #14 AWG to #10 AWG solid and stranded copper wire
• Flammability rating UL 94V-2
• Operating temperature range from -40°C to 75°C continuous
