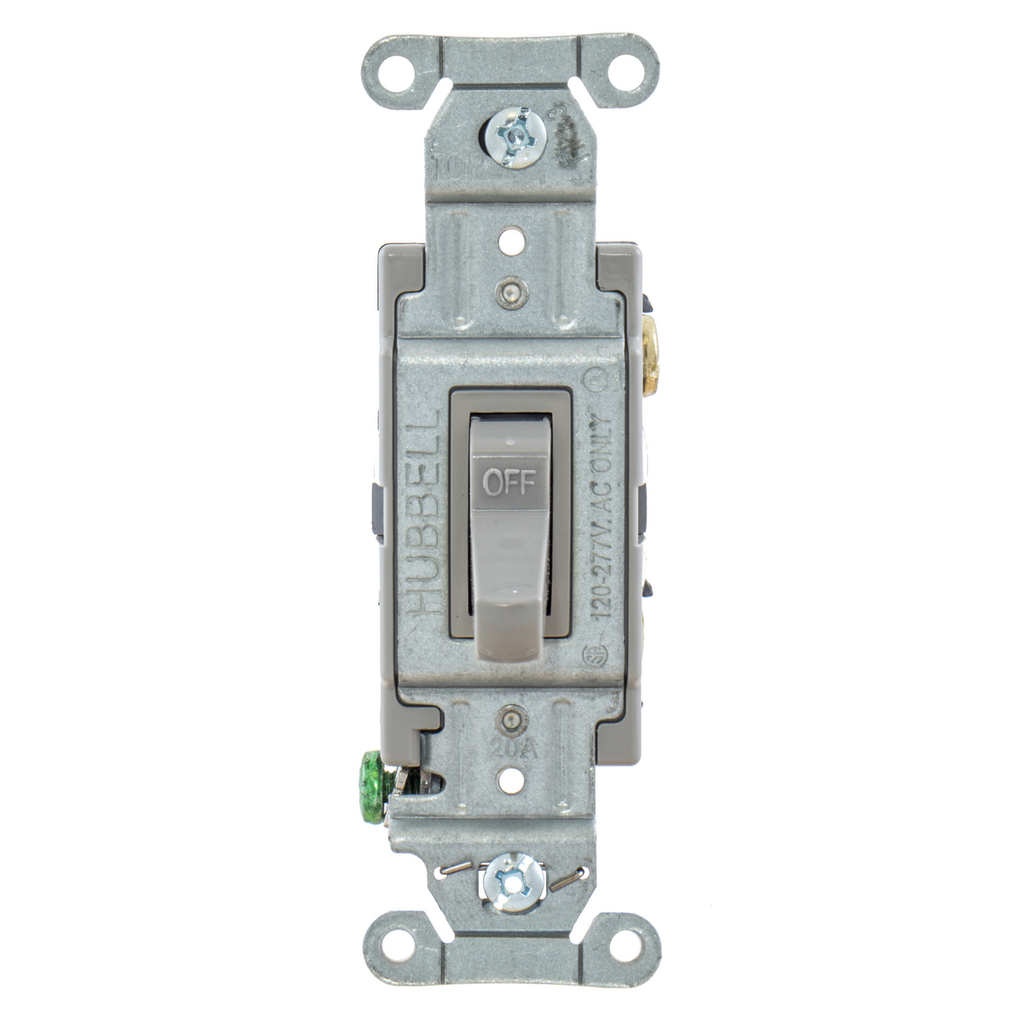

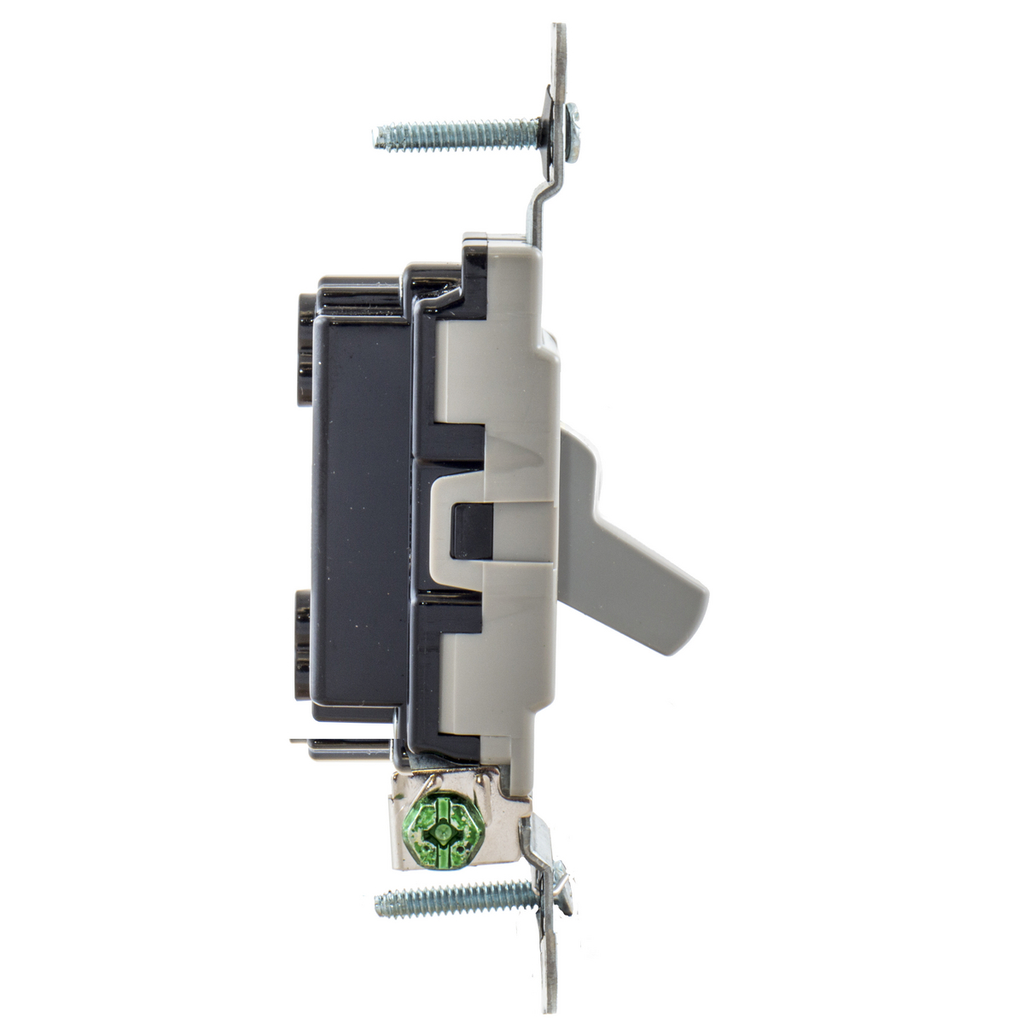

Toggle Switch, Single Pole 20A 120/277V - Commercial Grade Electrical Switch

This toggle switch is designed for commercial spec grade applications, providing reliable on/off control for electrical circuits. Suitable for indoor dry environments unless additional protection is applied, it is ideal for electrical distributors and lighting solutions requiring robust wire and cable switching components. The switch supports a single-pole configuration with a 20-ampere rating at 120/277V AC, making it compatible with a variety of commercial electrical installations.

Specifications

• Application: Commercial Spec Grade
• Amperage Rating: 20 A
• Current: 20 amperes
• Voltage: 120/277V AC
• Number of Poles: Single Pole
• Contact Configuration: Two Position
• Operating Cycles: 50,000 Cycles

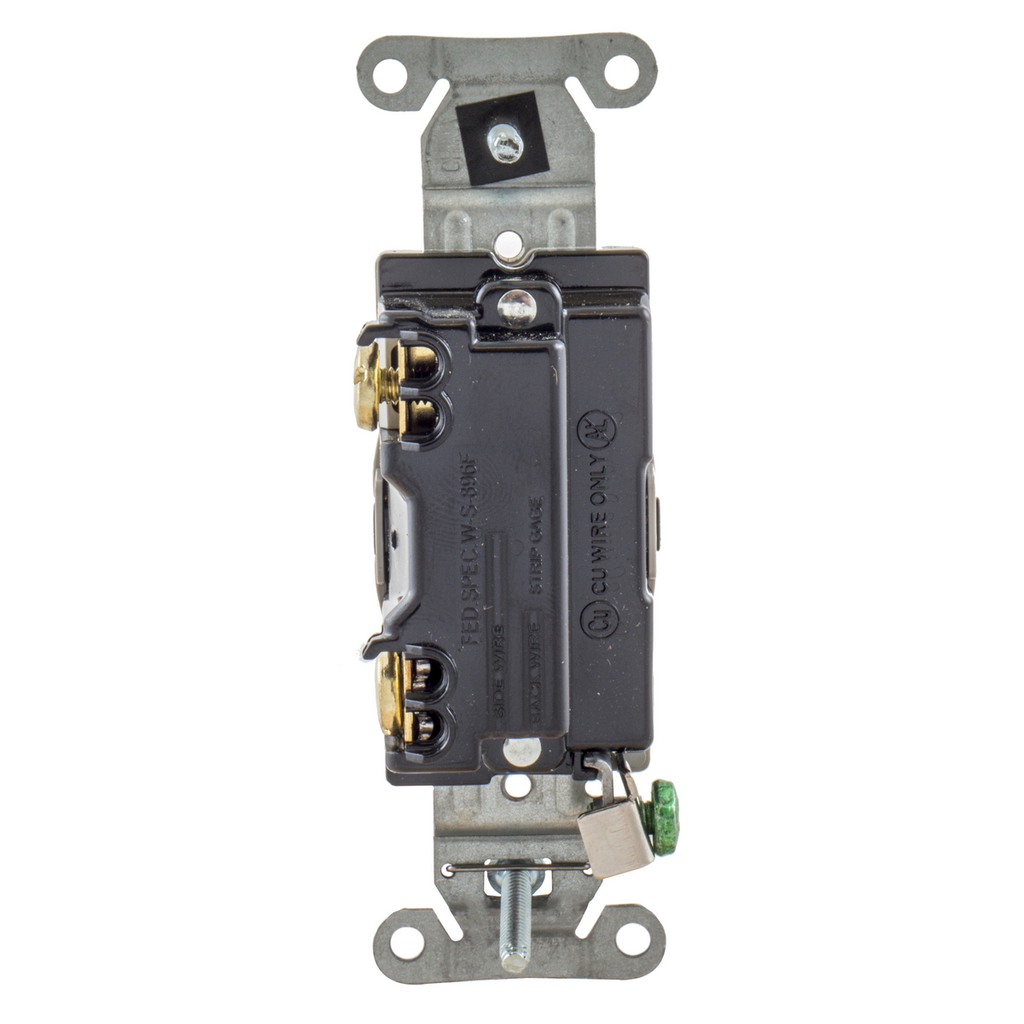

• Connection: Back and Side Wired
• Mounting: Screw Mount
• Material: Nylon
• Color: Gray
• Width: 1.900 in
• Contact Rating: Per UL 20
• Environmental Conditions: Indoor Dry unless protected by additional means
• Manufacturer: Hubbell Wiring Device-Kellems
• Country of Origin: China

Features

• Positive Snap Action for reliable switching performance
• Back and side wiring options for flexible installation
• Commercial grade durability suitable for heavy use
• Compact design with screw mount for secure attachment

Downloads & Links

• Sales Drawing Asset Reference
• CSB120GY AutoCAD Drawing
• Warranty Document Asset Reference
• Catalog Page Asset Reference
• Spec Sheet
• Catalog Full Asset Reference
