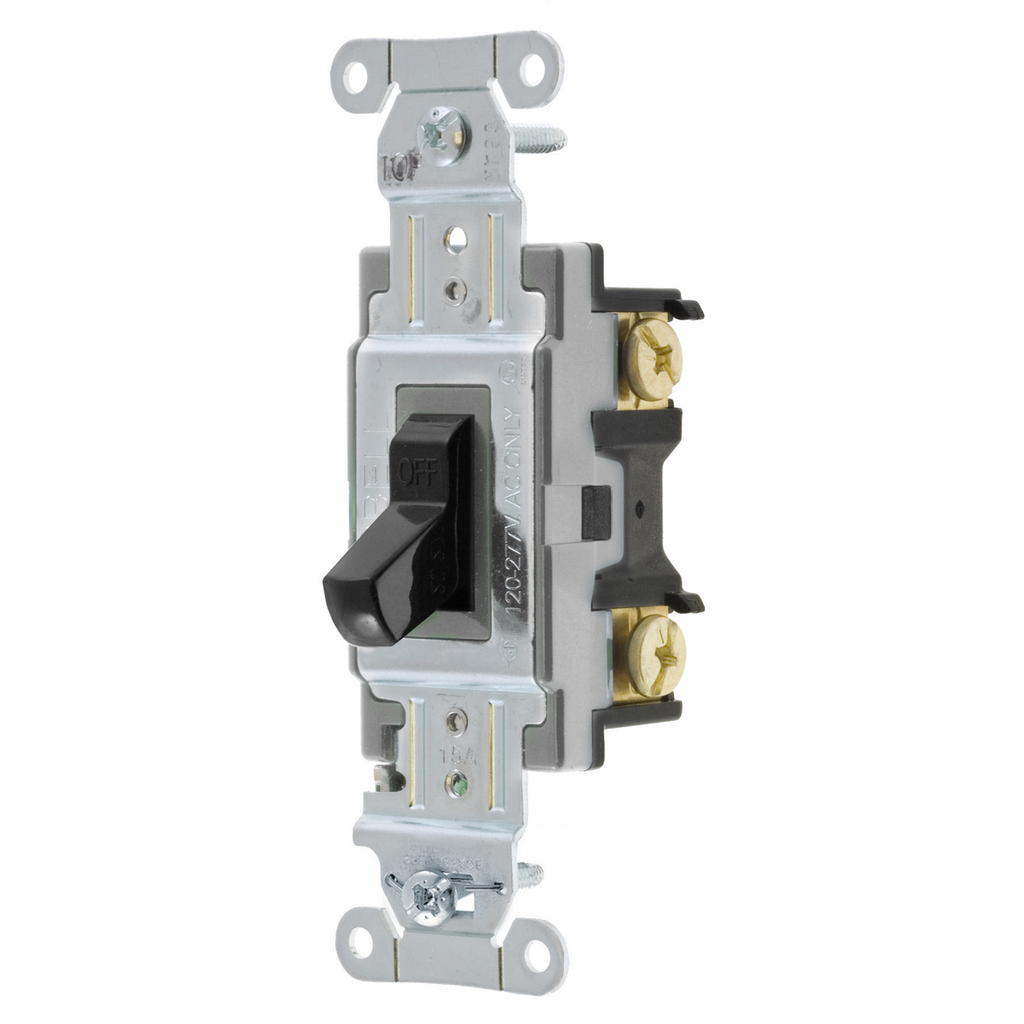

Toggle Switch, Single Pole 15A 120/277V – Commercial Grade Electrical Switch

This toggle switch is a commercial spec grade electrical device designed for reliable switching in lighting solutions and electrical distribution applications. It supports single-pole operation with a 15 ampere rating at 120/277 volts AC, suitable for commercial indoor dry environments. The switch features back and side wiring for flexible installation and is constructed with durable nylon material and a positive snap action for secure operation.

Specifications

• Application: Commercial Spec Grade
• Amperage Rating: 15 A
• Voltage Rating: 120/277 V AC
• Number of Poles: Single Pole
• Connection: Back and Side Wired
• Action: Positive Snap
• Contact Configuration: Two Position
• Contact Rating: Per UL 20
• Operating Cycles: 50,000 Cycles
• Material: Nylon
• Mounting: Screw Mount
• Color: Black
• Width: 1.910 in
• Product Weight: 0.1500 lbs
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: CSB115BK

Features

• Commercial grade construction for durability in demanding applications
• Positive snap action for reliable switching performance
• Back and side wiring options for versatile installation
• UL 20 contact rating ensures compliance with safety standards
• Designed for indoor dry environments, suitable for lighting and electrical distribution
