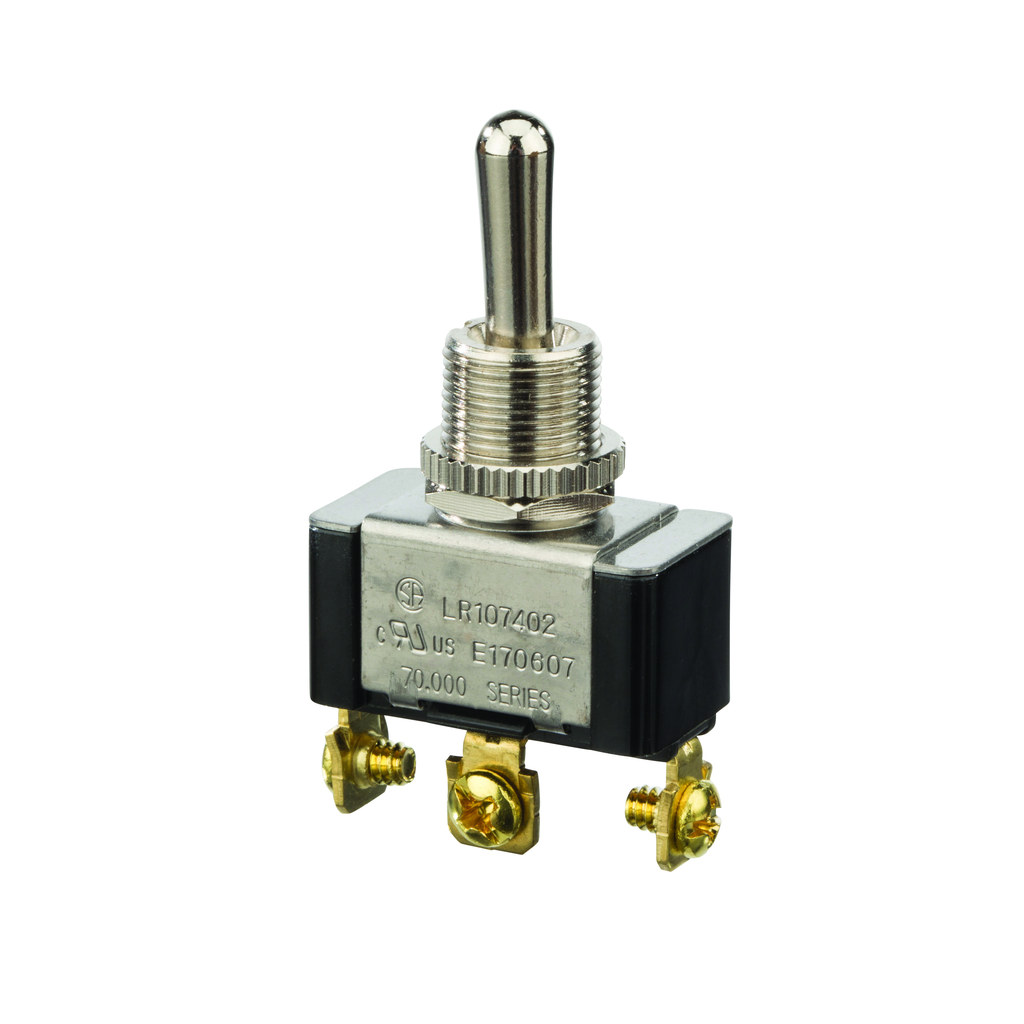

Toggle Switch Momentary SPST On-Off-(On) – Electrical Toggle Switch

This NSI Industries toggle switch is designed for motor-equipment control applications, providing reliable momentary switching functionality. It is suitable for use by electrical distributors and switchgear suppliers seeking durable, compact toggle switches for wire and cable control circuits and lighting solutions.

Specifications

• Contact Configuration: SPST
• Action: Toggle Switch
• Contact Rating: 15 Amp (125 VAC) - 10 Amp (250 VAC)
• Amperage Rating: 15 Amp (125 VAC) - 10 Amp (250 VAC)
• Number of Poles: 1
• Material: Brass, Nickel
• Mounting: Snap Mount
• Dimensions (L x W x H): 0.803 in x 0.465 in x 0.67 in
• Product Weight: 0.07 lbs
• Country of Origin: Taiwan
• Manufacturer: NSI Industries
• Manufacturer Part #: 78180TS
• Application: Motor-Equipment Control

Features

• Momentary toggle action with SPST contact configuration
• Screw terminal connections for secure wiring
• Brass and nickel construction for corrosion resistance and durability
• Compact snap mount design for easy installation
• Rated for 15 Amp at 125 VAC and 10 Amp at 250 VAC

Downloads & Links

• Spec Sheet
