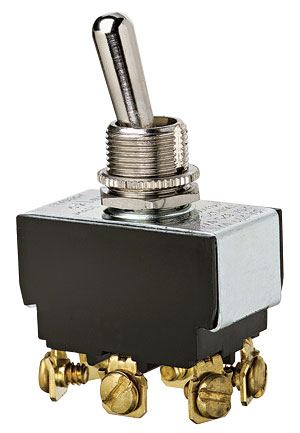

Toggle Switch, Heavy-Duty, DPDT, On-On, Screw
SKU: #212055
Part: #774015
UPC: 783250573578
Toggle Switch, Heavy-Duty, DPDT, On-On, Screw
SKU: #212055
Part: #774015
UPC: 783250573578
Next day delivery
Description
Toggle Switch, Heavy-Duty, DPDT, On-On, Screw – Heavy-Duty Toggle Switch
This heavy-duty DPDT toggle switch by IDEAL Industries is designed for reliable electrical control in industrial and commercial applications. Suitable for power tool and motor control switch applications, it provides robust switching capability with durable construction. Electrical distributors and switchgear suppliers will find this switch appropriate for integration into lighting solutions, wire and cable assemblies, and control panels requiring dependable performance.
Specifications
- Manufacturer Part #: 774015
- Poles: Double Pole Double Throw (DPDT)
- Circuitry: On-On
- Termination Style: Screw
- Number of Terminals: 6
- Amps Rating: 20 Amps at 125 VAC, 10 Amps at 277 VAC
- Horsepower Rating: 1-1/2 HP at 125-250 VAC
- Dimensions: 1.30" L x 0.76" W x 0.80" H
- Dielectric Strength: 1500 volts
- Operating Temperature Range: 0 to 85 degrees Celsius (32°F to 185°F)
- Product Weight: 0.1000 lbs
- UPC: 783250573578
Features
- Heavy-duty construction for long-lasting mechanical life
- Rugged solid brass and nickel-plated bushings for durability
- 1/2 inch diameter mounting hole for standard panel installation
- Designed for use in power tool and motor control applications
- High dielectric strength of 1500 volts for enhanced electrical safety
