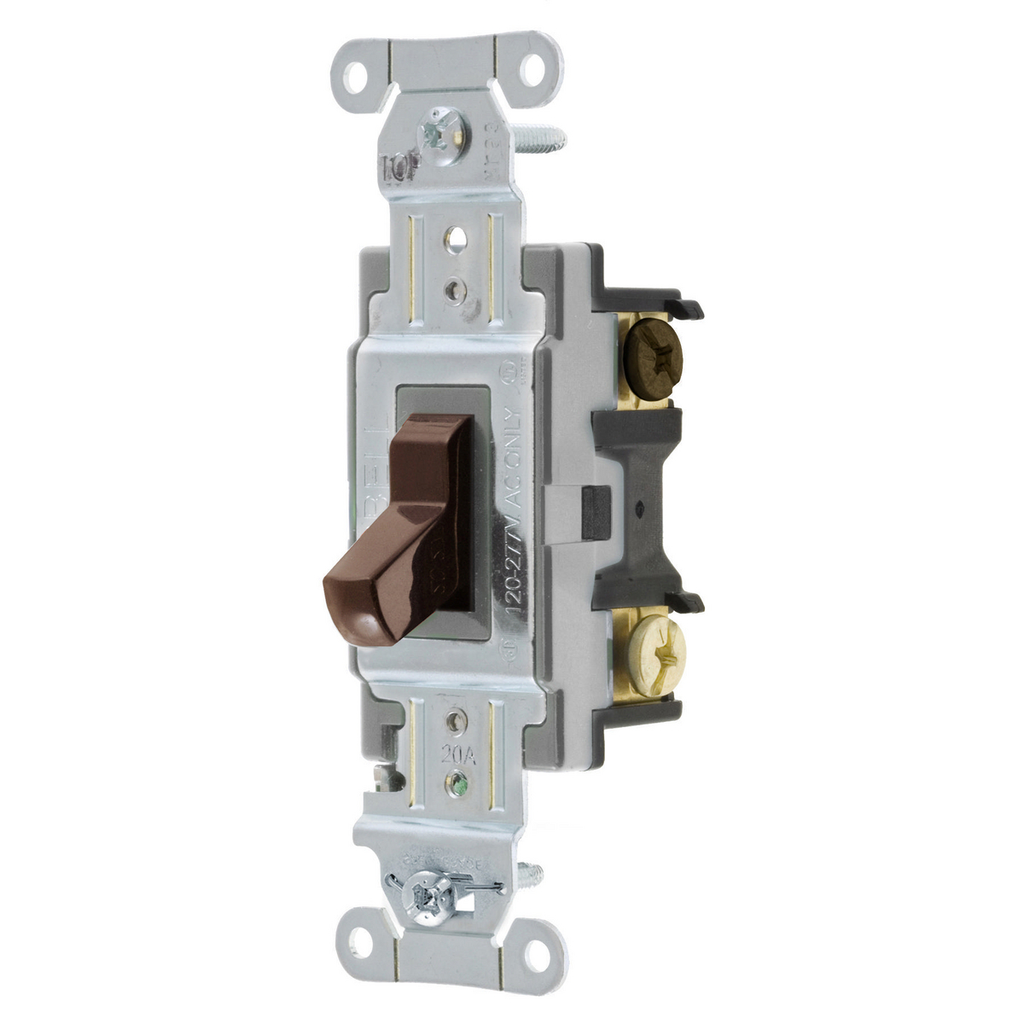

Toggle Switch, Four Way 20A 120/277V
SKU: #139803
Part: #CSB420
UPC: 783585154305
Toggle Switch, Four Way 20A 120/277V
SKU: #139803
Part: #CSB420
UPC: 783585154305
Next day delivery
Description
Toggle Switch, Four Way 20A 120/277V - Commercial Grade Electrical Switch
This Toggle Switch is a commercial spec grade, four-way switch designed for use in electrical distribution and lighting solutions. It supports 20 amperes at 120/277V AC and is suitable for indoor dry environments unless additional protection is provided. The switch is back and side wired, facilitating versatile installation options for wire and cable connections. It is ideal for applications requiring reliable switching control in commercial electrical systems, distributed by professional electrical distributors and switchgear suppliers.
Specifications
- Application: Commercial Spec Grade
- Current: 20 amperes
- Amperage Rating: 20 A
- Voltage Rating: 120/277V AC
- Action: DPDT (Double Pole Double Throw)
- Number of Poles: Double Pole
- Contact Configuration: Two Position
- Operating Cycles: 50,000 Cycles
- Connection: Back and Side Wired
- Mounting: Screw Mount
- Material: Nylon
- Color: Brown
- Width: 1.900 in
- Contact Rating: Per UL 20
- Environmental Conditions: Indoor Dry unless protected by additional means
- Enclosure: None
- Insulation: None
- Product Weight: 0.1500 lbs
- Country of Origin: China
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: CSB420
Features
- Commercial grade construction ensures durability for demanding electrical applications.
- Four-way toggle switch configuration allows complex switching control in lighting and electrical circuits.
- Back and side wiring options provide flexible installation methods.
- DPDT action supports double pole switching for enhanced circuit control.
- 50,000 operating cycles guarantee long service life under normal use.
- UL contact rating ensures compliance with safety standards.
- Screw mount design facilitates secure and stable installation.
