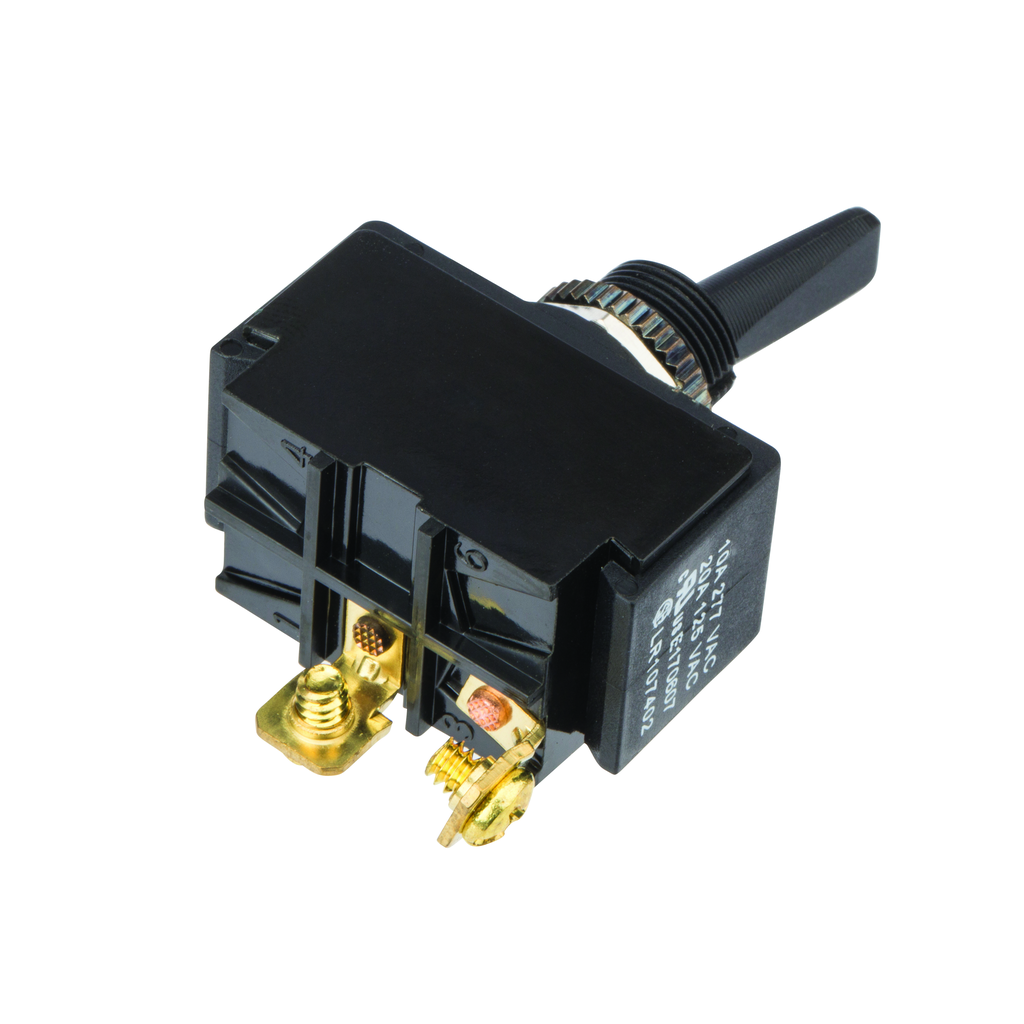

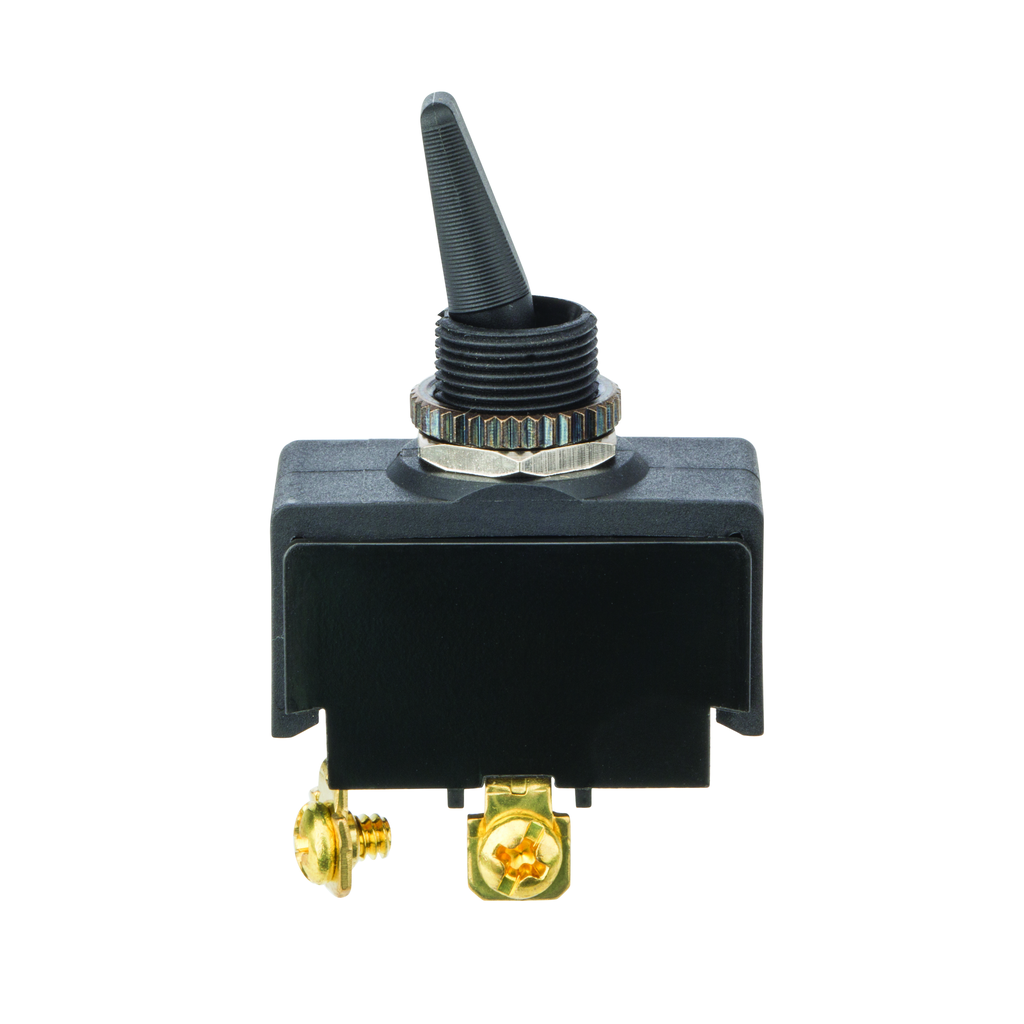

Toggle Switch Flat - NSI 78015TS Toggle Switch Flat

This NSI Industries Toggle Switch Flat (model 78015TS) is designed for motor-equipment control applications. It is a single-pole, single-throw (SPST) maintained contact switch featuring a flat nylon actuator and snap mount installation. Suitable for electrical distributors and switchgear suppliers, it offers reliable ON/OFF operation in lighting solutions, wire and cable systems, and control panels.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: 78015TS
• Contact Configuration: SPST
• Contact Rating: 20 Amp (125 VAC) - 10 Amp (250 VAC)
• Amperage Rating: 20 Amp (125 VAC) - 10 Amp (250 VAC)
• Number of Poles: 1
• Action: Toggle Switch
• Mounting: Snap Mount
• Dimensions (L x W x H): 1 in x 0.588 in x 1.342 in
• Product Weight: 0.0460 lbs
• Country of Origin: Taiwan
• Application: Motor-Equipment Control
• UPC/EAN: 662381780157

Features

• ON/OFF maintained contact operation
• Flat nylon screw connect actuator for durability
• Snap mount design for easy installation

Downloads & Links

• Spec Sheet
