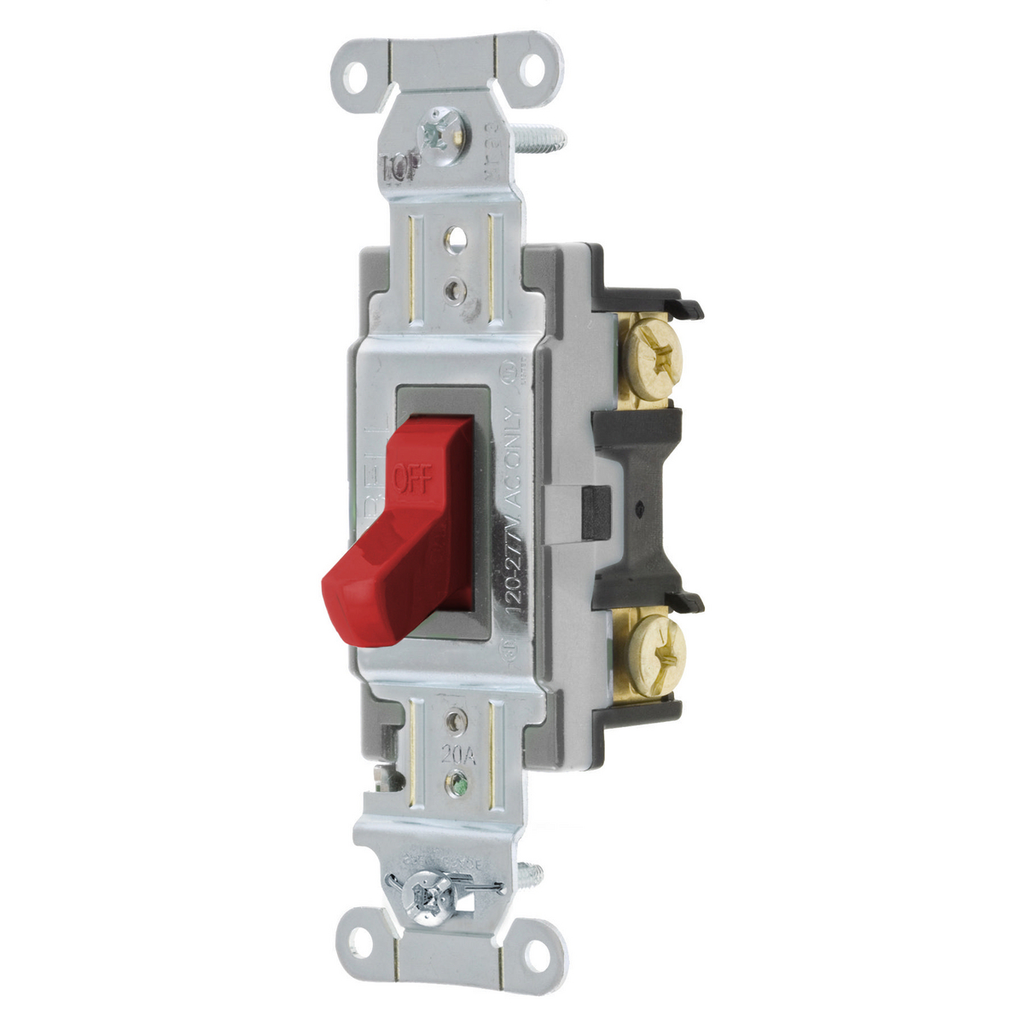

Toggle Switch, Double Pole 20A 120/277V - Commercial Grade Electrical Switch

This double-pole toggle switch is designed for commercial specification-grade applications, suitable for electrical distributors and lighting solutions requiring reliable switching of 20 amperes at 120/277 volts AC. It features back and side wiring options, making it compatible with various wiring configurations in commercial electrical installations.

Specifications

• Application: Commercial Spec Grade
• Current Rating: 20 amperes
• Voltage Rating: 120/277V AC
• Number of Poles: Double Pole
• Contact Configuration: Two Position
• Material: Nylon toggle; Thermoplastic base (black) and top (gray)
• Mounting: Screw Mount
• Connection: Back and Side Wired
• Contact Rating: Per UL 20
• Operating Cycles: 50,000 Cycles
• Width: 1.910 in
• Environmental Conditions: Indoor dry locations unless protected by additional means
• Dielectric Voltage Withstand: 1500V AC minimum for 1 minute
• Overload Capacity: Minimum 4.8 times rated current for 100 cycles
• Temperature Rise: 30°C maximum at rated current
• Terminal Accommodations: #14 AWG min. to #10 AWG max. solid and stranded copper wire only
• Flammability Rating: UL 94V-2
• Operating Temperature Range: -40°C to 75°C continuous
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part Number: CSB220R
• Color: Red
• Product Weight: 0.1500 lb

Features

• Thread cleaning captive mounting screw for secure installation
• Abuse resistant nylon toggle for durability
• Steel, zinc plated mounting bridge resistant to corrosion
• Silver alloy contacts for reliable conductivity
• Brass terminal screws and ground screw for secure connections
• Auto grounding mounting bridge for safety compliance
