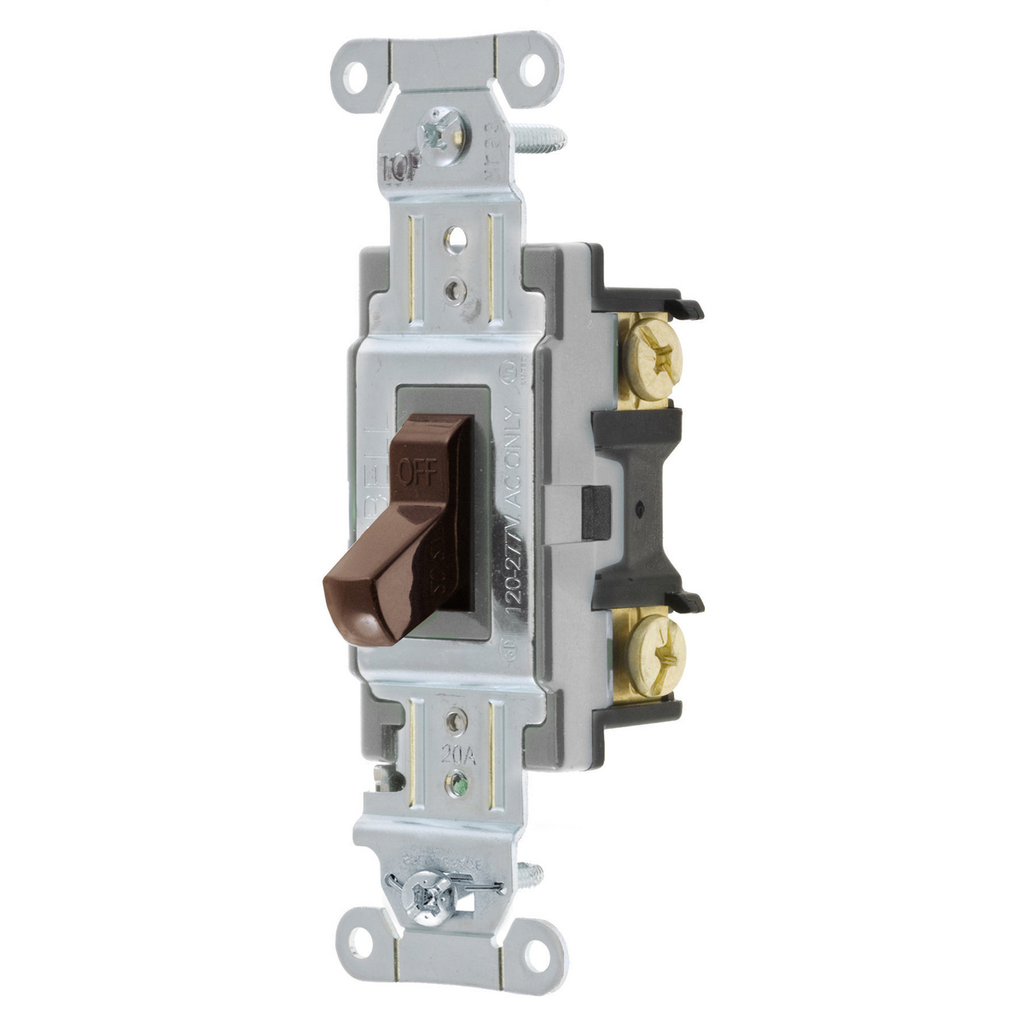

Toggle Switch, Double Pole 20A 120/277V - Commercial Grade Electrical Switch

This toggle switch is a commercial specification grade device designed for use in lighting solutions and electrical distribution systems. It features a double-pole configuration rated at 20 amperes and suitable for 120 to 277 volts AC applications. Ideal for indoor dry environments, this switch supports back and side wiring and is compatible with screw mounting installations, making it a reliable component for wire and cable control in commercial electrical setups.

Specifications

• Application: Commercial Spec Grade
• Current: 20 amperes
• Amperage Rating: 20 A
• Voltage: 120/277V AC
• Number of Poles: Double Pole
• Contact Configuration: Two Position
• Mounting: Screw Mount
• Connection: Back and Side Wired
• Material: Nylon toggle with thermoplastic base and top
• Width: 0.800 in
• Operating Cycles: 50,000 Cycles
• Contact Rating: Per UL 20
• Environmental Conditions: Indoor Dry unless protected by additional means
• Manufacturer: Hubbell Wiring Device-Kellems
• Country of Origin: China

Features

• Positive Snap action for reliable switching
• Abuse resistant nylon toggle
• Steel, zinc plated bridge provides corrosion resistance
• Thread cleaning captive mounting screw
• UL Listed and CSA Certified for safety and compliance

Downloads & Links

• Spec Sheet
• CSB220 AutoCAD Drawing
• Warranty Document Asset Reference
• Sales Drawing Asset Reference
• Catalog Page Asset Reference
• Catalog Full Asset Reference
