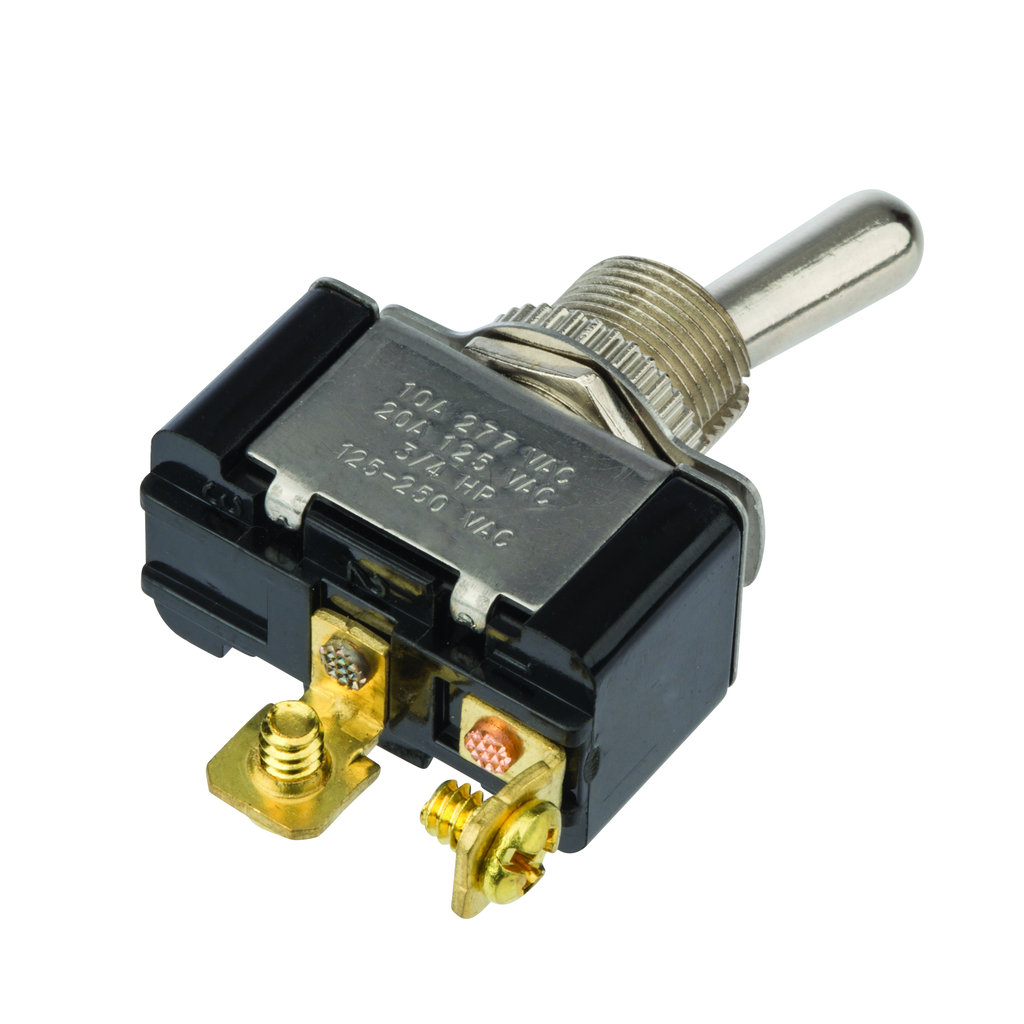

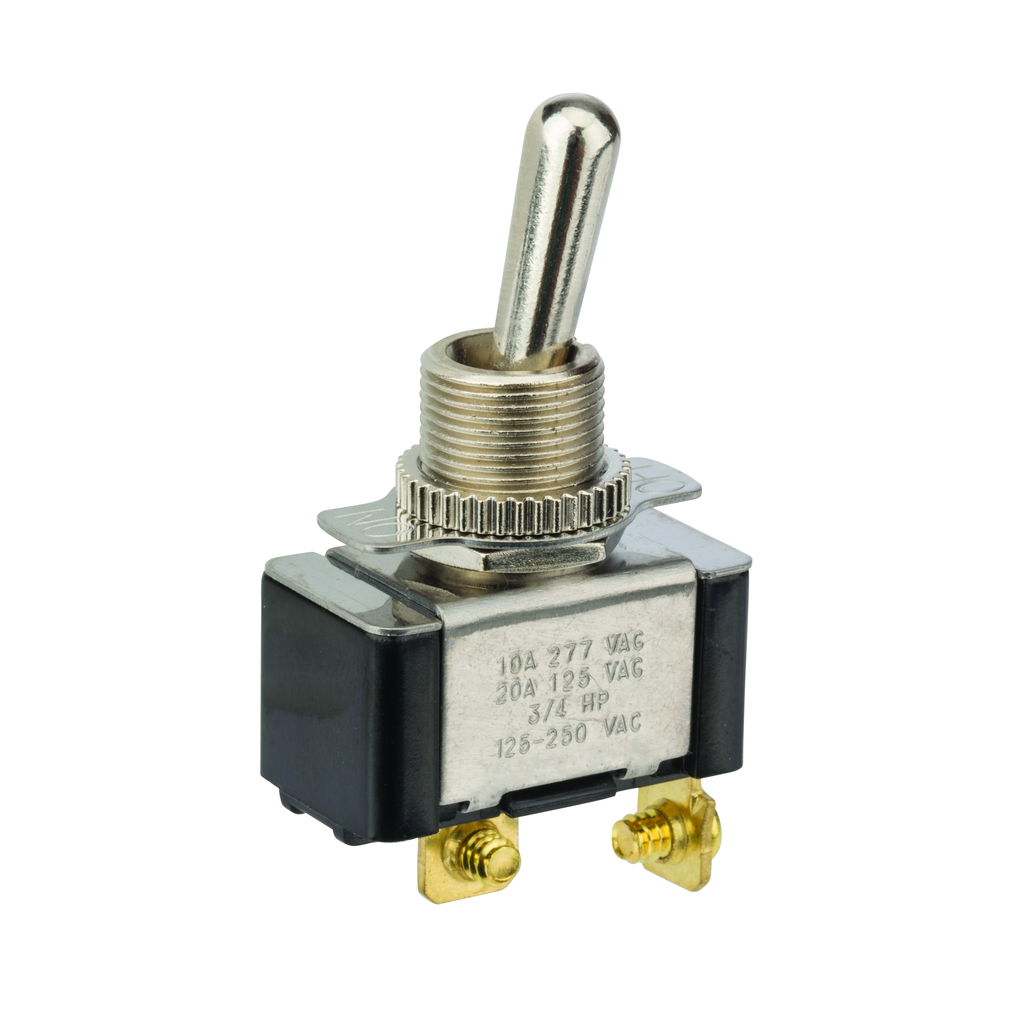

Toggle Switch Bat SPST On-Off Screw Term
SKU: #303695
Part: #78210TS
UPC: 662381782106
Toggle Switch Bat SPST On-Off Screw Term
SKU: #303695
Part: #78210TS
UPC: 662381782106
Total Price: $13.43 per each Sold in increments of 1 each
Description
Toggle Switch Bat SPST On-Off Screw Term - NSI Industries Electrical Switch
This Toggle Switch Bat SPST On-Off Screw Term is designed for motor-equipment control applications. It serves as a reliable component for electrical distributors and switchgear suppliers requiring a maintained contact single-pole switch. The switch is suitable for controlling electrical circuits in lighting solutions and wire and cable assemblies where a robust on-off toggle mechanism is needed.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: 78210TS
- Contact Configuration: SPST
- Action: Toggle Switch
- Contact Rating: 20 Amp (125 VAC) - 10 Amp (250 VAC)
- Amperage Rating: 20 Amp (125 VAC) - 10 Amp (250 VAC)
- Number of Poles: 1
- Mounting: Snap Mount
- Dimensions (L x W x H): 1.134 in x 0.634 in x 1.483 in
- Product Weight: 0.0620 lbs
- Country of Origin: Taiwan
- Application: Motor-Equipment Control
Features
- Maintained contact single-pole toggle switch
- Large nickel screw terminals for secure wiring connections
- Bat-style brass/nickel actuator for durability
- Snap mount design for easy installation
- Rated for 3/4 HP at 125-250 VAC
