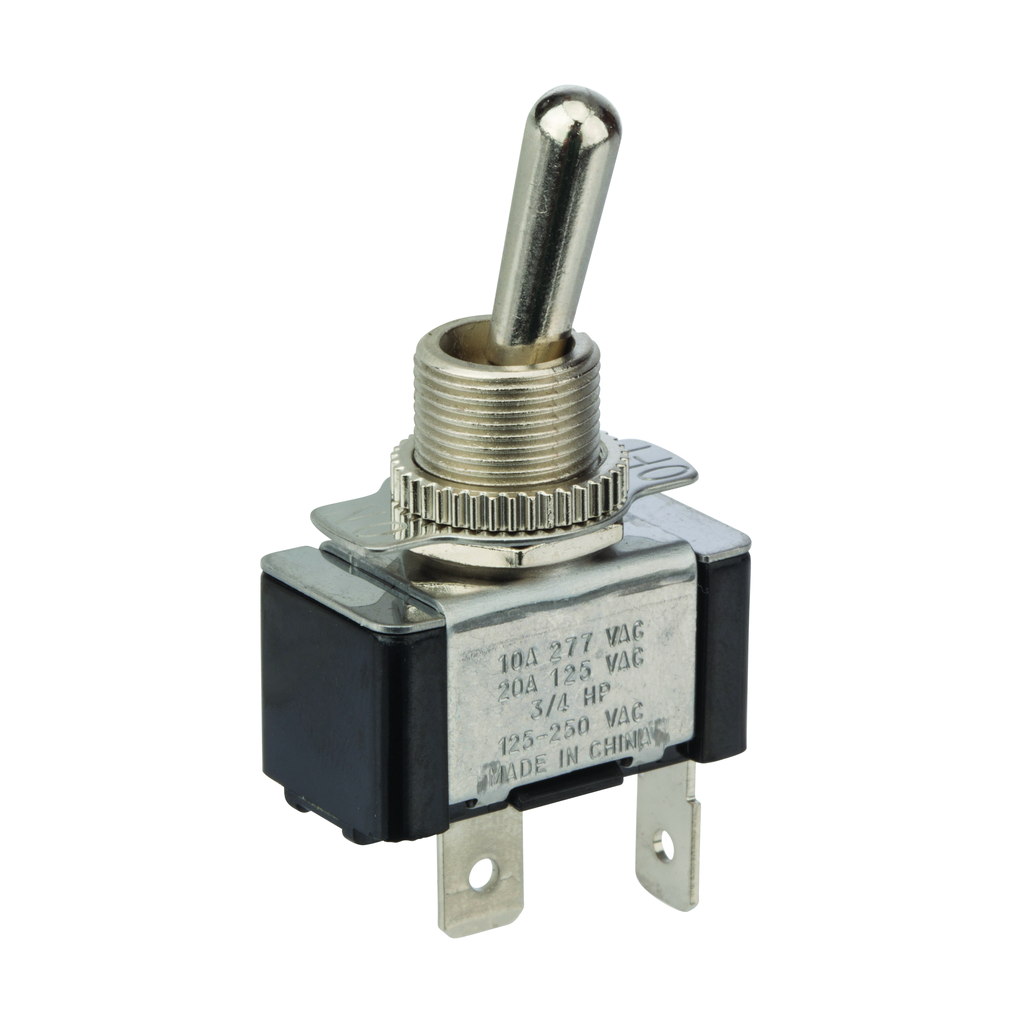

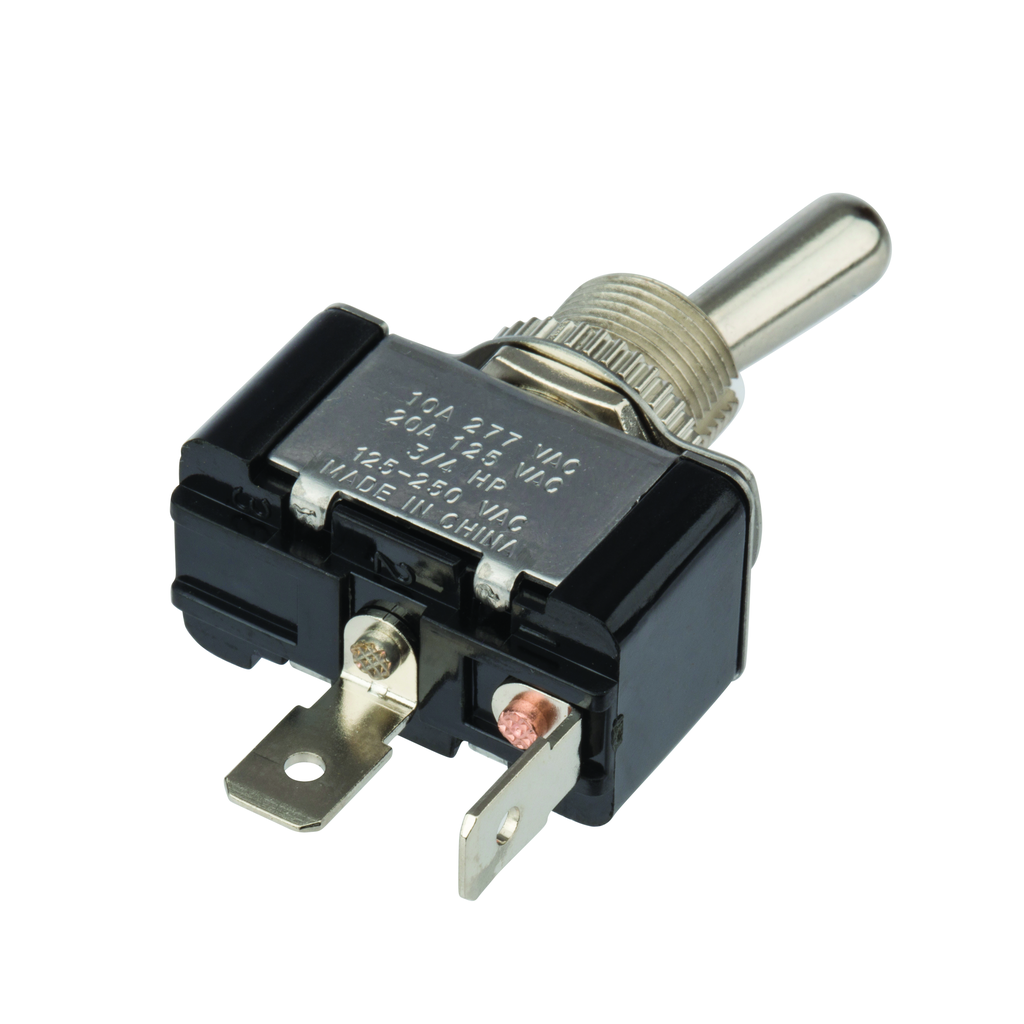

Toggle Switch Bat SPST On-Off 20 Amp Electrical Control Switch

This Toggle Switch Bat SPST On-Off 20 Amp is designed for motor-equipment control applications. It provides reliable single-pole, single-throw (SPST) switching functionality suitable for electrical distributors and switchgear suppliers requiring durable and efficient control components. The switch features a snap mount design and large nickel-plated .250 QuikConnect terminals for secure and quick wiring connections.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: 78120TQ
• Contact Configuration: SPST
• Contact Rating: 20 Amp (125 VAC) - 10 Amp (250 VAC)
• Amperage Rating: 20 Amp (125 VAC) - 10 Amp (250 VAC)
• Application: Motor-Equipment Control
• Mounting: Snap Mount
• Dimensions (L x W x H): 1.134 in x 0.634 in x 1.483 in
• Weight: 0.0560 lbs
• Country of Origin: Taiwan
• Action: Toggle Switch

Features

• Maintained contact single-pole switch
• Large nickel-plated bat toggle actuator
• .250 inch QuikConnect terminals for fast and reliable wiring
• Rated for 3/4 HP at 125-250 VAC
• Durable brass/nickel actuator material

Downloads & Links

• Spec Sheet
