Toggle Switch Bat SPST On-Off
SKU: #303637
Part: #78050TQ
UPC: 662381780508
Toggle Switch Bat SPST On-Off
SKU: #303637
Part: #78050TQ
UPC: 662381780508
Total Price: $18.29 per each Sold in increments of 1 each
Description

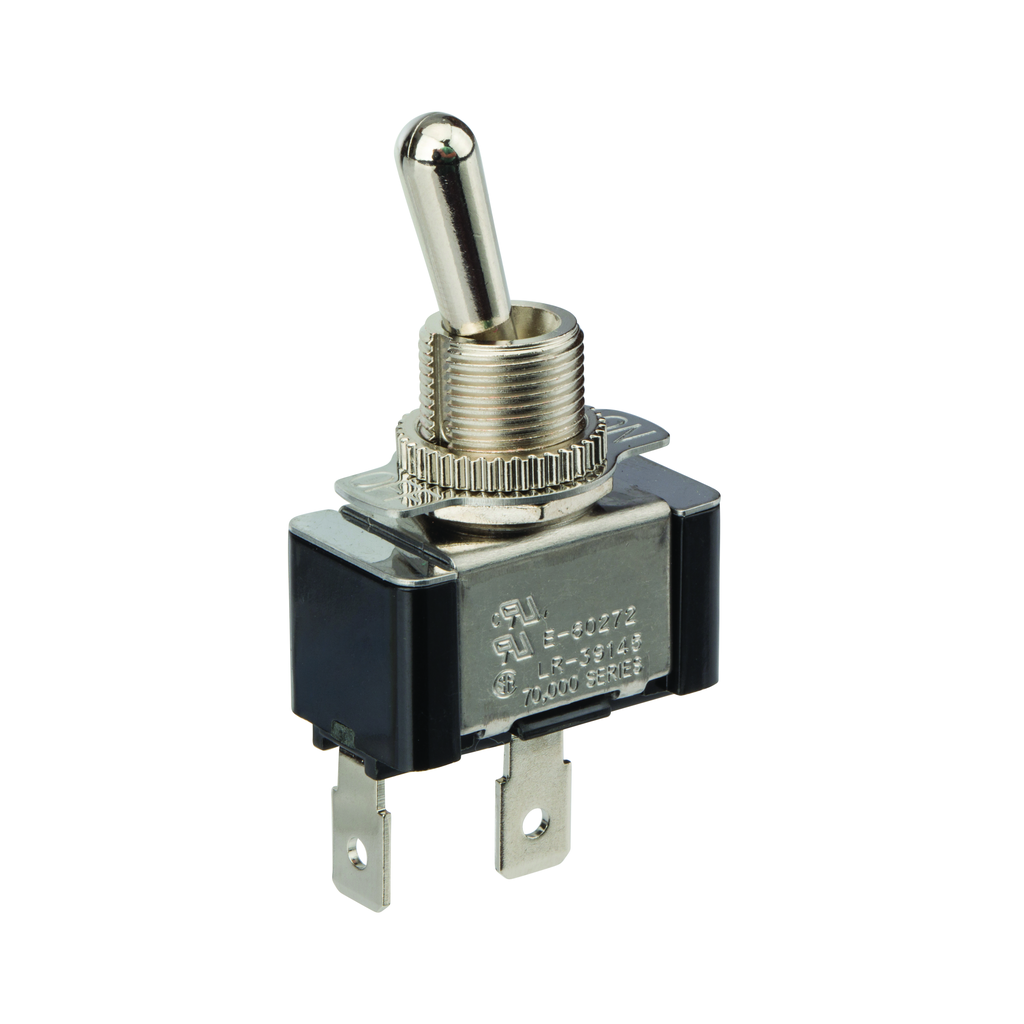

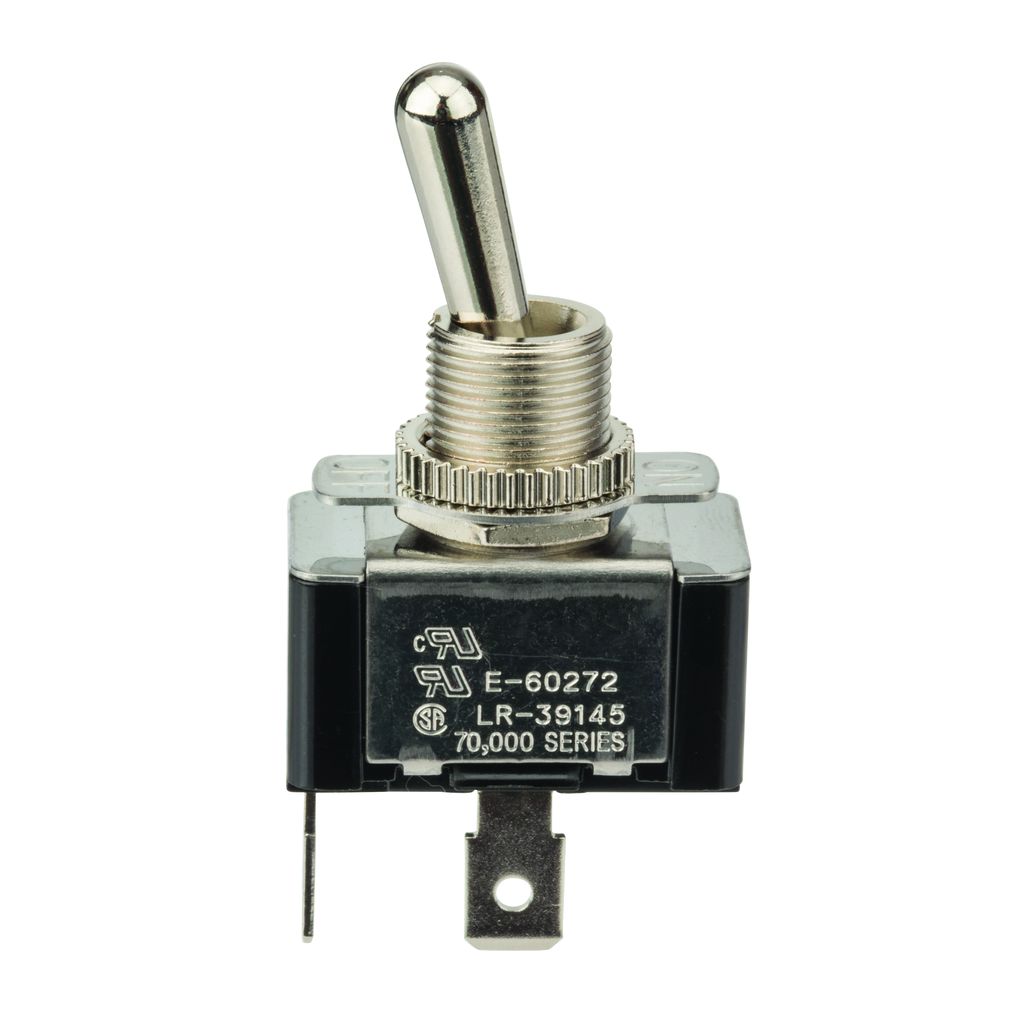

Toggle Switch Bat SPST On-Off – Electrical Toggle Switch
This Toggle Switch Bat SPST On-Off is designed for motor-equipment control applications. It is suitable for electrical distributors and switchgear suppliers requiring reliable single-pole single-throw switching. The switch features a snap mount design with a nickel-plated bat-style toggle actuator, providing secure and easy installation in lighting solutions, wire and cable assemblies, and control panels.
Specifications
- Contact Configuration: SPST
- Amperage Rating: 20 Amp (125 VAC) - 10 Amp (250 VAC)
- Contact Rating: 20 Amp (125 VAC) - 10 Amp (250 VAC)
- Number of Poles: 1
- Mounting: Snap Mount
- Dimensions (L x W x H): 0.522 in x 0.522 in x 1.572 in
- Product Weight: 0.0600 lbs
- Manufacturer Part #: 78050TQ
- Country of Origin: Taiwan
- Application: Motor-Equipment Control
Features
- ON/OFF maintained contact operation
- Nickel-plated bat toggle actuator for durability
- 0.250 inch QuikConnect terminals for quick wiring
- Compact size suitable for various electrical control applications
