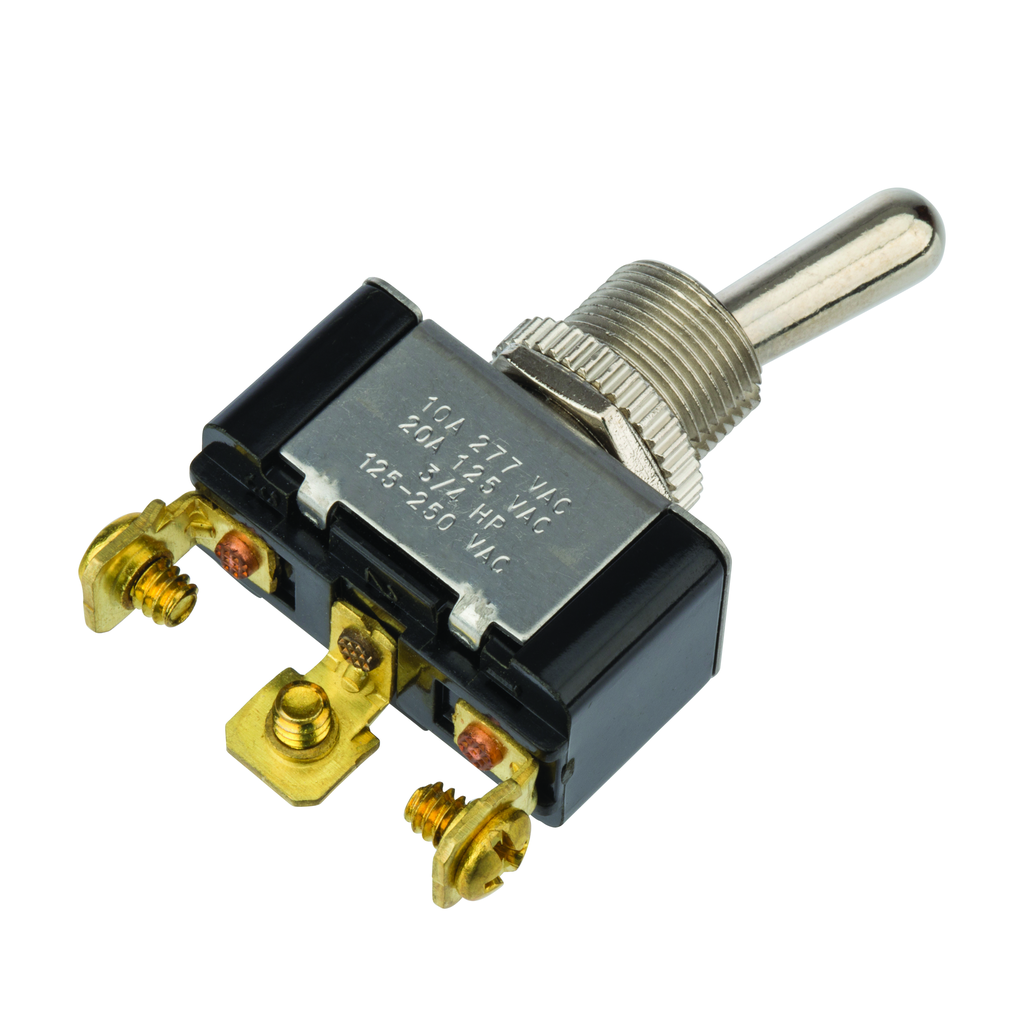

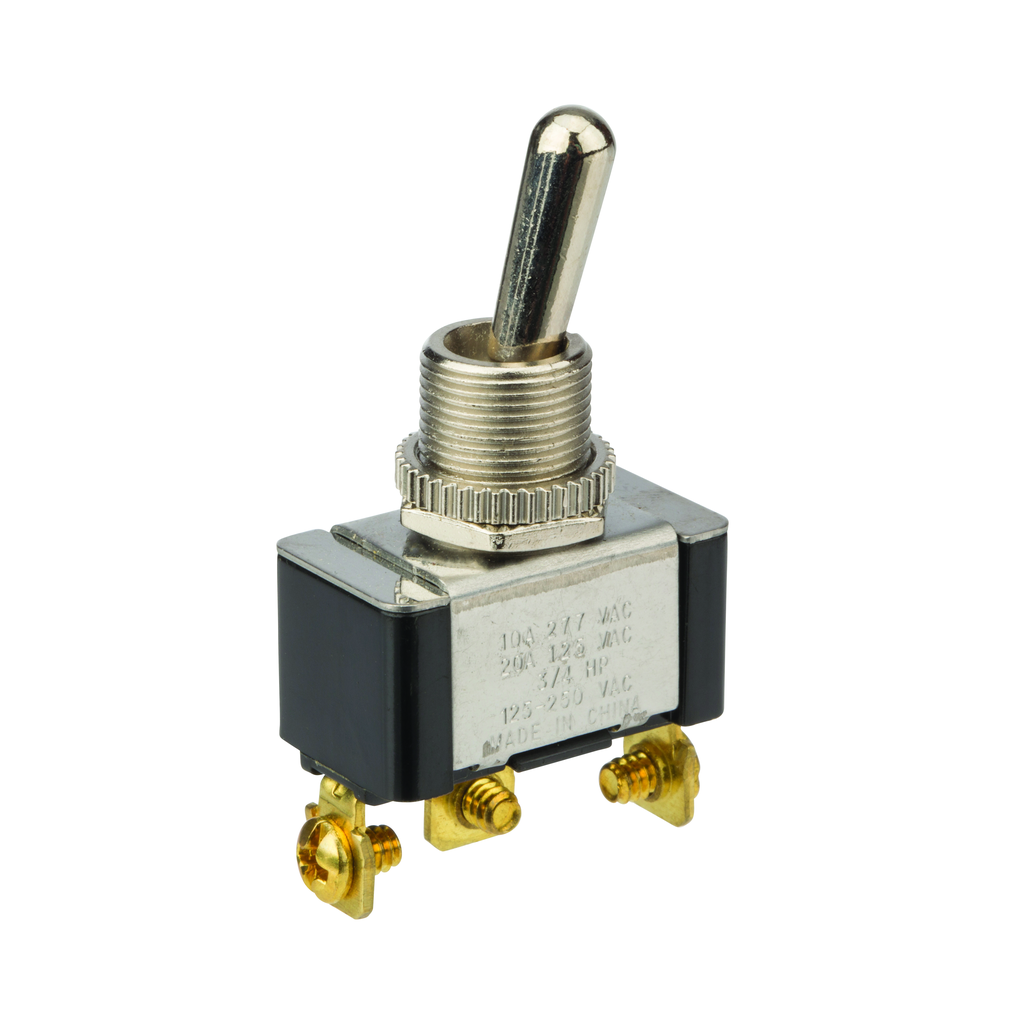

Toggle Switch Bat SPDT On-On
SKU: #303687
Part: #78200TS
UPC: 662381782007
Toggle Switch Bat SPDT On-On
SKU: #303687
Part: #78200TS
UPC: 662381782007
Description
Toggle Switch Bat SPDT On-On - Electrical Toggle Switch
This Toggle Switch Bat SPDT On-On is designed for motor-equipment control applications, providing reliable switching functionality for electrical distributors and switchgear suppliers. It is suitable for use in lighting solutions and wire and cable systems requiring maintained contact toggle switches with a single pole double throw (SPDT) configuration.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: 78200TS
- Contact Configuration: SPDT
- Action: Toggle Switch
- Amperage Rating: 20 Amp (125 VAC) - 10 Amp (250 VAC)
- Contact Rating: 20 Amp (125 VAC) - 10 Amp (250 VAC)
- Number of Poles: 1
- Mounting Type: Snap Mount
- Dimensions (L x W x H): 1.134 in x 0.634 in x 1.483 in
- Product Weight: 0.0640 lbs
- Country of Origin: Taiwan
- Application: Motor-Equipment Control
Features
- ON-ON maintained contact switch providing reliable electrical control
- Large nickel screw terminals for secure wiring connections
- Bat-style actuator made of brass/nickel for durability
- Snap mount design for easy installation
