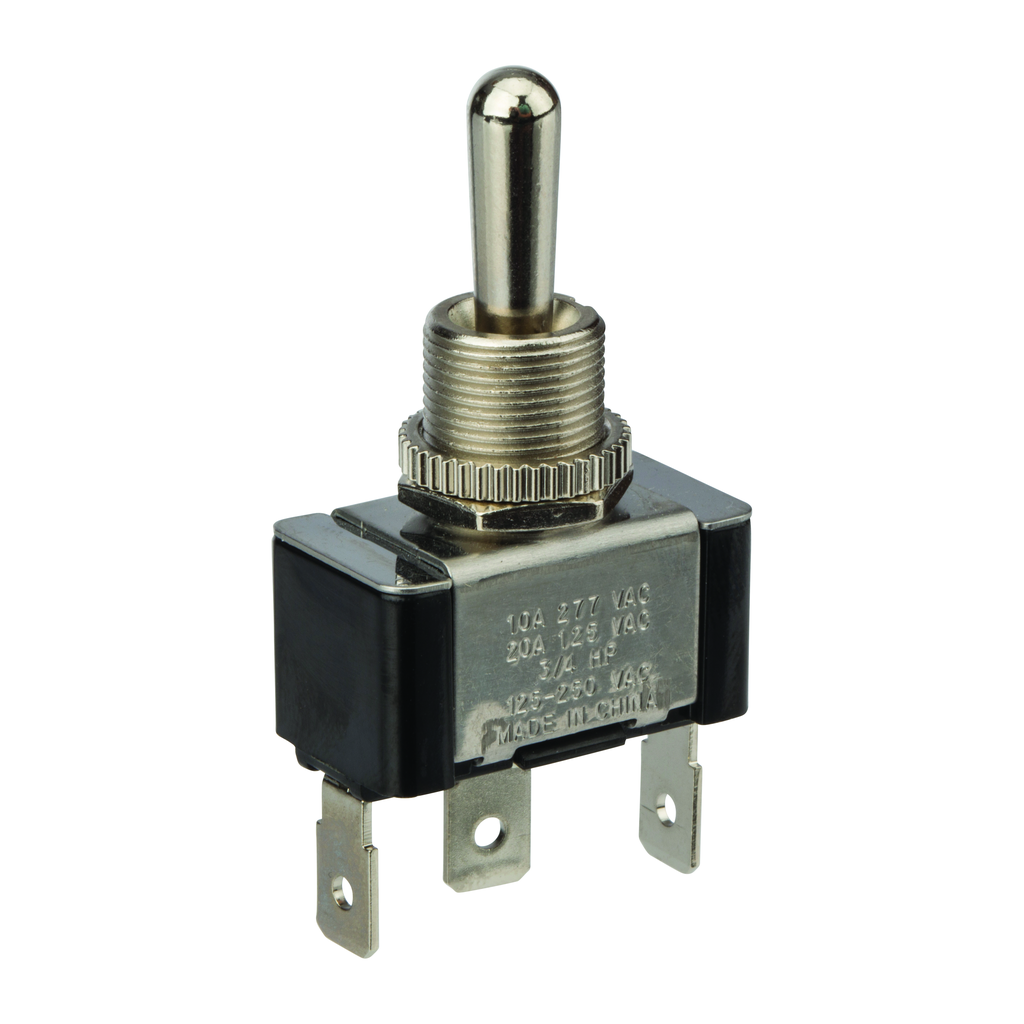

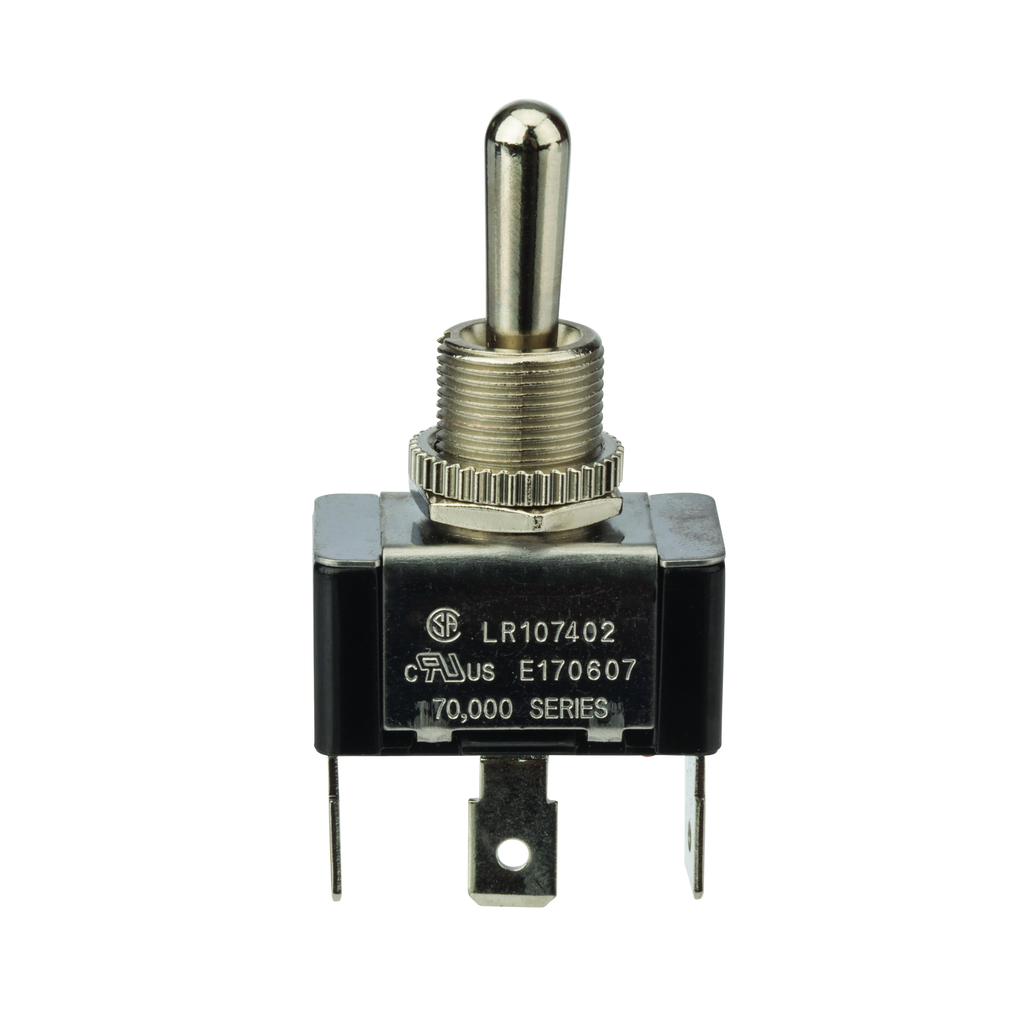

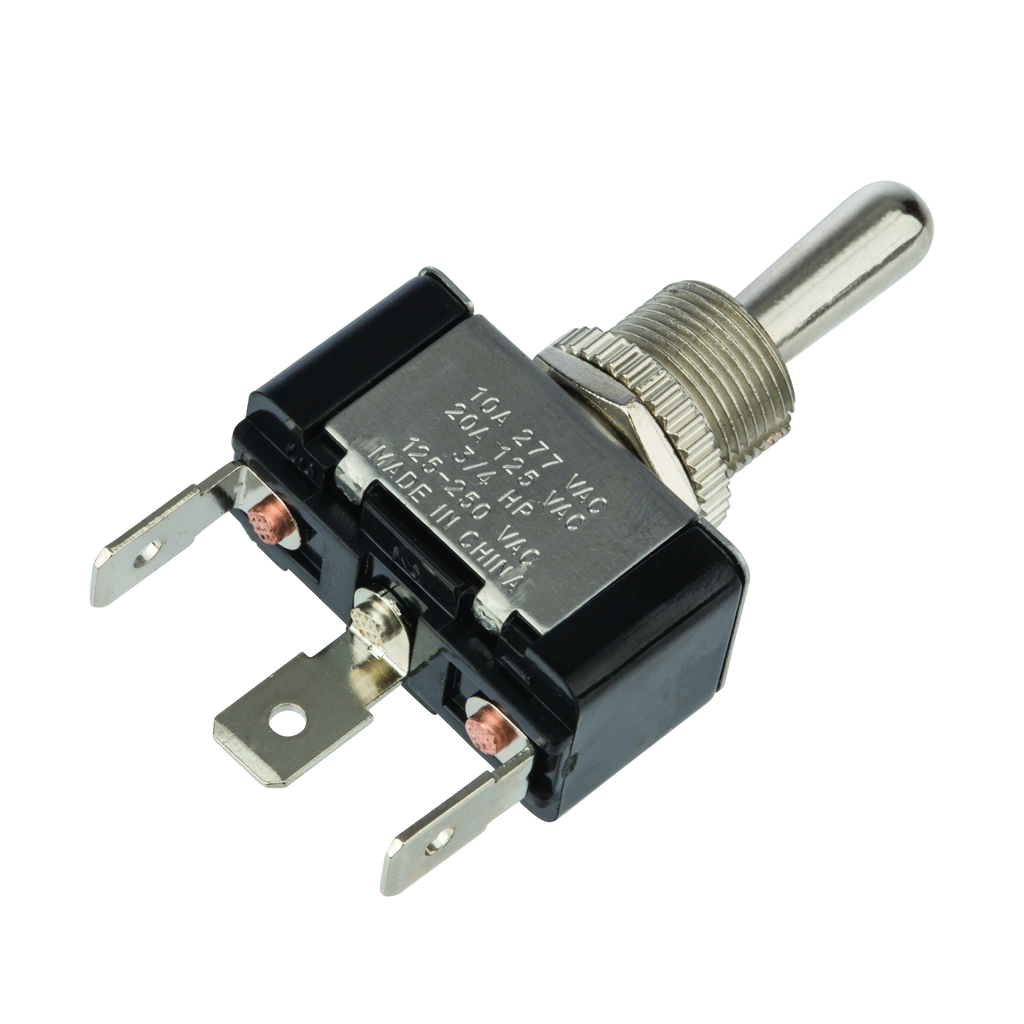

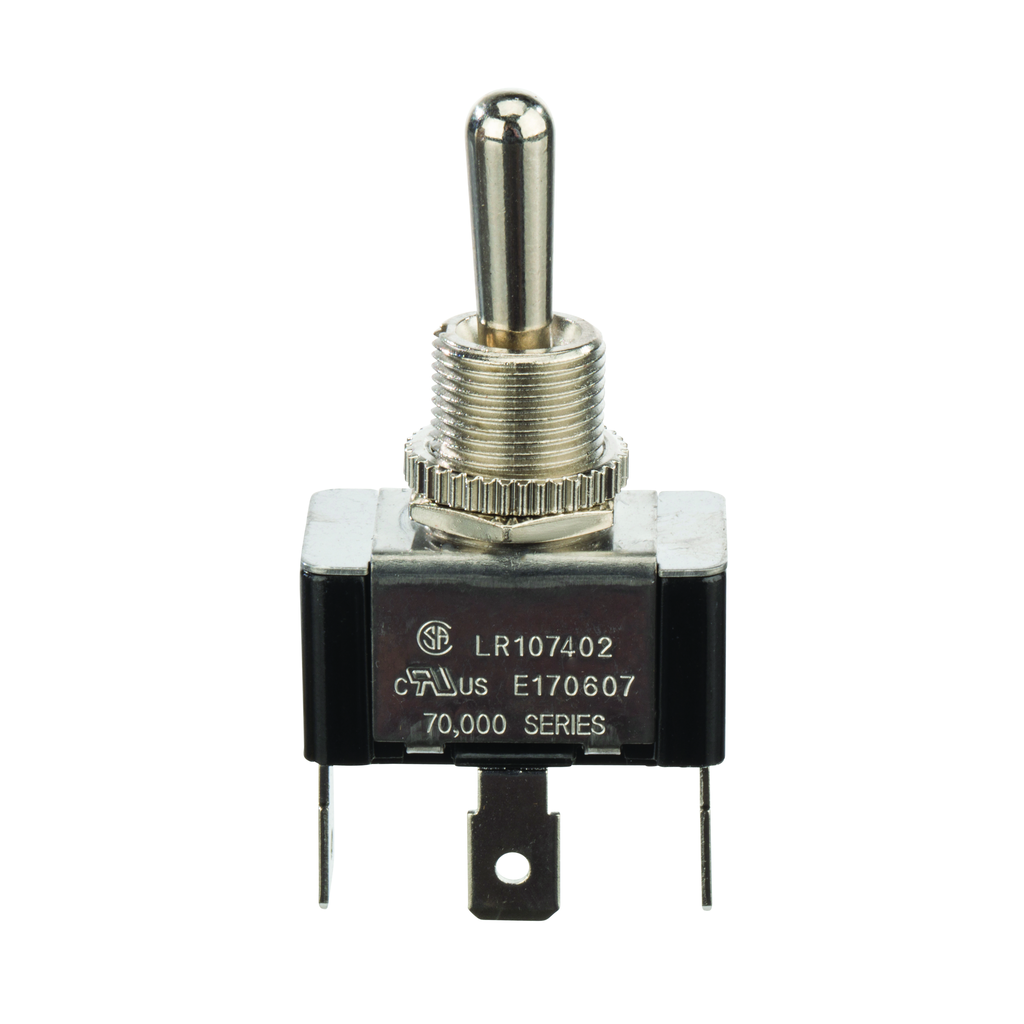

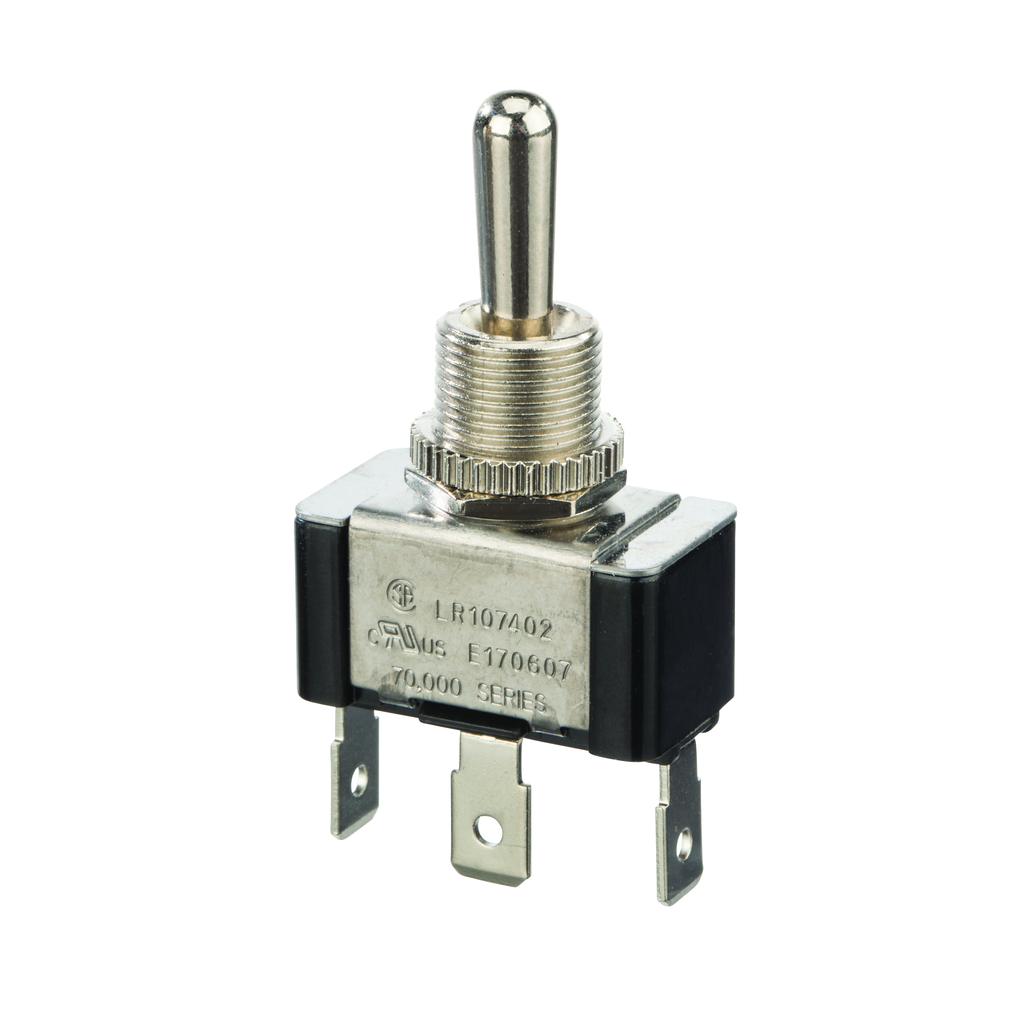

Toggle Switch Bat SPDT On-Off-On
SKU: #303640
Part: #78070TQ
UPC: 662381780706
Toggle Switch Bat SPDT On-Off-On
SKU: #303640
Part: #78070TQ
UPC: 662381780706
Total Price: $21.31 per each Sold in increments of 1 each
Next day delivery
Description
Toggle Switch Bat SPDT On-Off-On - Electrical Toggle Switch
This Toggle Switch Bat SPDT On-Off-On is designed for motor-equipment control applications. It provides a maintained contact single pole double throw (SPDT) configuration, suitable for precise switching needs in electrical distribution and lighting solutions. Manufactured by NSI Industries, this switch supports reliable operation in wire and cable assemblies and is compatible with standard snap mount installations.
Specifications
- Contact Configuration: SPDT
- Action: Toggle Switch
- Contact Rating: 20 Amp (125 VAC) - 10 Amp (250 VAC)
- Amperage Rating: 20 Amp (125 VAC) - 10 Amp (250 VAC)
- Number of Poles: 1
- Mounting: Snap Mount
- Dimensions (L x W x H): 1.134 in x 0.634 in x 1.483 in
- Product Weight: 0.0600 lb
- Manufacturer Part #: 78070TQ
- Country of Origin: Taiwan
- Application: Motor-Equipment Control
Features
- ON-OFF-ON switching with maintained contact
- Large nickel-plated bat handle for durability and ease of use
- 0.250 inch quick-connect terminals for fast, secure wiring
- Brass and nickel actuator material for corrosion resistance
