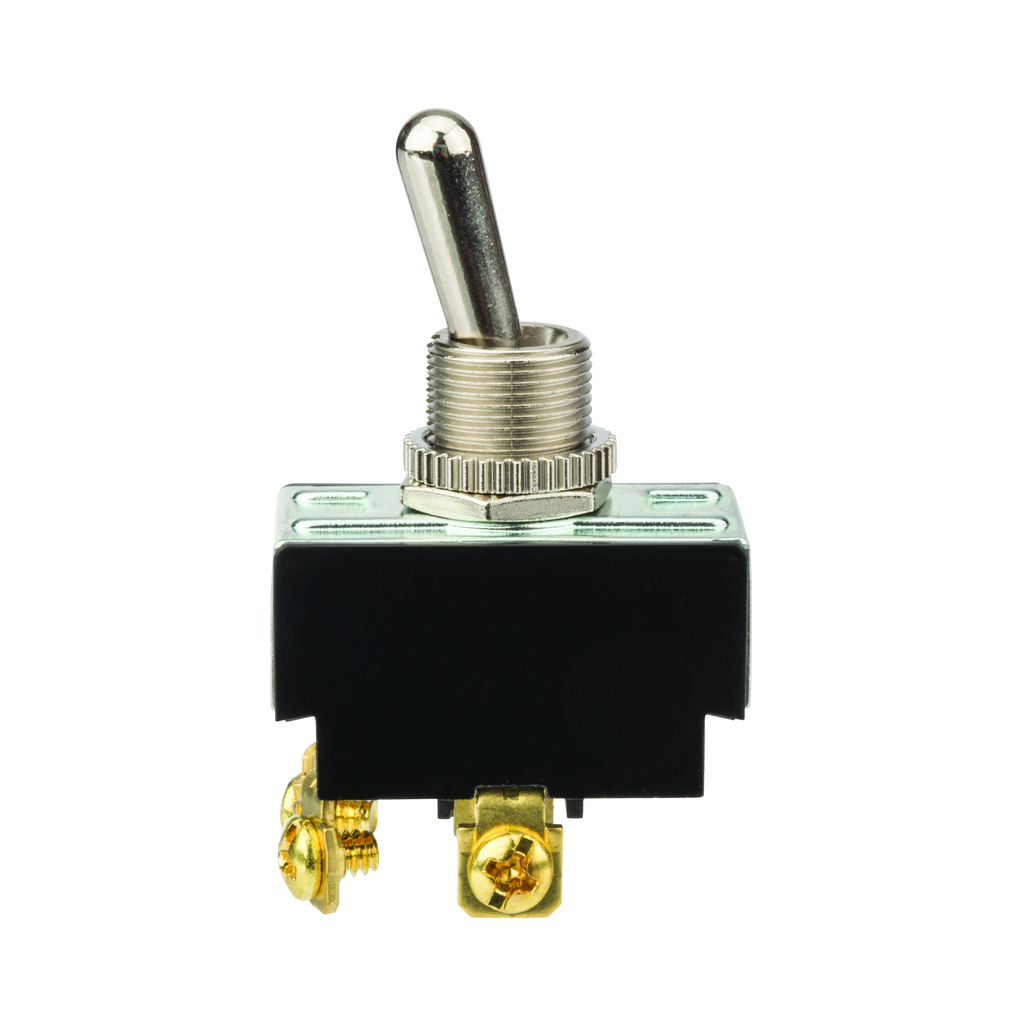

Toggle Switch Bat DPST On-Off Screw Term - Electrical Toggle Switch

This toggle switch is designed for motor-equipment control applications, suitable for electrical distributors and switchgear suppliers requiring reliable on-off switching solutions. It features a double-pole single-throw (DPST) contact configuration with maintained contact, providing controlled power switching for lighting solutions, wire and cable assemblies, and other electrical equipment.

Specifications

• Contact Configuration: DPST
• Amperage Rating: 20 Amp (125 VAC) - 10 Amp (250 VAC)
• Action: Toggle Switch
• Mounting: Snap Mount
• Dimensions (L x W x H): 1.308 in x 0.75 in x 2.352 in
• Product Weight: 0.08 lbs
• Manufacturer: NSI Industries
• Manufacturer Part #: 78220TS
• Country of Origin: Taiwan
• Application: Motor-Equipment Control

Features

• ON-OFF maintained contact operation

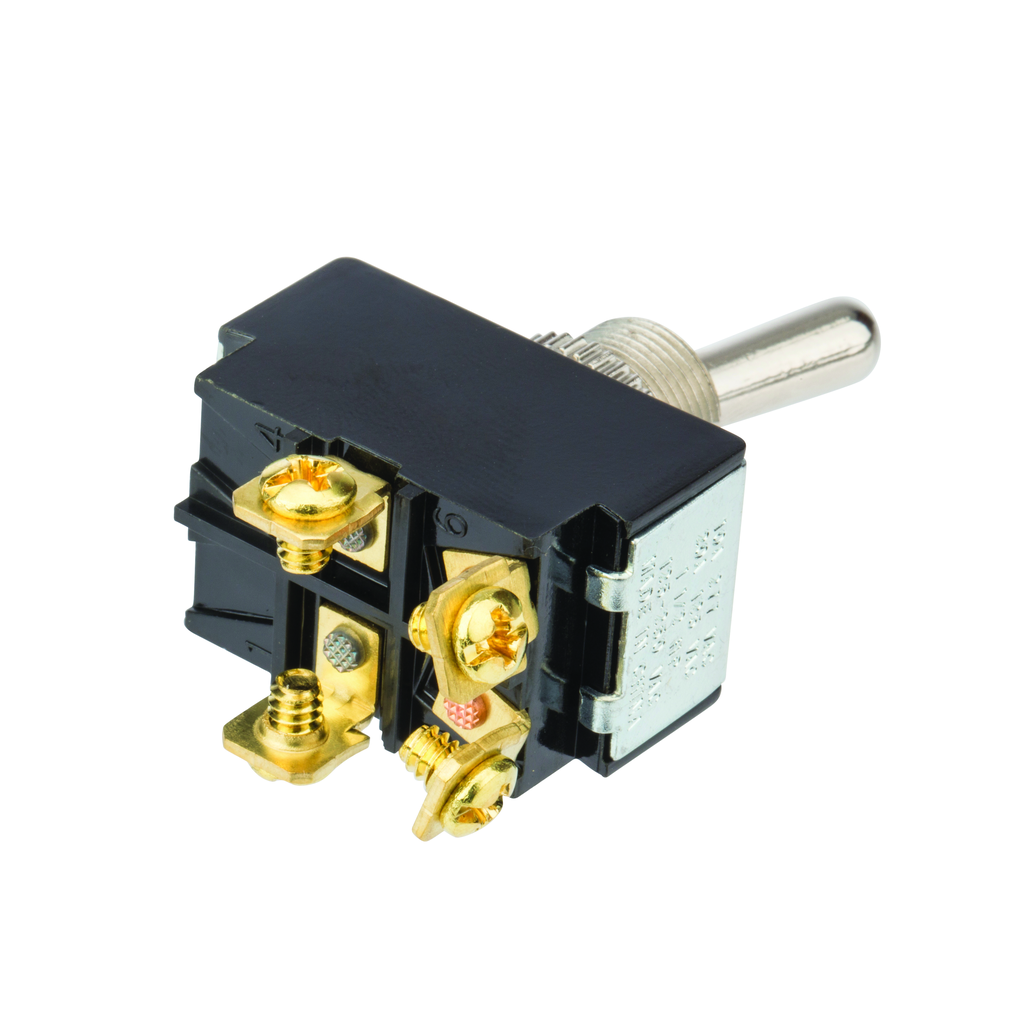

• Nickel screw terminals for secure wiring connections
• Bat-style actuator with brass/nickel finish for durability
• Rated for both AC and DC applications with corresponding amperage and voltage ratings

Downloads & Links

• Spec Sheet
