Toggle Switch Bat DPST On-Off
SKU: #303645
Part: #78080TQ
UPC: 662381780805
Toggle Switch Bat DPST On-Off
SKU: #303645
Part: #78080TQ
UPC: 662381780805
Description

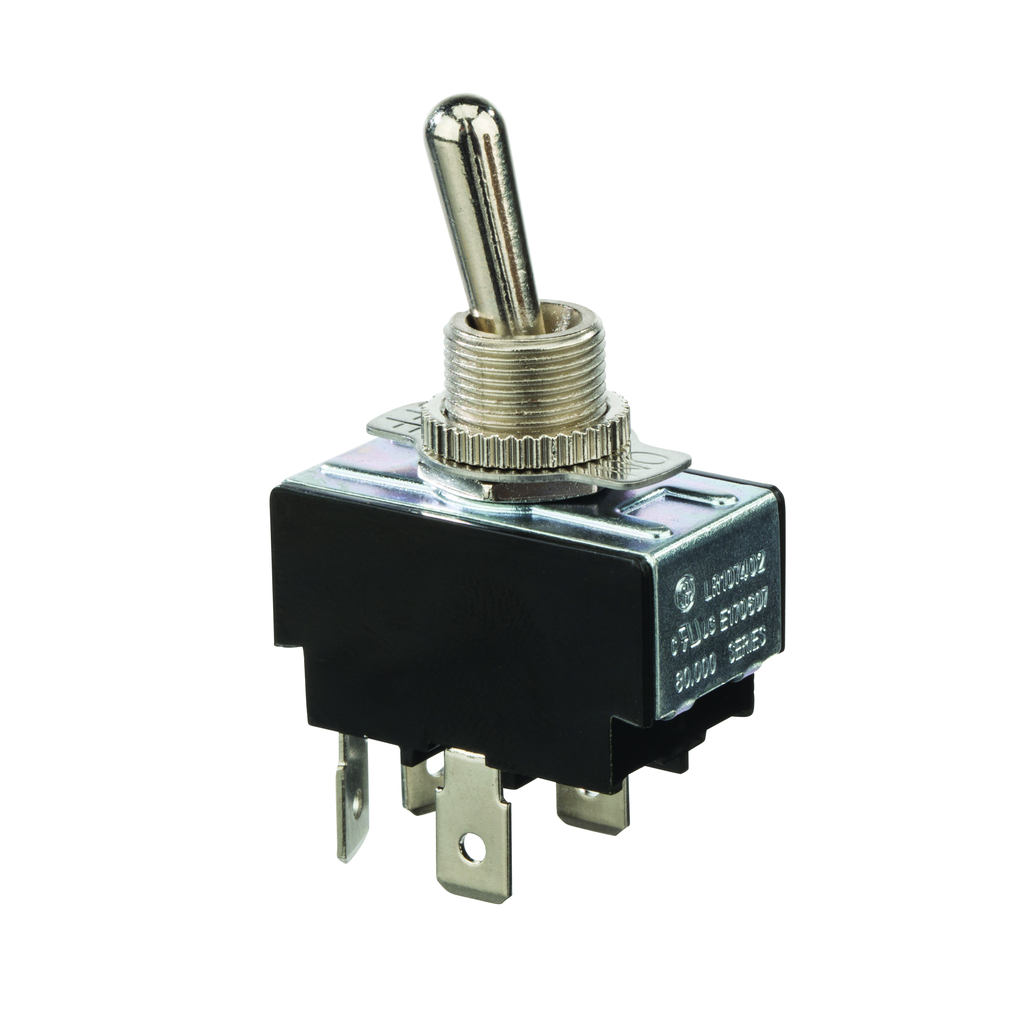

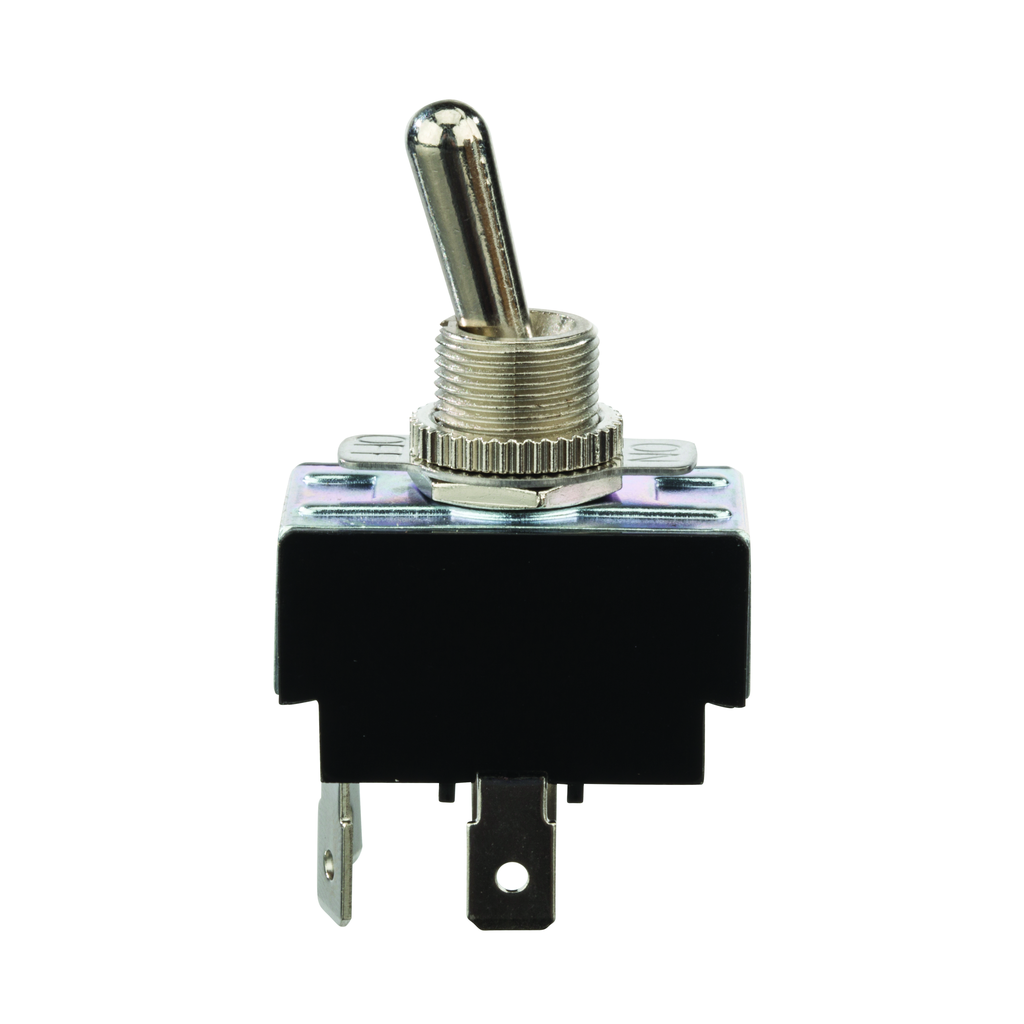

Toggle Switch Bat DPST On-Off – Electrical Toggle Switch
This Toggle Switch Bat DPST On-Off is designed for motor-equipment control applications. It serves as a reliable component for electrical distributors and switchgear suppliers needing a durable, snap-mount toggle switch with quick-connect terminals. The switch provides on/off control with a double-pole, single-throw (DPST) contact configuration suitable for wire and cable connections in lighting solutions and other electrical setups.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: 78080TQ
- Contact Configuration: DPST
- Contact Rating: 15 Amp (125 VAC) - 10 Amp (250 VAC)
- Amperage Rating: 15 Amp (125 VAC) - 10 Amp (250 VAC)
- Number of Poles: 2
- Action: Toggle Switch
- Mounting: Snap Mount
- Dimensions (L x W x H): 1.134 in x 0.634 in x 1.483 in
- Product Weight: 0.0760 lbs
- Application: Motor-Equipment Control
- Country of Origin: Taiwan
Features
- Bat-style toggle actuator with brass/nickel finish
- Quick-connect terminals (.250 inch) for easy wiring
- Maintained on/off switch operation
- Compact snap mount design for straightforward installation
