Toggle Switch Bat DPDT On-On Screw Term
SKU: #303720
Part: #78270TS
UPC: 662381782700
Toggle Switch Bat DPDT On-On Screw Term
SKU: #303720
Part: #78270TS
UPC: 662381782700
Total Price: $34.30 per each Sold in increments of 1 each
Next day delivery
Description

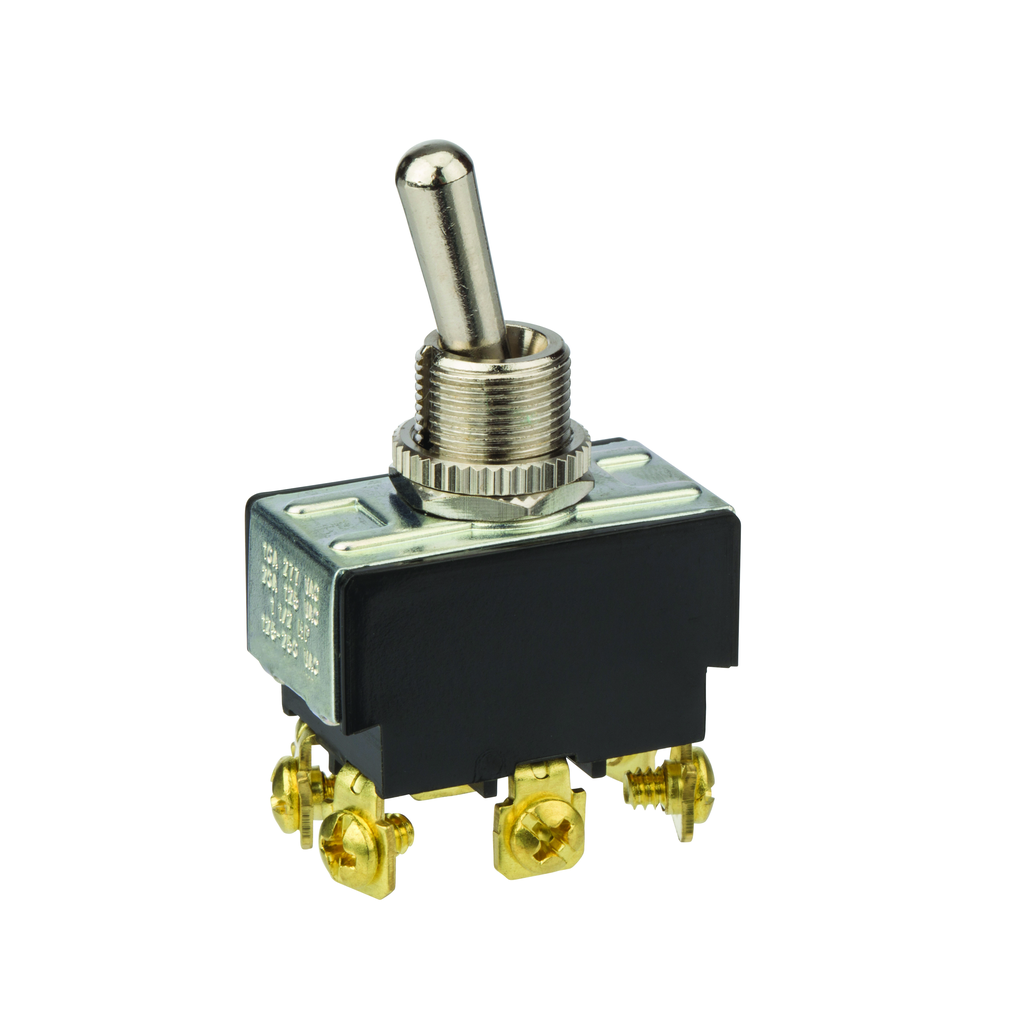

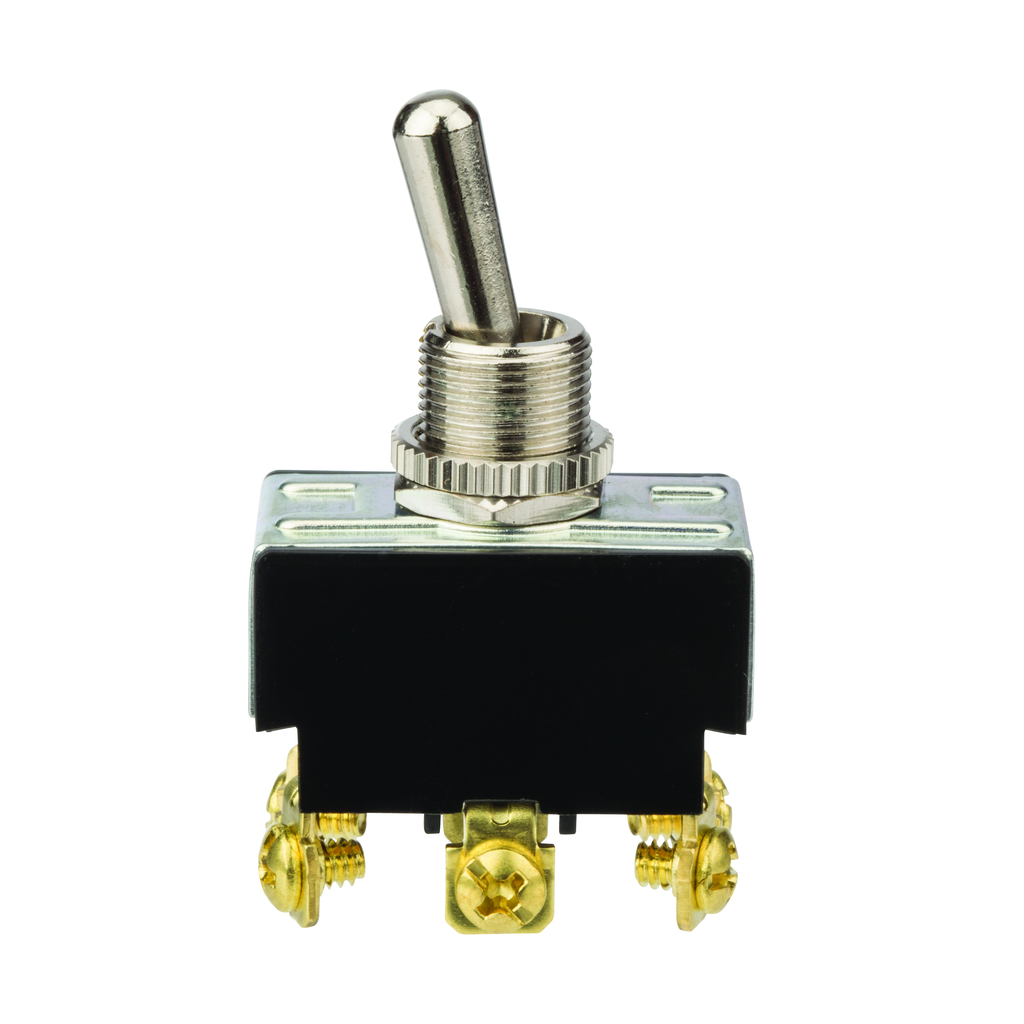

Toggle Switch Bat DPDT On-On Screw Term - NSI 78270TS Toggle Switch
This toggle switch is designed for motor-equipment control applications, providing reliable double-pole double-throw (DPDT) switching functionality. It is suitable for electrical distributors and switchgear suppliers requiring durable, snap-mount toggle switches with screw terminal connections. The switch supports maintained contact operation with ON-ON action, ideal for controlling circuits in lighting solutions and wire and cable systems.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: 78270TS
- Contact Configuration: DPDT
- Action: Toggle Switch
- Contact Rating: 20 Amp (125 VAC) - 10 Amp (250 VAC)
- Number of Poles: 2
- Mounting: Snap Mount
- Dimensions (L x W x H): 1.308 in x 0.75 in x 2.352 in
- Product Weight: 0.09 lbs
- Country of Origin: Taiwan
- Order Minimum: 1
Features
- ON-ON maintained contact switching
- Nickel screw terminal connections for secure wiring
- Bat-style actuator with brass/nickel material
- Suitable for motor-equipment control and electrical applications
- Robust contact rating supporting 20A at 125 VAC and 10A at 250 VAC
