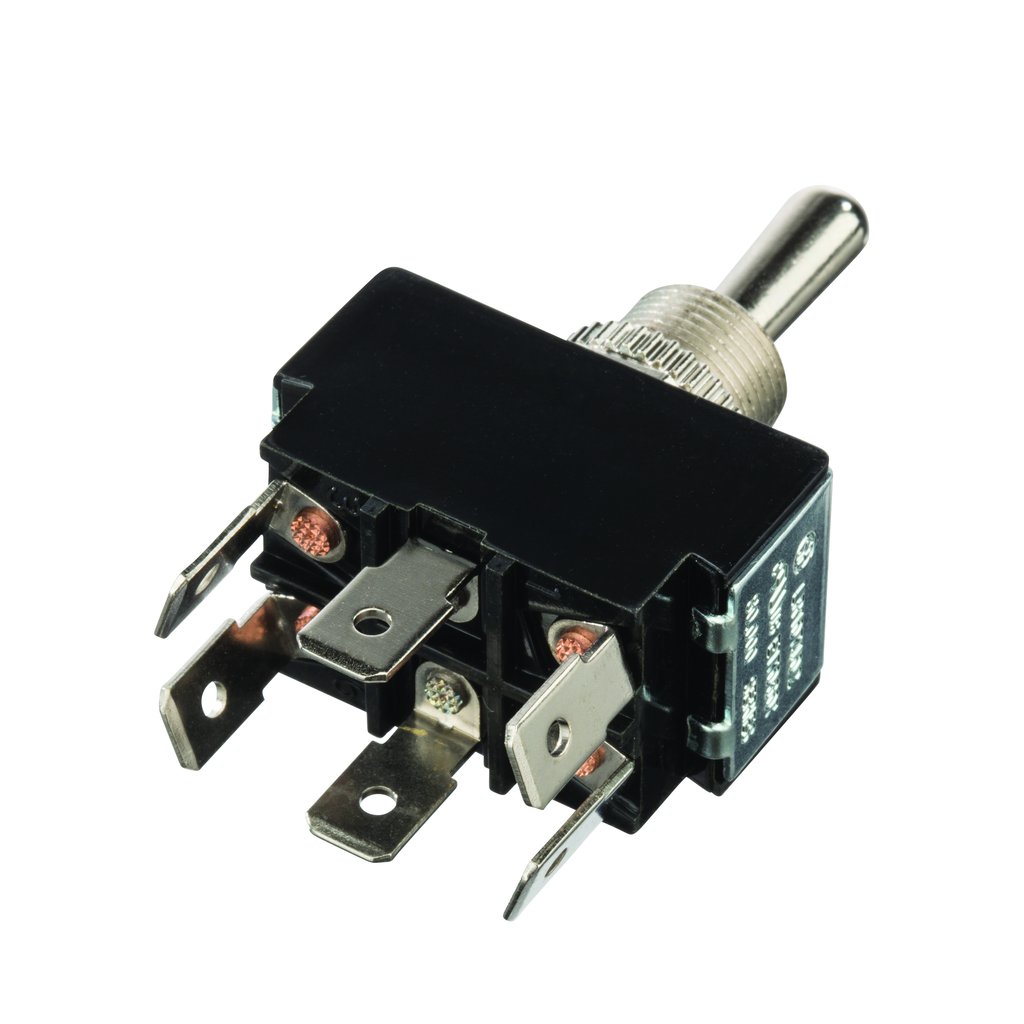

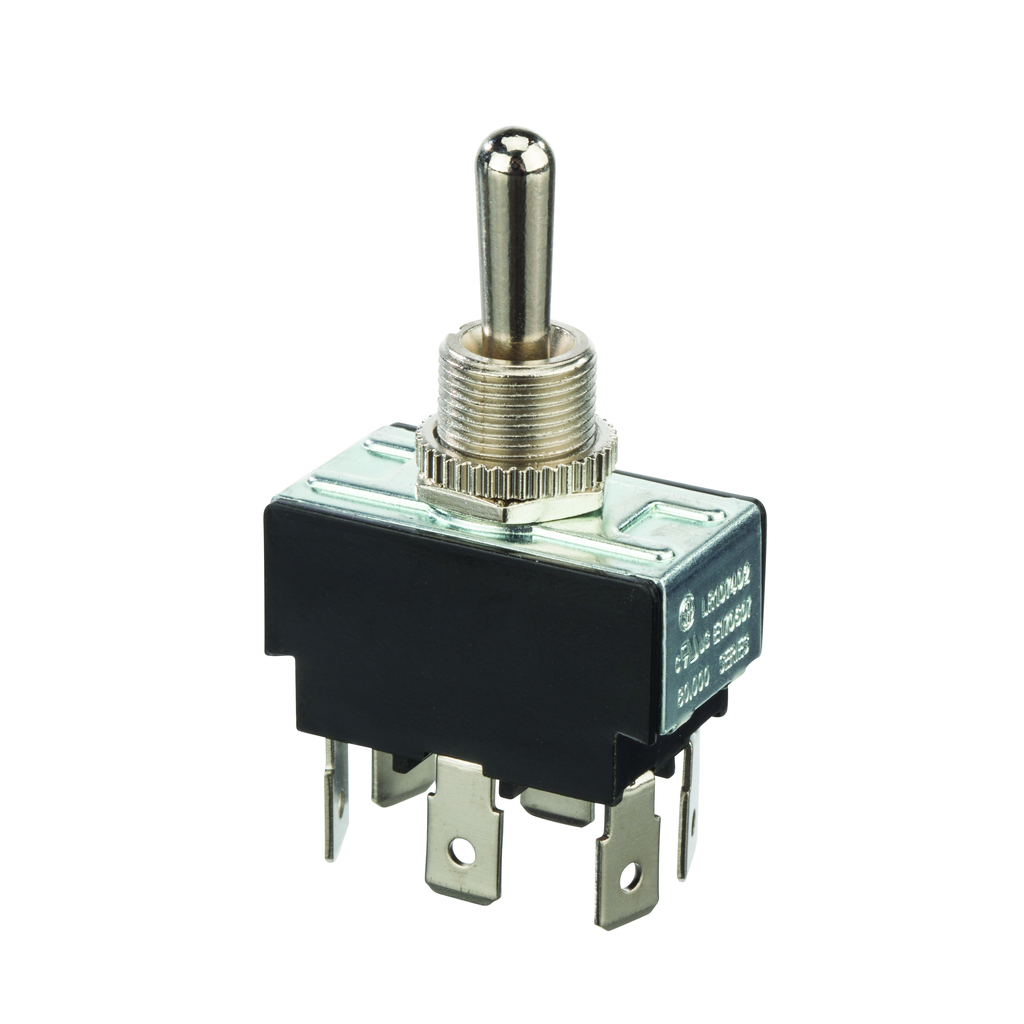

Toggle Switch Bat DPDT On-Off-On

This toggle switch is designed for motor-equipment control applications, suitable for electrical distributors and switchgear suppliers requiring reliable on-off-on switching functionality. It features a double-pole double-throw (DPDT) contact configuration with a bat-style actuator, providing robust performance in electrical circuits.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: 78100TQ
• Contact Configuration: DPDT
• Action: Toggle Switch
• Contact Rating: 15 Amp (125 VAC) - 10 Amp (250 VAC)
• Number of Poles: 2
• Mounting: Snap Mount
• Dimensions (L × W × H): 1.134 in × 0.634 in × 1.483 in
• Product Weight: 0.0760 lbs
• Country of Origin: Taiwan
• Application: Motor-Equipment Control

Features

• On-Off-On switching action for versatile circuit control
• Bat-style actuator constructed with brass/nickel for durability
• .250 inch quick-connect terminals for efficient wiring
• Compact snap mount design for easy installation
