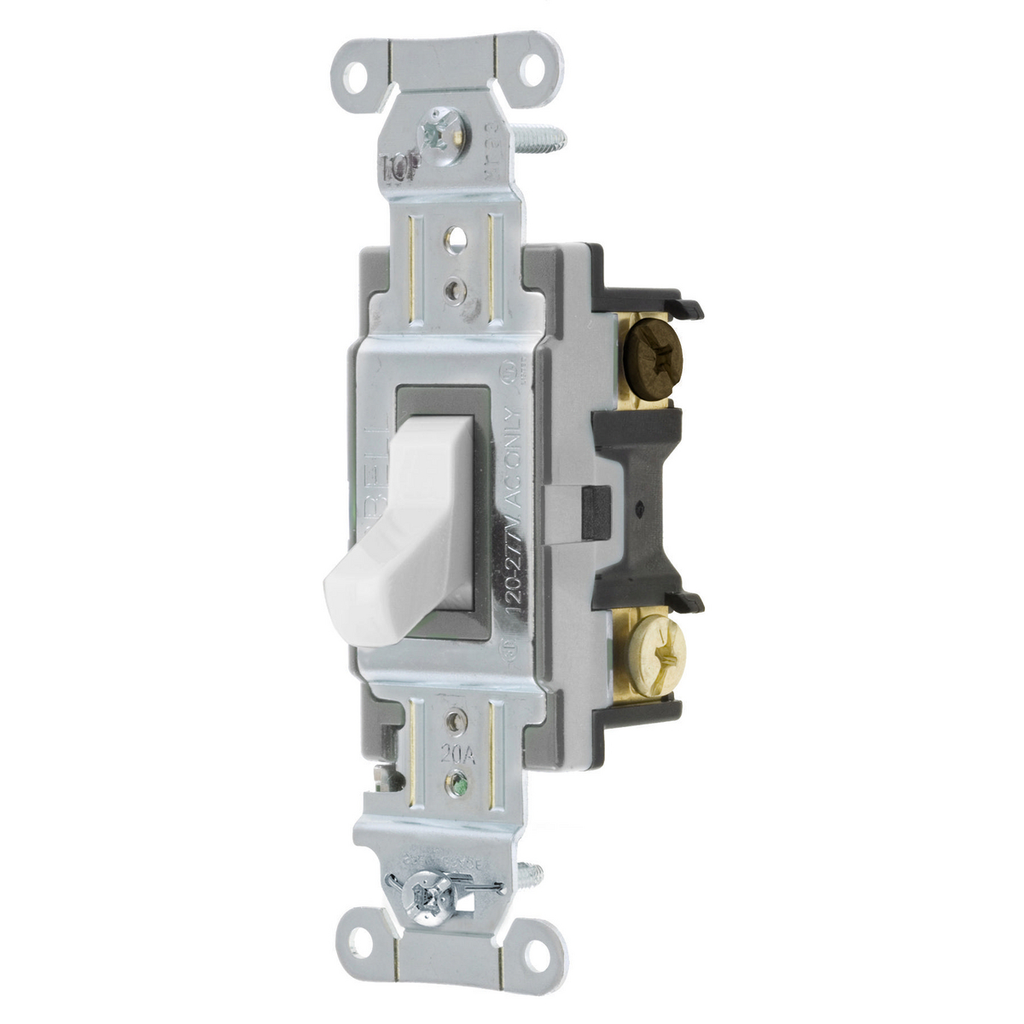

Toggle, Specification Grade, Back and Side Wired Switch

This Hubbell Wiring Device-Kellems toggle switch is designed for low voltage applications, providing reliable electrical control in lighting solutions and wire and cable systems. Suitable for use by electrical distributors and switchgear suppliers, it features a 3-way configuration with a maximum operating current of 5 amperes at 24V DC. Its back and side wiring capabilities facilitate versatile installation in commercial and industrial environments.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: CSB320WHLV
• Color: White
• Configuration: 3-Way
• Operating Current: Maximum 5A @ 24V DC
• Material Front: Thermoplastic
• Material Base: Thermoplastic
• Contacts Material: Silver Alloy
• Terminal Screws Material: Brass
• Mounting Bridge Material: Steel, Zinc Plated
• Terminal Accommodations: #14 AWG min. - #10 AWG max., solid or stranded copper wire only
• Operating Temperature: Max 75¬∞C; Min -40¬∞C without impact
• Width: 2.000 in
• Product Weight: 1.8 lbs
• Country of Origin: China

Features

• Maintained contact for stable switching operation
• Thread cleaning captive mounting screw for secure installation
• Automatic self-grounding stainless steel staple for enhanced safety
• Back and side wired terminals for flexible wiring options

Downloads & Links

• Warranty Document Asset Reference
• CSB320WHLV AutoCAD Drawing
• Spec Sheet
• Sales Drawing Asset Reference
• Catalog Full Asset Reference
• Installation Manuals Asset Reference
• Catalog Page Asset Reference
