Toggle LED Illuminated Single-Pole Switch - Electrical Switch

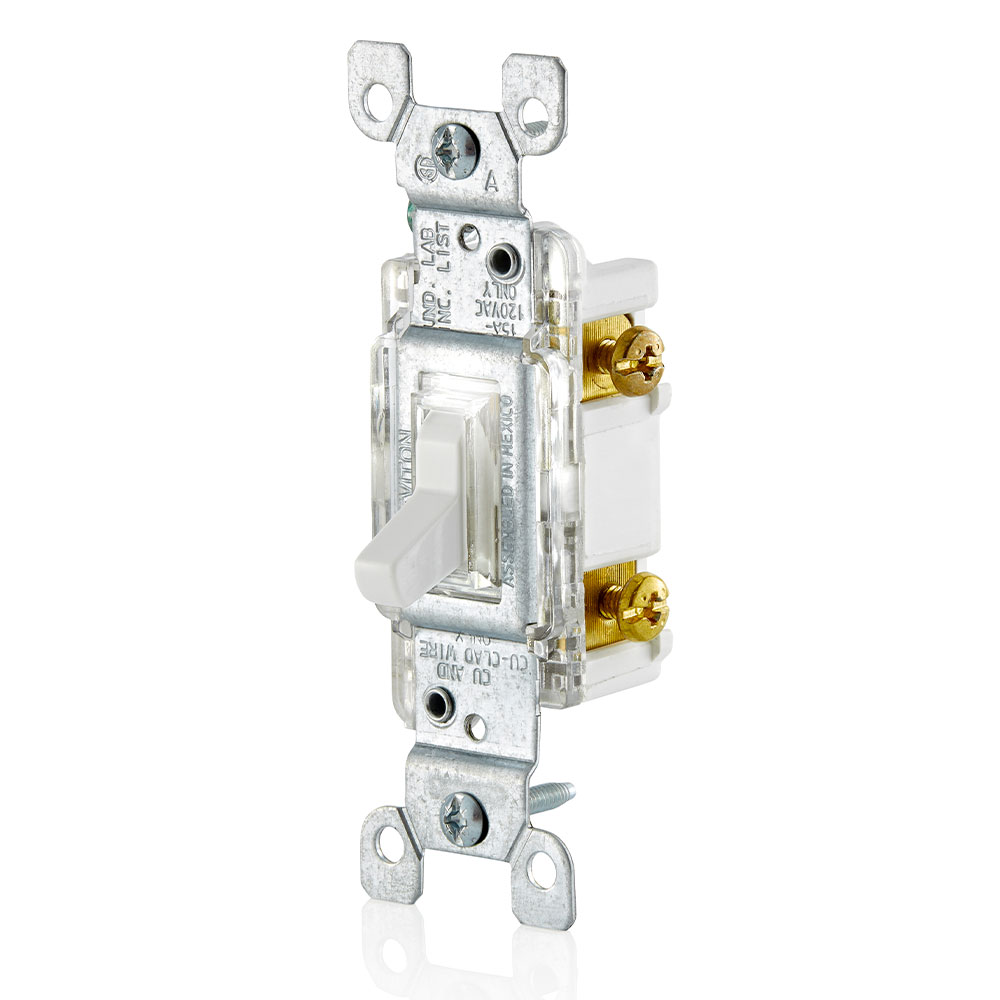

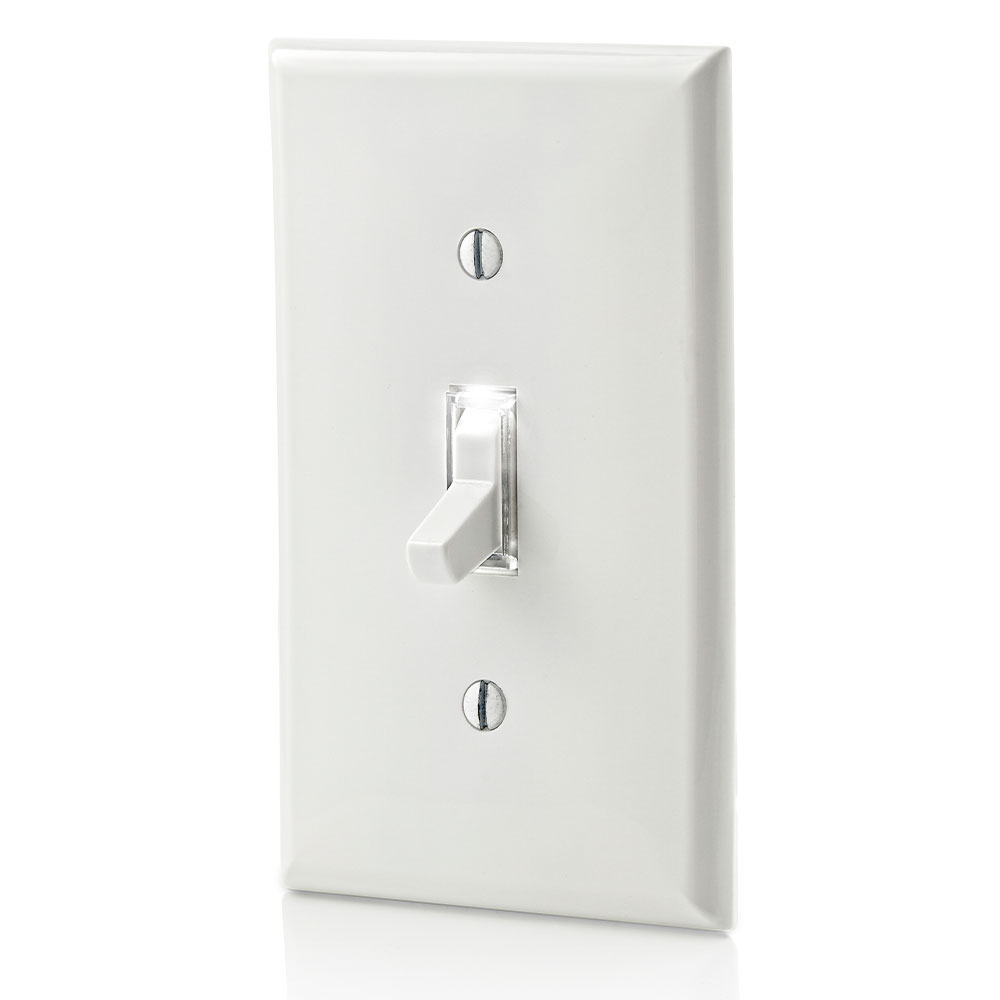

The Toggle LED Illuminated Single-Pole Switch by Leviton is designed for residential electrical applications, providing a reliable and easy-to-locate lighting control solution. This switch is engineered to operate seamlessly with LED, CFL, and incandescent bulbs without requiring a neutral wire, making it suitable for modern lighting solutions. Ideal for use in homes, it offers a grounding feature and white LED illumination that remains on when the switch is off, enhancing visibility in dark environments.

Specifications

• Amperage: 12 amperes
• Voltage Rating: 120 Volt
• Number of Poles: 1
• Device Type: Toggle Switch
• Body Material: Thermoplastic
• Color: White
• Grade: Residential
• Grounding: Grounding
• Product Weight: 0.1662 lbs
• Country of Origin: Mexico
• Manufacturer: Leviton
• Manufacturer Part #: L1461-2W

Features

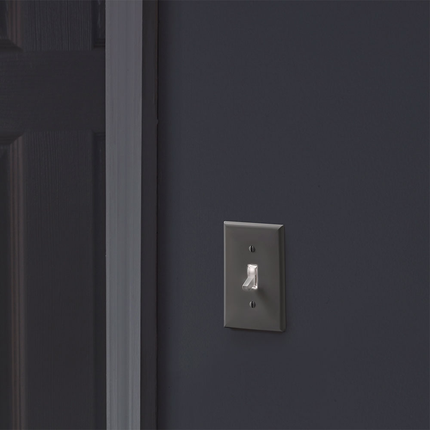

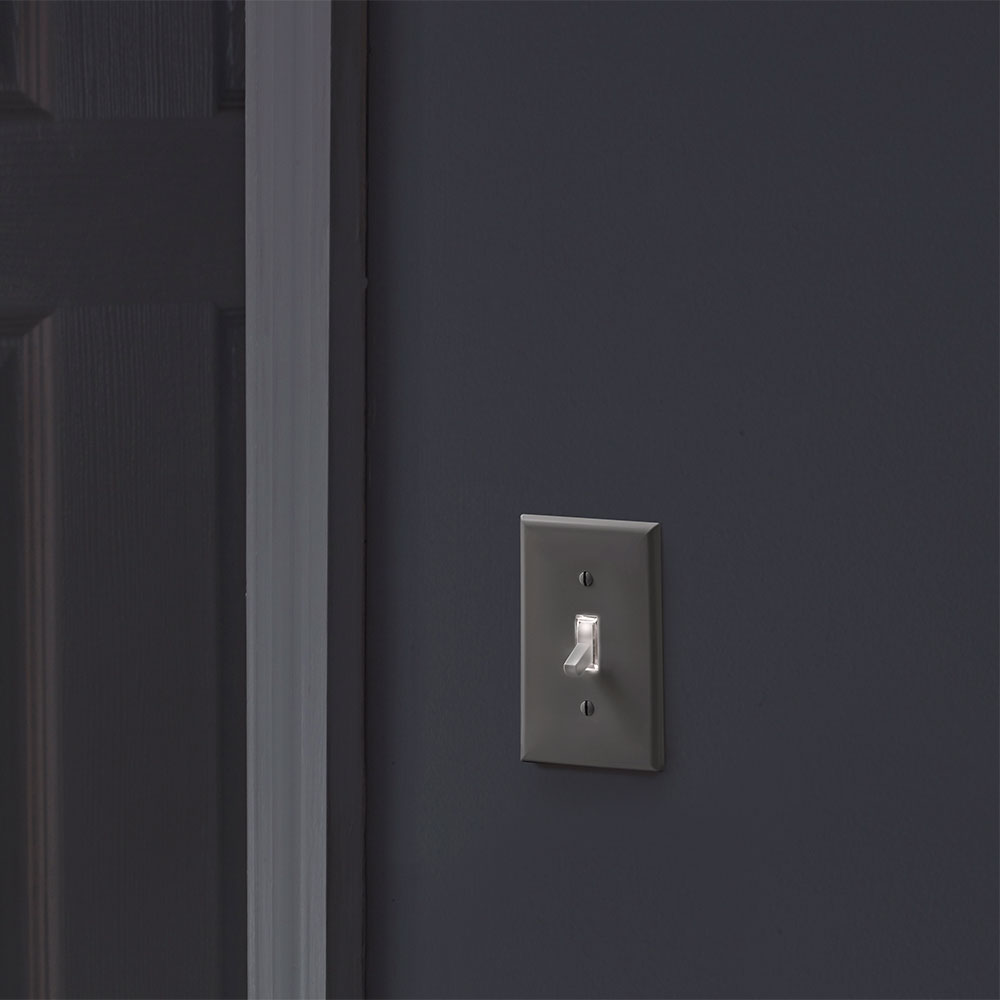

• White LED illumination remains lit when switch is off for easy location in dark rooms
• Compatible with LED, CFL, and incandescent bulbs without flickering or performance issues
• No neutral wire required for installation
• Quickwire™ push-in and side wiring for easy installation
• Side wire terminal screws accept up to #12 AWG copper or copper clad wire
• Torque Range: 14-18 in.-lbs.
• Ground terminal insert hole on side of device, no looping required
• UL/CSA and NOM certified
• Two-Year Limited Warranty

Downloads & Links

• LED Illuminated Switch Product Bulletin
• product-cleaning-instructions
• Instruction-Sheet L1461 L1463-En-Fr-Sp
