TMR6 Series Time Delay Relays, Octal style terminals, 8 pins, True OFF delay, Programmable time delay, 24 Vac/dc input voltage, DPDT contact configuration
SKU: #169112
Part: #TMR6X0024
UPC: 786685359250
TMR6 Series Time Delay Relays, Octal style terminals, 8 pins, True OFF delay, Programmable time delay, 24 Vac/dc input voltage, DPDT contact configuration
SKU: #169112
Part: #TMR6X0024
UPC: 786685359250
Total Price: $438.78 per each Sold in increments of 1 each
Next day delivery
Description

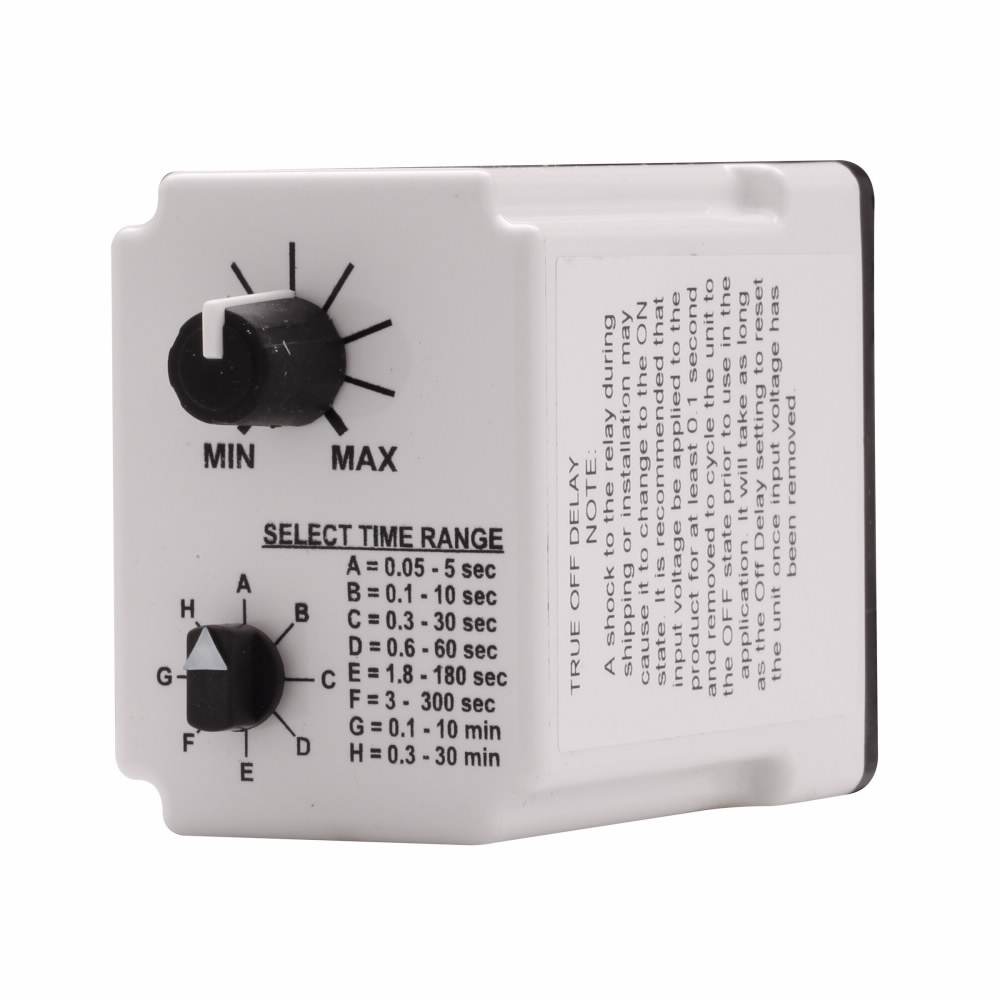

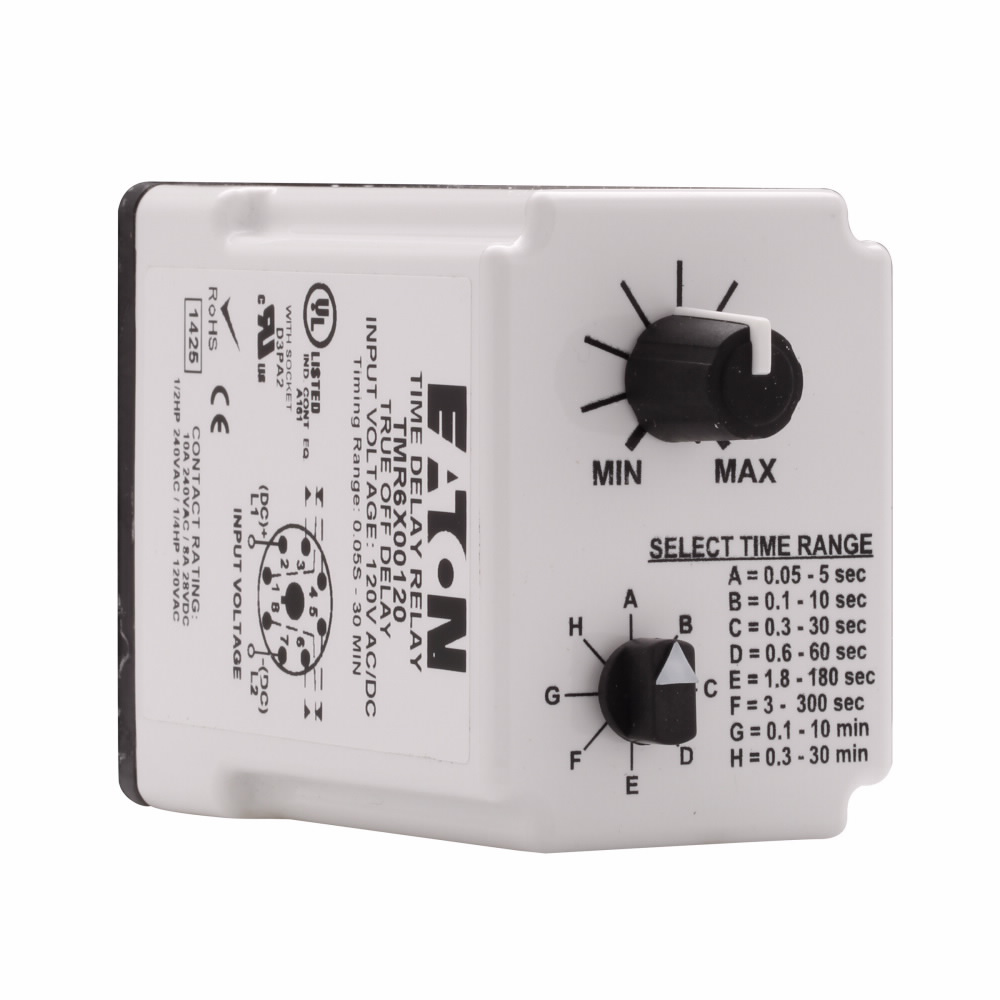

TMR6 Series Time Delay Relays by Eaton - Programmable Time Delay Electrical Control
The TMR6 Series Time Delay Relay is a programmable true OFF delay relay designed for precise timing control in electrical applications. Featuring octal style terminals with 8 pins and a DPDT (Double Pole Double Throw) contact configuration, this relay operates at 24 volts AC/DC input voltage. It is suitable for use in industrial control systems, wire and cable assemblies, and switchgear supplied by electrical distributors requiring reliable timing solutions.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: TMR6X0024
- Input Voltage: 24 volts
- Contact Configuration: DPDT
- Dimensions (L x W x H): 3.5 in x 1.7 in x 2.4 in
- Product Weight: 0.3 lbs
- Terminal Style: Octal, 8 pins
Features
- True OFF delay timing function
- Programmable time delay for flexible application control
- Compact octal style terminal design for easy installation
- Double Pole Double Throw (DPDT) contact configuration for versatile switching
- Compatible with 24 Vac/dc input voltage systems
