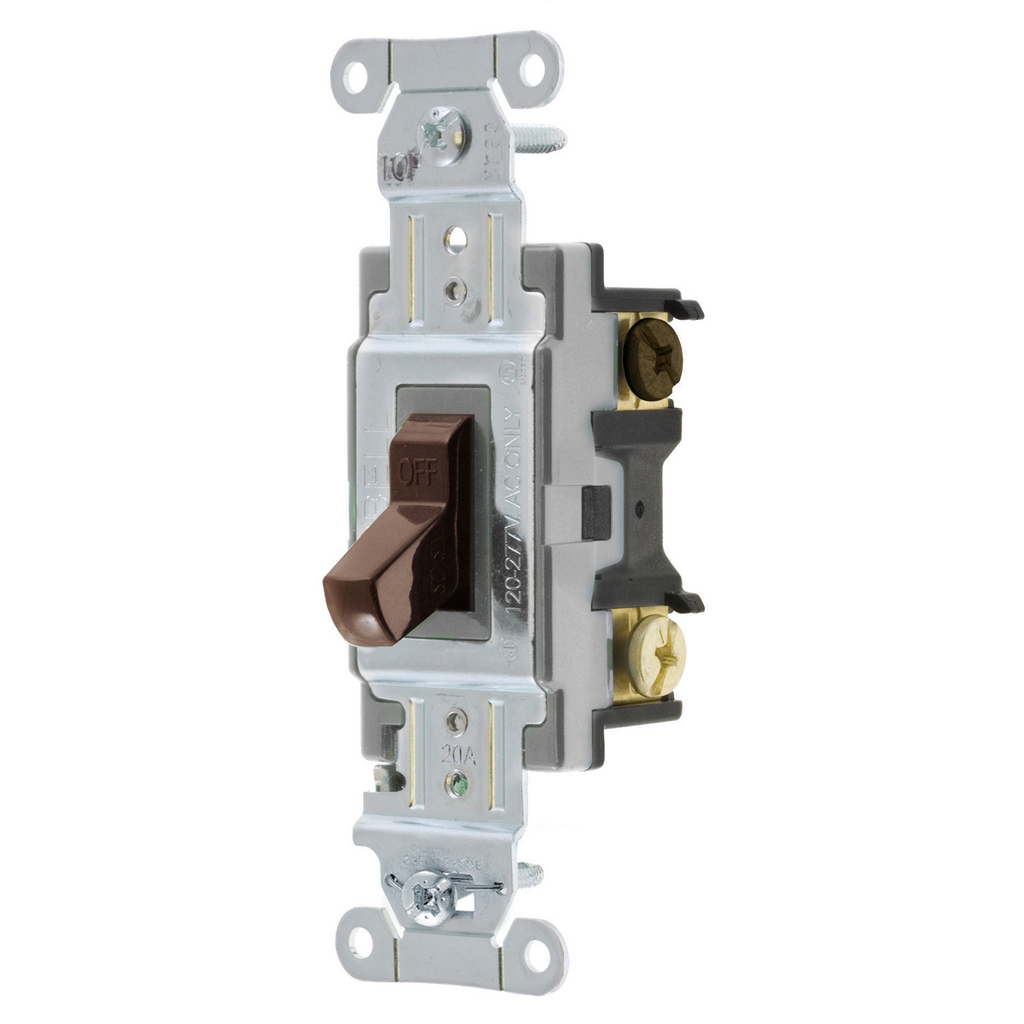

Three-Way Toggle Switch 20A 120/277V - Commercial Grade Electrical Switch

This Three-Way Toggle Switch is designed for commercial spec grade applications, providing reliable switching control for lighting and electrical systems. It is suitable for use by electrical distributors and lighting solutions providers requiring robust and compliant wire and cable components. The switch supports 20 amperes at 120/277 volts AC and is side wired for secure connections, making it an ideal choice for commercial indoor dry environments.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: CS320
• Application: Commercial Spec Grade
• Current Rating: 20 amperes
• Voltage Rating: 120/277V AC
• Action: SPDT (Single Pole Double Throw)
• Contact Configuration: Two Position
• Number of Poles: Single Pole
• Contact Rating: Per UL 20
• Operating Cycles: 50,000 Cycles
• Connection Type: Side Wired Only
• Mounting: Screw Mount
• Material: Nylon
• Color: Brown
• Width: 1.9 in
• Environmental Conditions: Indoor Dry unless protected by additional means
• Product Weight: 0.1500 lbs
• Country of Origin: China

Features

• Commercial grade construction ensures durability and reliability in demanding electrical installations
• Side wired terminals provide secure and easy wiring connections
• Designed for single pole, three-way switching applications
• Complies with UL standards for safety and performance
• Suitable for use in indoor dry environments, meeting commercial electrical distributor requirements

Downloads & Links

• CS320 AutoCAD Drawing
• Sales Drawing Asset Reference
• Warranty Document Asset Reference
• Spec Sheet
• Catalog Page Asset Reference
• Catalog Full Asset Reference
