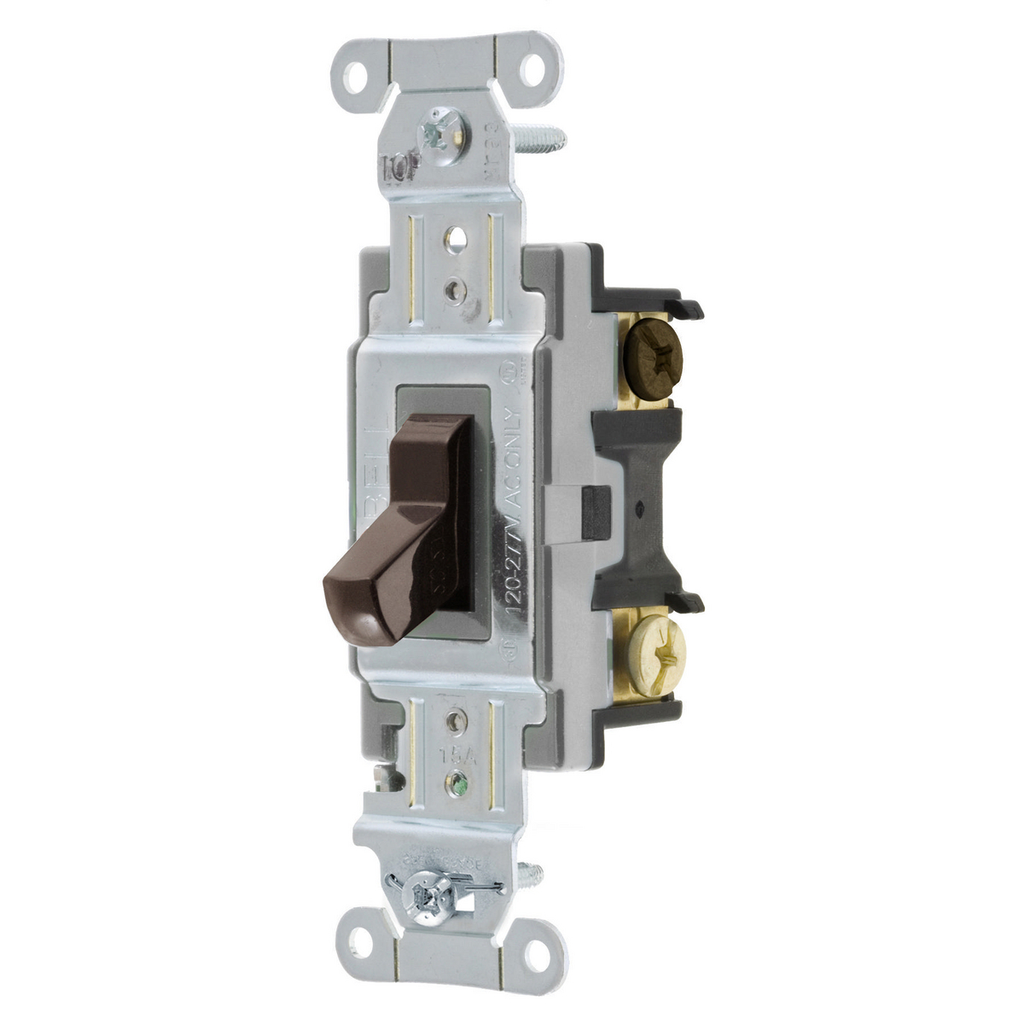

Three-Way Toggle Switch 15A 120/277V - Commercial Grade Electrical Switch

This three-way toggle switch is designed for commercial specification grade applications, suitable for indoor dry environments unless additional protection is provided. It offers reliable switching for lighting solutions and electrical distribution systems, supporting 15 amperes at 120/277 volts AC. Ideal for use by electrical distributors and switchgear suppliers requiring durable and compliant wire and cable components.

Specifications

• Application: Commercial Spec Grade
• Current Rating: 15 amperes
• Voltage Rating: 120/277V AC
• Action: SPDT (Single Pole Double Throw)
• Number of Poles: Single Pole
• Contact Configuration: Two Position
• Connection Type: Back and Side Wired
• Mounting: Screw Mount
• Material: Nylon toggle, thermoplastic base and top housing
• Color: Brown
• Width: 1.9 in
• Operating Cycles: 50,000 cycles
• Contact Rating: Per UL 20
• Environmental Conditions: Indoor dry unless protected by additional means
• Manufacturer: Hubbell Wiring Device-Kellems
• Country of Origin: China

Features

• Thread cleaning captive mounting screw for secure installation
• Abuse resistant nylon toggle for durability
• Steel, zinc plated mounting bridge offers corrosion resistance
• UL Listed and CSA Certified for safety compliance
• Dielectric voltage withstands 1500V AC minimum for 1 minute
• Maximum continuous current of 15A with 277V AC maximum working voltage
• Terminal accommodations support #14 AWG to #10 AWG solid and stranded copper wire
• Flammability rating UL 94V-2
• Temperature rise limited to 30°C maximum at rated current
