Three Element Meter, 277/480V, 3PH, 4W, Line-to-Line, 200:0.1A ratio, Max 200A, Indoor Surface Mount Enclosure. METER ONLY. Requires (3) 200A Current Transformers, Electric Meter: Yes, Title 24 compliant, ASHRAE 90.1 compliant
SKU: #12102
Part: #2N480-21
UPC: 078477545256
Three Element Meter, 277/480V, 3PH, 4W, Line-to-Line, 200:0.1A ratio, Max 200A, Indoor Surface Mount Enclosure. METER ONLY. Requires (3) 200A Current Transformers, Electric Meter: Yes, Title 24 compliant, ASHRAE 90.1 compliant
SKU: #12102
Part: #2N480-21
UPC: 078477545256
Description
Three Element Meter, 277/480V, 3PH, 4W, Line-to-Line, 200:0.1A ratio, Max 200A – Electrical Meter for Precise Power Monitoring

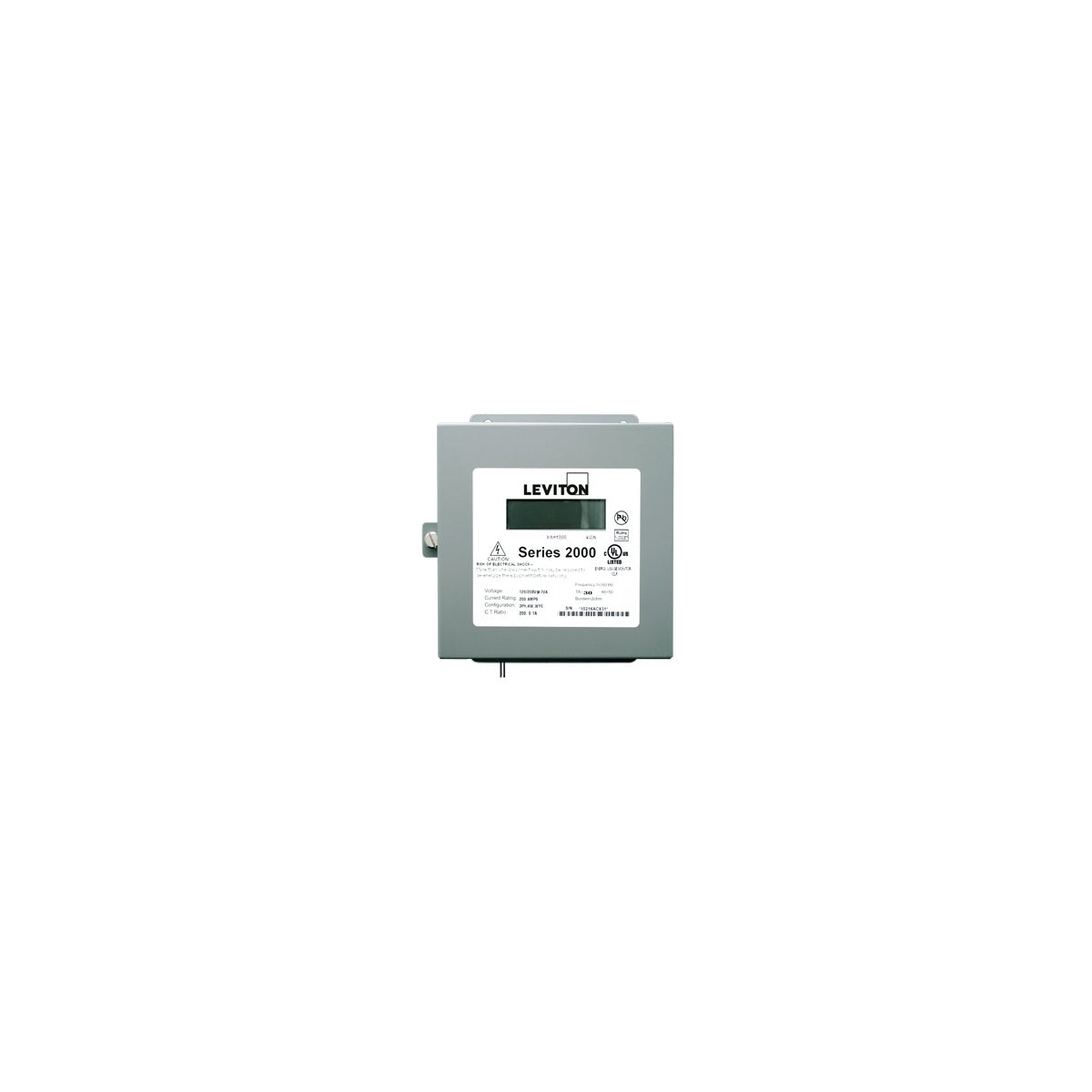

The Leviton Three Element Meter (Model 12102) is a revenue-grade, 3-phase, 4-wire electronic kilowatt-hour (kWh) meter designed for permanent connection to electrical services in commercial, institutional, industrial, and government applications. This meter is intended for use with 277/480V line-to-line voltage configurations and supports a maximum current rating of 200 amperes. It requires three 200A current transformers (CTs) for accurate measurement and is housed in an indoor surface mount enclosure (NEMA 1). The meter provides pulse output communication, making it suitable for integration with automated meter reading (AMR) systems. It complies with Title 24 and ASHRAE 90.1 energy efficiency standards, supporting load profiling, tenant cost allocation, and energy conservation initiatives.
Specifications
- Manufacturer: Leviton
- Model Number: 2N480-21
- Voltage: 277/480V, 3-Phase, 4-Wire
- Current Rating: 200 amperes
- Configuration: 3PH, 4W, Line-to-Line
- Current Transformer Ratio: 200:0.1A
- Enclosure Type: Indoor (NEMA 1) Surface Mount
- Communication Type: Pulse Output
- Accuracy: Revenue-grade, ±0.5% at 1.0 power factor (with solid core CTs)
- Operating Frequency: 60 Hz
- Operating Temperature Range: Meter -30 to 60°C, Display -20 to 50°C
- UL/cUL Listed for UL 916 Energy Monitoring Equipment
- Weight: 3.5 lbs
- UPC: 078477545256
Features
- Revenue-grade accuracy using solid core current transformers certified to ANSI standards
- Compatible with both solid core and split core CTs for flexible installation
- Isolated pulse output channel for AMR integration and energy management systems
- Large LCD display for kWh and optional demand readings
- Reverse phase indicator LED for installation diagnostics
- Load indicator LED verifies meter functionality
- Color-coded CT labels for easy and correct wiring
- Approved for California Weights & Measures and compliant with Title 24 and ASHRAE 90.1
- Surface mount industrial grade steel enclosure suitable for indoor installation
- Supports up to three sets of CTs per phase in parallel without requiring a meter multiplier
- Five-year manufacturer warranty
