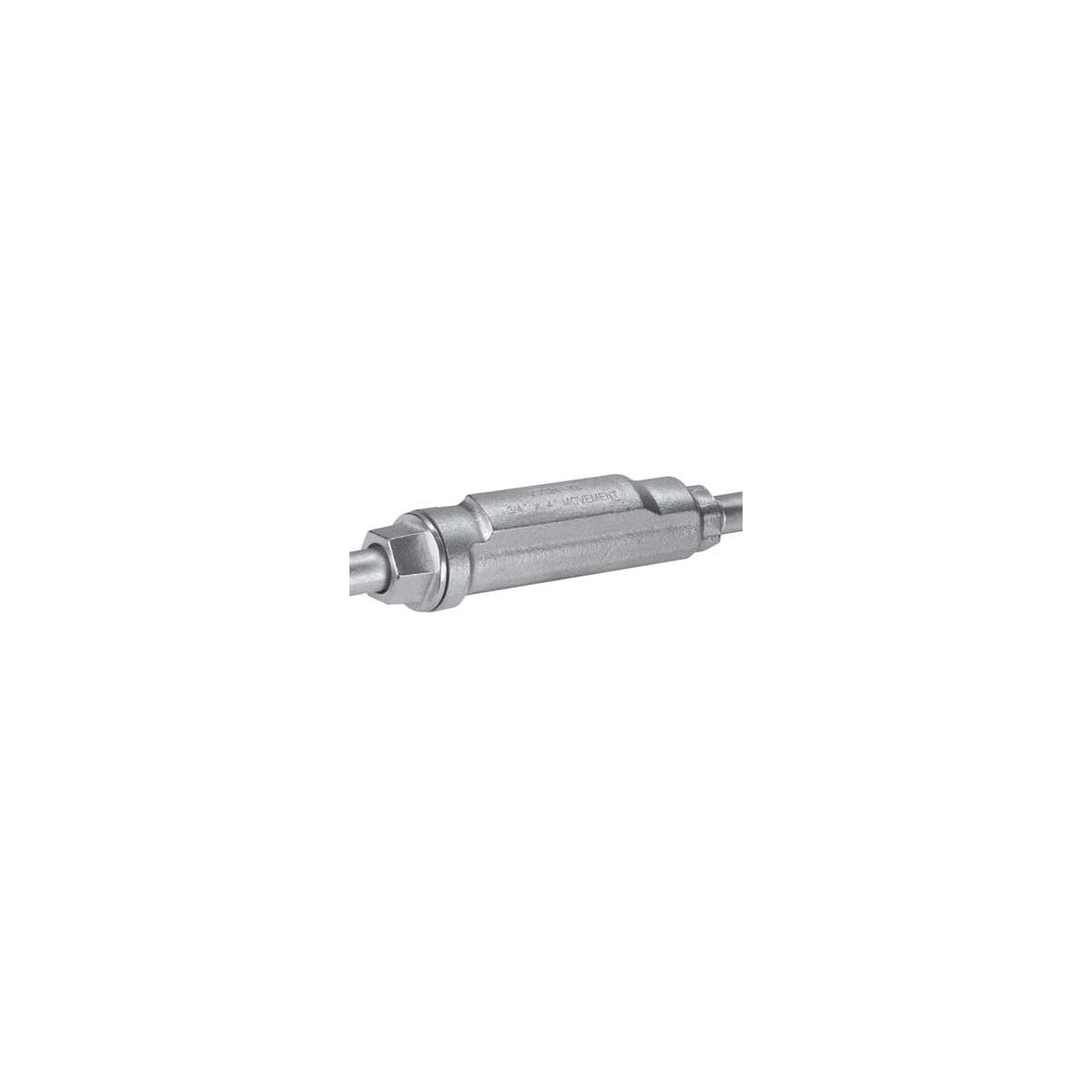

THOMAS XJG24-TB 3/4 EXP CPLG 4 IN MOVEMENT Conduit Expansion Coupling

The THOMAS XJG24-TB is a 3/4 inch conduit expansion coupling designed to allow for the contraction and expansion of a conduit run without reducing the mechanical or bonding integrity of the raceway. This fitting is suitable for rigid steel or intermediate metal conduit applications, providing a reliable solution for electrical distributors and switchgear suppliers requiring expansion couplings that maintain electrical continuity and mechanical strength.

Specifications

• Material: Malleable Iron
• Length: 10 in
• Outside Diameter: 2.43 in
• Movement: 4 in
• Internal Bonding Jumper: Copper braid (tinned)
• Packing Material: PTFE/Synthetic Fiber
• UPC: 786210880822

Features

• Allows contraction and expansion of conduit runs without compromising mechanical or bonding integrity
• Constructed from malleable iron with zinc plating for corrosion protection
• Internal bonding jumper sized to meet UL fault current test requirements and NEC Article 250.98 bonding requirements
• No disassembly required during installation
• Creates a raintight seal with compression of Teflon packing via gland nut
• Eliminates need for external bonding jumper
