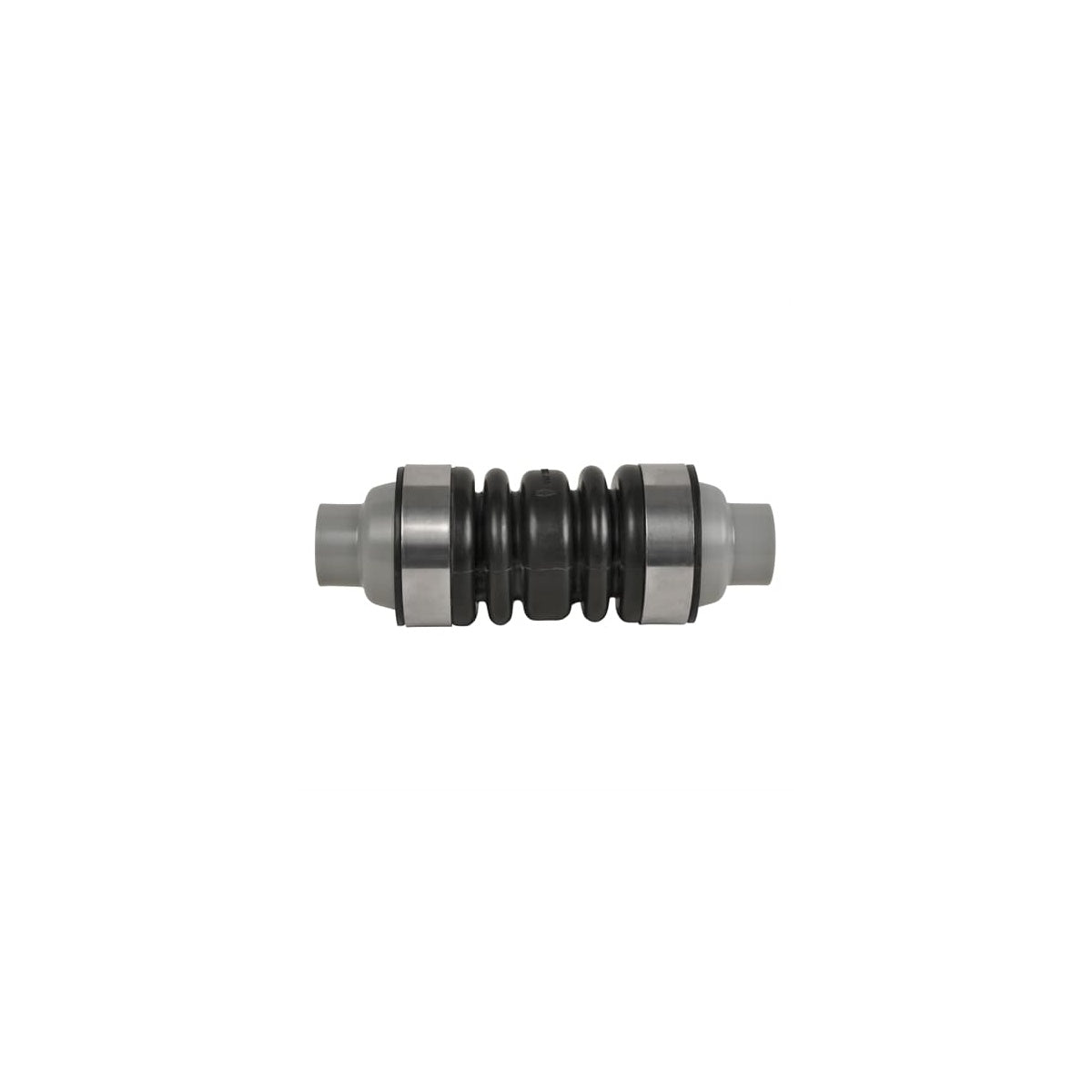

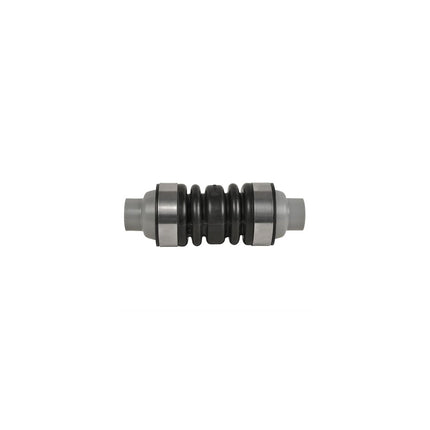

THOMAS XD6NM-TB 2 IN PVC EXP/DEFL COUPLING - Expansion/Deflection Coupling

The THOMAS XD6NM-TB is a 2-inch non-metallic expansion/deflection coupling designed for joining two rigid PVC conduit runs where movement at structural joints is required. It provides a flexible connection capable of accommodating axial, parallel, and angular deflection, making it suitable for use in bridges, tunnels, inter-building walkways, docks, piers, and wastewater and water treatment facilities. This product is ideal for electrical distributors and switchgear suppliers seeking reliable conduit coupling solutions compliant with NEC standards.

Specifications

• Material: PVC
• Trade Size: 2 inches
• Dimension A (Length): 9.14 in
• Dimension B (Diameter): 4.34 in
• Product Weight: 2.69 lbs
• UPC: 786209844170
• Application: Bridges, Tunnels, Inter-Building Walkways, Docks and Piers, Wastewater and Water Treatment Facilities
• Manufacturer Part #: XD6NM-TB

Features

• Flexible neoprene outer jacket with tamper-proof stainless steel straps for superior protection and corrosion resistance in wet locations
• Inner sleeve provides a constant, smooth inner diameter to ease wire pulling and prevent insulation damage

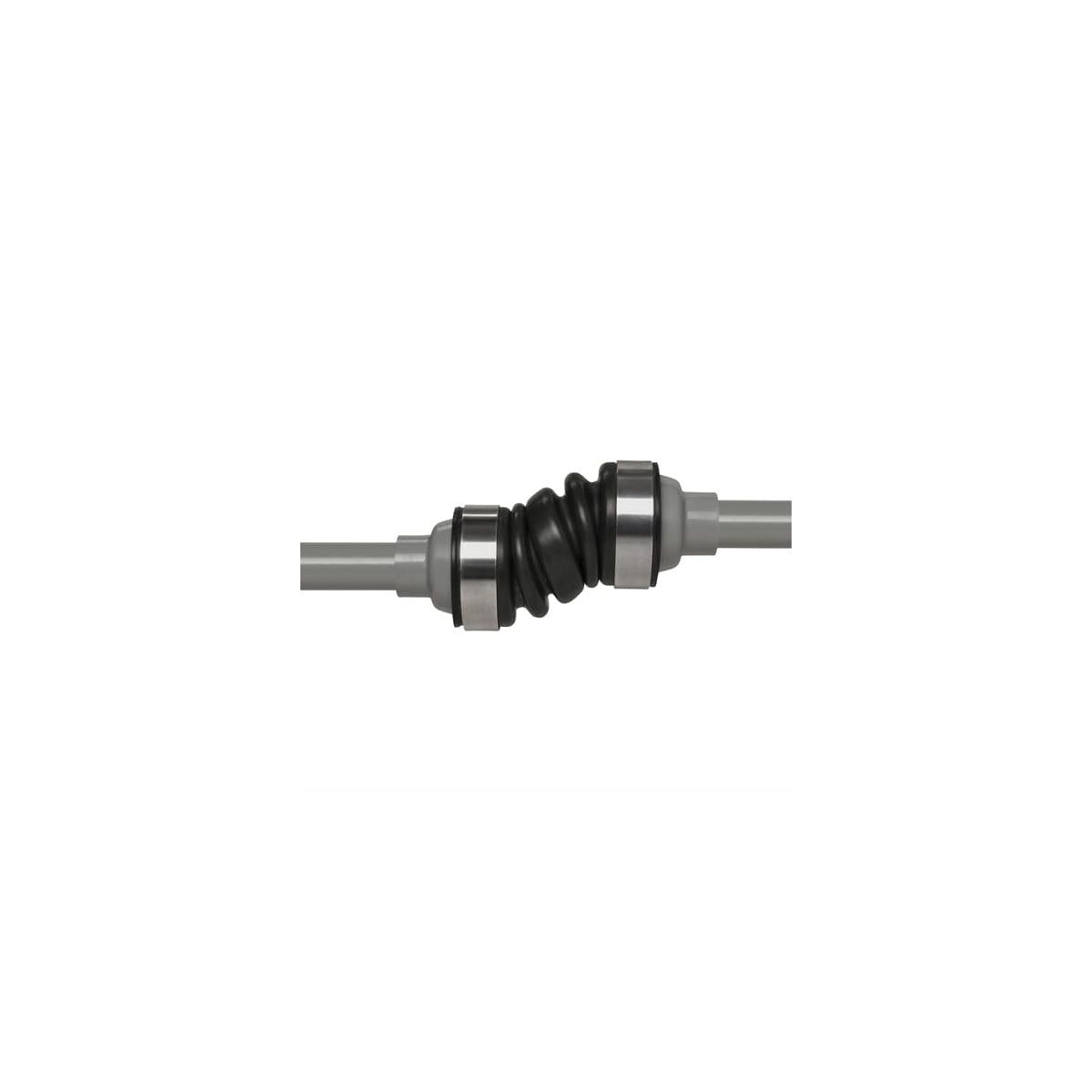

• Accommodates axial or parallel deflection up to ¬æ inch and angular deflection up to 30¬∞ from relaxed position
• Meets National Electrical Code (NEC) Article 300.4(H) requirements for expansion, contraction, or deflection at structural joints
• Suitable for indoor, outdoor, direct burial, or embedded concrete applications
• Compatible with Schedule 40 and Schedule 80 rigid PVC conduit and fiberglass raceways (different adhesive required)
• UV resistant and patent pending design
• cULus listed and CSA certified to CSA C22.2 No. 85
