THOMAS & BETTS STE350 AL EXT FTG- TECK CABLE- 3 1/2 IN
SKU: #404728
Part: #STE350
UPC: 786210996905
THOMAS & BETTS STE350 AL EXT FTG- TECK CABLE- 3 1/2 IN
SKU: #404728
Part: #STE350
UPC: 786210996905
Description

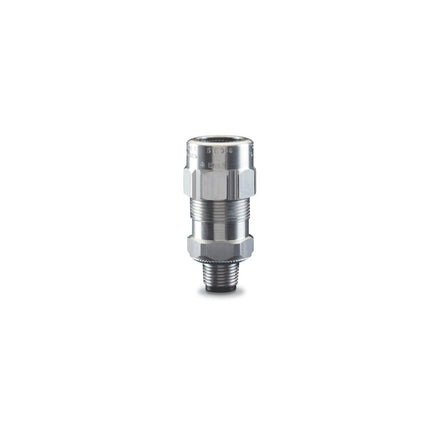

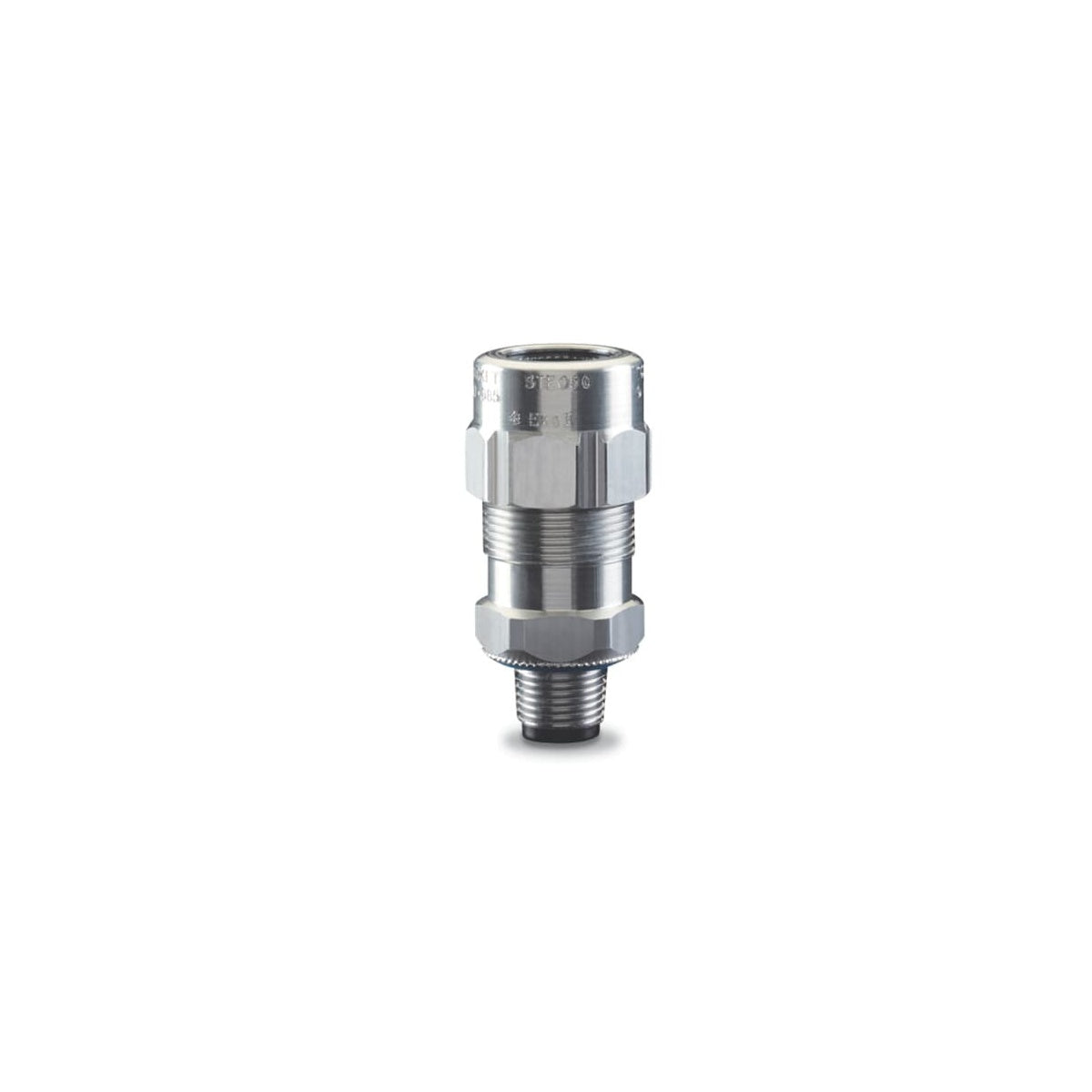

THOMAS & BETTS STE350 Aluminum Extended Fitting for Teck Cable – 3 1/2 Inch
The Thomas & Betts STE350 is a Star Teck Extreme aluminum jacketed cable fitting designed for secure termination of Teck and ACWU cables. This fitting features a 3-1/2 inch hub size and accommodates cable jackets ranging from 3.220 to 3.870 inches in diameter. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable fittings for industrial and commercial lighting solutions and electrical installations.
Specifications
- Material: Aluminum
- Color: Silver
- Hub Size: 3-1/2 inches
- Range Over Jacket Diameter: 3.220 – 3.870 inches
- Product Weight: 9.5 lbs
- Manufacturer Part Number: STE350
- UPC: 786210996905
Features
- Designed to accommodate a broad range of cable diameters with overlapping hub sizes to minimize mismatched fittings
- Constructed with durable aluminum for corrosion resistance and long service life
- Certified for hazardous locations including CSA Type HLA Class II, Divisions 1 and 2, Groups E, F, and G
- UL listed for metal-clad cable, Type 6P
- Includes elastomer sealing components and grounding ring for secure cable termination
